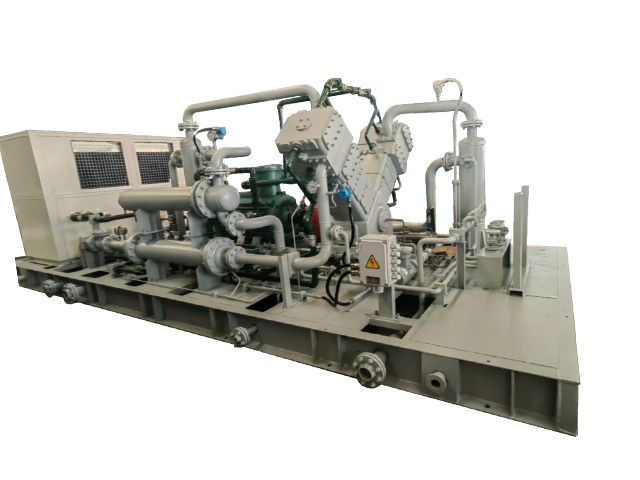

Product Description: VWD-4.65(0.5~5)-12 Associated Gas High-efficiency Compressor
The VWD-4.65(0.5~5)-12 Associated Gas Compressor is an advanced, oil-free, water-cooled reciprocating compression system, specifically engineered for efficient recovery and utilization of associated gas in harsh and cold environments. Featuring a rated flow capacity of 4.65 m³/min and working pressure from 0.05 MPa to 1.2 MPa, the unit delivers stable performance in demanding field conditions.

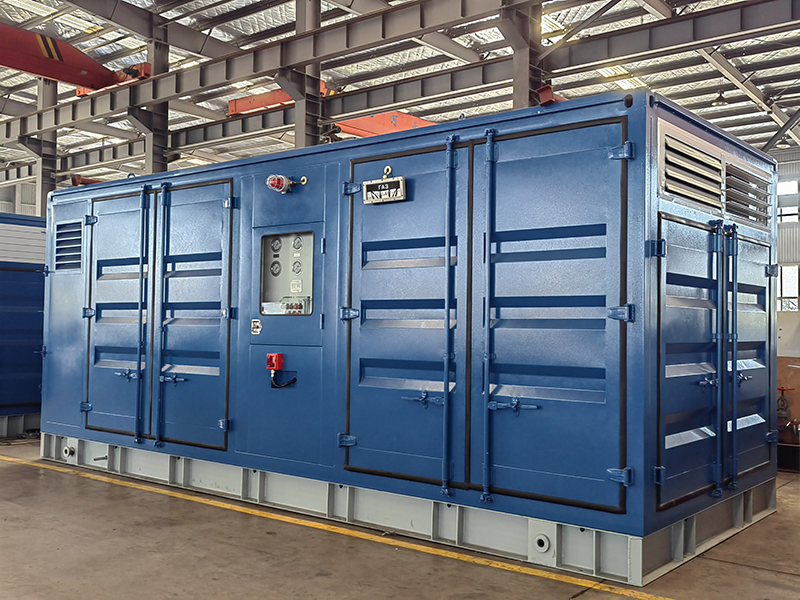

A standout feature of this model is its integrated acoustic enclosure, which reduces operational noise and provides additional thermal insulation—ideal for outdoor deployment in frigid climates. The enclosure is equipped with a fire protection system, forced ventilation, gas concentration detection, and internal heating, offering a comprehensive safety and environmental control package.
Designed for easy installation, the compressor is mounted on a reinforced skid base and supports quick connection to gas pipelines and control systems. The oil-free design ensures zero hydrocarbon contamination, making it well-suited for reinjection, fuel supply, or power generation purposes. Intelligent control via PLC interface allows remote monitoring, fault diagnosis, and system optimization.
Key Features:
Capacity: 4.65 m³/min
Inlet pressure: 0.05 MPa
Discharge pressure: 1.2 MPa
Acoustic enclosure with heating and fire safety system
Gas detection and automatic ventilation

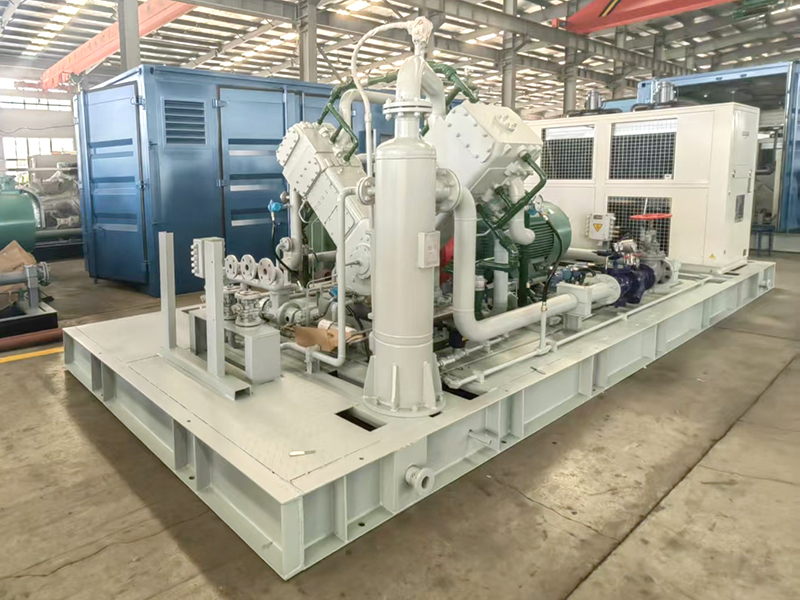

Skid-mounted, plug-and-play layout
Designed for low-temperature, outdoor operation
