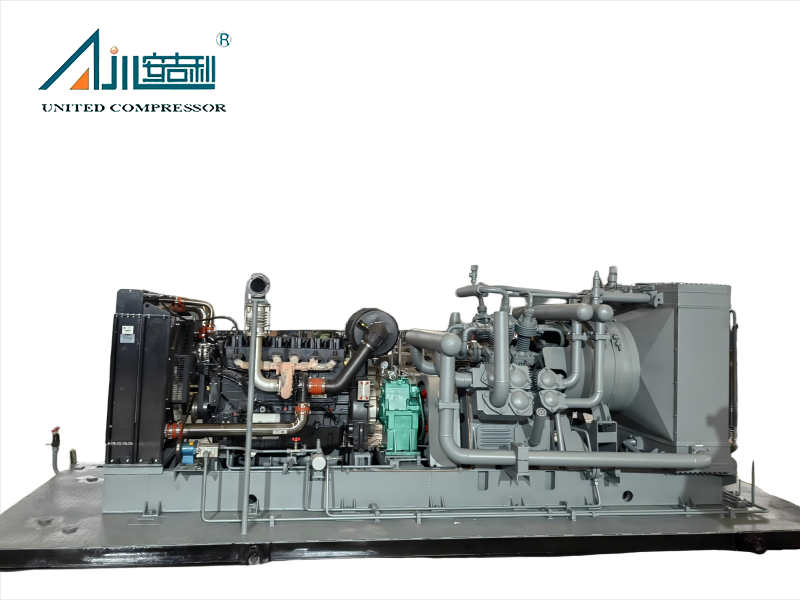

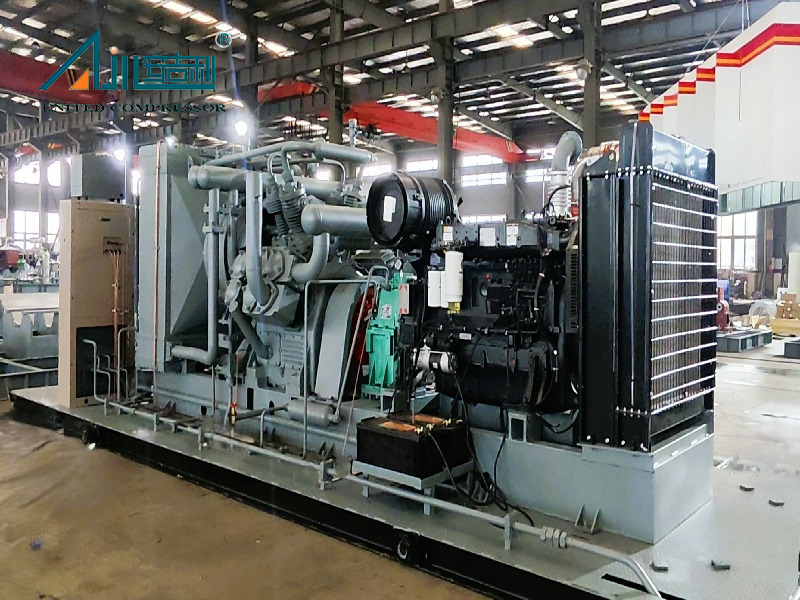

The SF-10/250 skid-mounted air compressor is a high-performance industrial solution engineered for demanding high-pressure air supply applications. Designed with precision engineering and advanced cooling technology, it delivers stable, reliable, and efficient performance in complex and harsh industrial environments — making it ideal for projects that require continuous and consistent high-pressure air sources.
High-Pressure Capability: Provides an exhaust pressure of 25 MPa.G, meeting the operational needs of pipeline testing, pigging, gas lifting, and other high-pressure engineering tasks.
Flexible Operation: Adjustable pressure control allows operators to fine-tune settings based on project requirements, ensuring versatility and energy efficiency.
Robust Performance: Driven by a 145 kW motor, the system ensures powerful output and stable operation even during long-term, continuous workloads.
High Volume Flow: Processes 10 m³/min of 100% pure air, making it suitable for medium to large-scale industrial operations.
Plug-and-Play Design: Operates at atmospheric inlet pressure and temperature, reducing the need for additional pre-treatment equipment and simplifying on-site installation and operation.
The SF-10/250 compressor is widely used across industries, including:
Pipeline pressure testing and pigging
Gas lift operations in oilfield development
Industrial projects requiring high-volume air at pressures ≤25 MPa
Other engineering applications and industrial sectors that demand stable, high-pressure compressed air.
Equipped with a full air-cooled design, the SF-10/250 ensures efficient heat dissipation for both the cooler and the compressor cylinders.
The cooling assembly features a high-speed fan (1980 r/min), cooler, and protective air duct cover.
The fan drive uses a belt-driven system for reliable power transmission, with easy tension adjustments for stable operation.
Key components are equipped with straight-through pressure grease cups for easy maintenance using No.4 calcium-based grease, ensuring smooth operation of all moving parts.
The SF-10/250 excels in efficiency, durability, and adaptability:
Energy Efficiency: Optimized compression technology and power matching balance energy use and output. While delivering 10 m³/min air flow and up to 25 MPa.G exhaust pressure, it reduces long-term energy costs by 8–12% compared with similar models.
Durability: Critical components are made with premium, wear-resistant materials. Cylinders use heat-resistant gray cast iron, while the forged steel crankshaft provides exceptional tensile strength, ensuring stability during high-speed operations.
Dual-Lubrication System: Combines pressure lubrication for high-load components (such as connecting rod bearings and piston pins) with splash lubrication for cylinder walls and main bearings. This dual system extends service life by 30% compared to single-lubrication systems while reducing oil change frequency and maintenance downtime.
Easy Installation: The integrated skid-mounted design eliminates complex on-site assembly. Only simple pipe and electrical connections are required, enabling commissioning within 4–6 hours and saving time and labor costs.
Mobility: Compact dimensions allow for easy transportation via road, rail, or container shipment, meeting the mobility requirements of projects in oilfields, construction sites, and other demanding environments.
Highlight Advantages
 |  |  |  |
| Has high efficiency, strong reliability, and high degree of automation; | Less vulnerable parts, low vibration, low noise, and easy operation and maintenance | The main and auxiliary equipment of the compressor are all installed on the sled, running smoothly and reliably. The overall sled installation is convenient for the transportation and installation of the compressor | The entire machine components are carefully designed |
Patent Certificates
 | A piston rod thread protective sleeve ZL 2017 2 1907021.7 | | A piston ring support device ZL 2018 2 0294776.2 | |
| A range piston ZL 2017 2 190177.0 for symmetrical balanced compressors | | Integrated long short double compartment ZL 2018 2 0294762.0 |

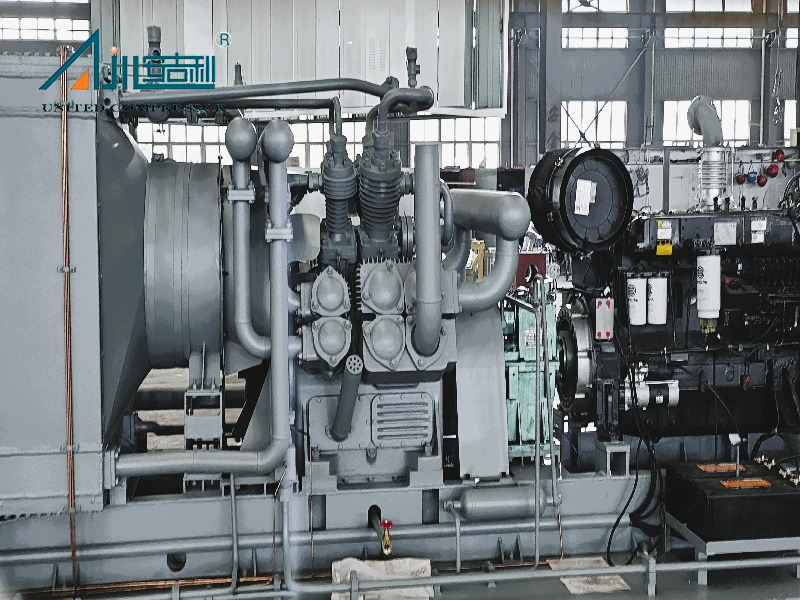

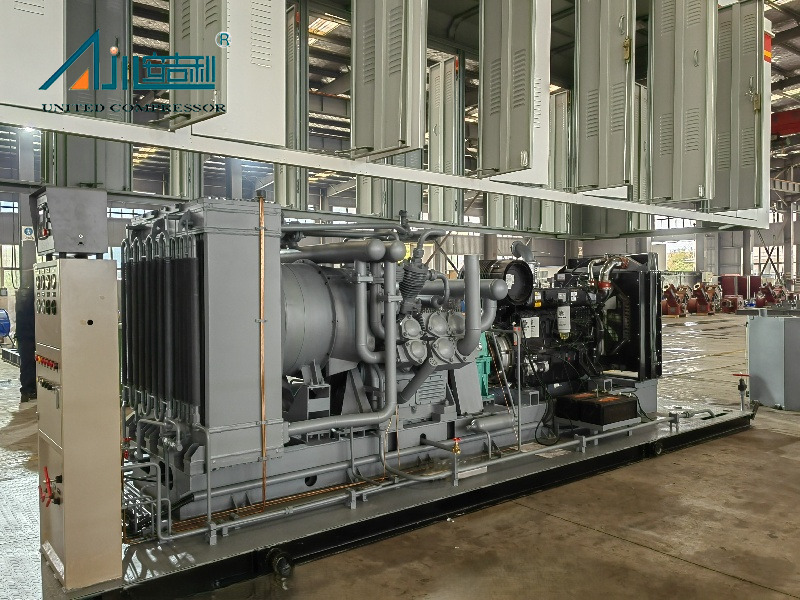

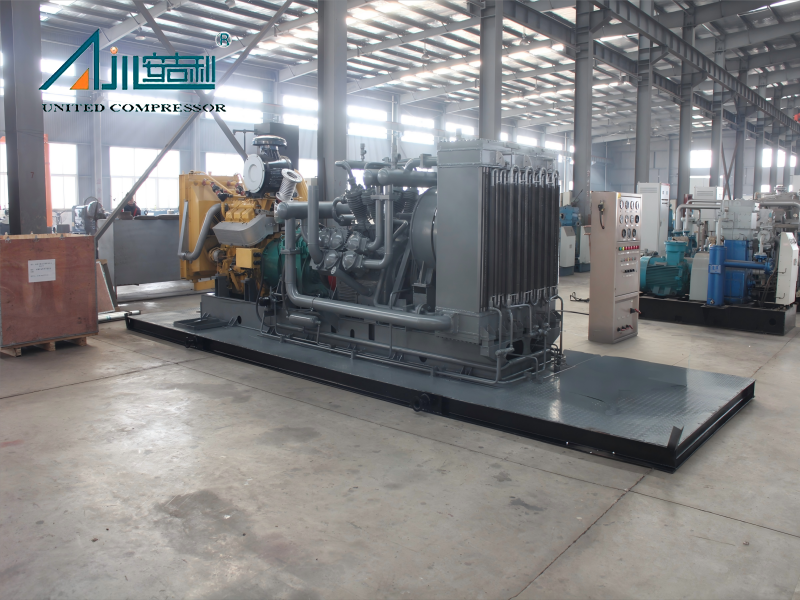

Whole Machine Description
All core components—including the compressor unit, coupling, 145 kW Y315M2-6 main motor, Y100L1-4 oil pump motor, piping system, control instruments, electrical systems, and auxiliary devices—are pre-installed on a unified skid base. This compact, balanced layout ensures high load-bearing capacity, minimizes vibration-related displacement during operation, and enhances overall structural stability.
To further improve operational reliability, the unit adopts a dedicated full air-cooling system. The cooling assembly—comprising a high-efficiency fan, multi-channel cooler, and enclosed air duct cover—ensures efficient heat dissipation for both the cooler and compressor cylinders. The fan, driven by the compressor crankshaft via a belt at 1980 r/min, features an adjustable tension system to maintain consistent belt tightness for stable power transmission and optimal cooling performance.
For lubrication, straight-through pressure grease cups are installed on the tension pulley, gland, and fan pulley housing, allowing easy injection of No. 4 calcium-based grease to keep moving parts smoothly lubricated and prevent wear caused by dry friction.
A key structural advantage is the independent cylinder protection design, which isolates the cylinder from the lubrication system. This prevents oil contamination of the compressed air—an essential feature for oil-sensitive operations, such as pipeline pressure testing and gas lift applications.
The high-strength gray cast iron crankcase serves dual functions:
Acting as a sealed oil reservoir for stable lubrication supply
Offering convenient maintenance access with side inspection ports, a real-time oil level gauge, and a breather-equipped filler port to balance pressure and prevent leaks.
This thoughtful design significantly simplifies daily maintenance and enhances equipment uptime.
 |  |

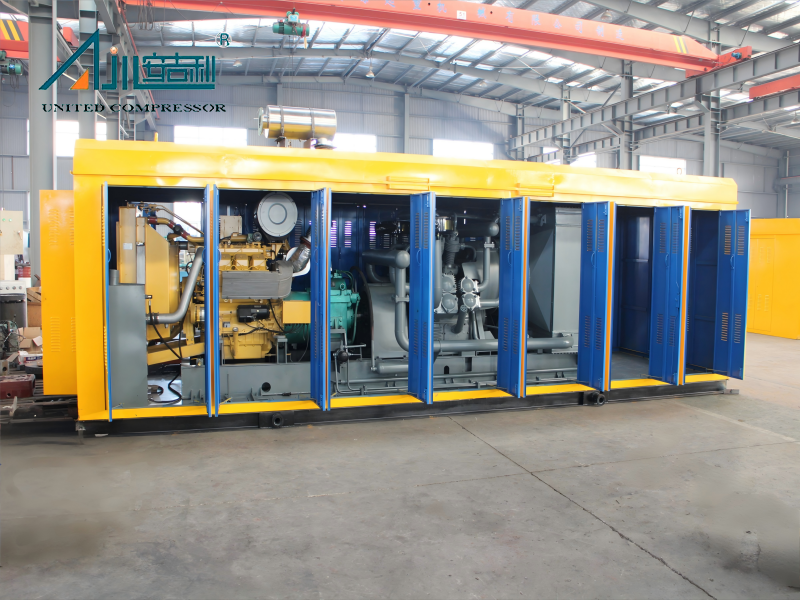

The compressor in this picture is a non-standard product. The product provides independent solutions tailored to customers' specific usage requirements (flow rate/purity/pressure, usage environment, main purpose, and customer specific requirements), from design to product customization.
Structural form: D-type/M-type/S-type/W-type/V-type/Z-type
Cooling method: water cooling/air cooling/mixed cooling
Installation form: fixed/mobile/pry mounted/cabin type
Drive mode: motor drive/diesel engine start
Transportation: sea/air/land
Packaging:
 |  |  |
| Metal cabin | Wooden box | Soundproof cabin |
Project Case
 |  |  |
| Lanzhou petrochemical company 240000 tonsyear ethylene production capacity restoration - adding butadiene and 1-butene unloading facilities project | Alibek oilfield in Southern Kazakhstan | Procurement of Molecular Sieve Dehydration, Ethylene Glycol Regeneration and Injection Device, and Fuel Gas Skid in Akimom Gas Field |
Technical Parameter
| No. | Model | Medium | Flow rate (Nm3/h) | Inlet pressure (MPa.G) | Exhaust pressure (MPa.G) | Speed (r/min) | Motor power (kW) | Cooling method | Overall dimensions (mm) | Weights (kg) |
| 1 | SF-10/250 | Air | 600 | Atmospheric | 25.0 | 1330 | 258.5 (Diesel) | Air-cooled | 7000*2200*2200 | 8500 |
| 2 | SF-10/150 | Air | 600 | Atmospheric | 15.0 | 1330 | 258.5 (Diesel) | Air-cooled | 7000*2200*2200 | 8500 |
| 3 | SF-7.5/250 | Air | 450 | Atmospheric | 25.0 | 980 | 160 (Diesel) | Air-cooled | 6500*2200*2200 | 7000 |
| 4 | SF-7.5/150 | Air | 450 | Atmospheric | 15.0 | 980 | 132 (Diesel) | Air-cooled | 6500*2200*2200 | 7000 |
| 5 | SF-8.5/250 | Air | 510 | Atmospheric | 15.0 | 980 | 200 (Diesel) | Air-cooled | 7000*2200*2200 | 8500 |

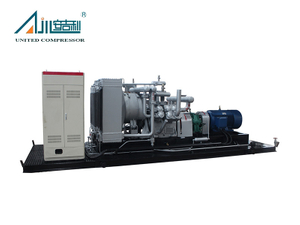

| 6 | W-10/60 | Air | 600 | Atmospheric | 6.0 | 1330 | 132 (Diesel) | Air-cooled | 6000*2200*2200 | 7000 |
Project Case
 |  |  |

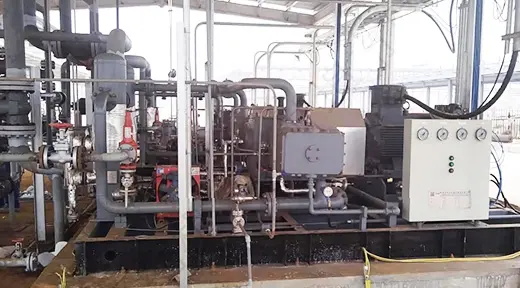

| Procurement of Molecular Sieve Dehydration, Ethylene Glycol Regeneration and Injection Device, and Fuel Gas Skid in Akimom Gas Field | Beijing Hongke Qingneng Technology Co., Ltd. associated gas compressor for Shanxi Yan'an 60000 m3 project | Zaozhuang CNG compressor project of Chengdu Shenliang Technology Co., Ltd. |

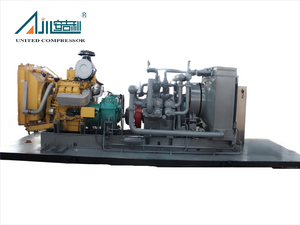

The SF-10/250 (Weichai Diesel Generator) is a highly versatile solution designed for demanding industrial environments. Its applications span petrochemicals (such as ethylene production plants), energy (including oilfield operations and gas processing), manufacturing (for high-pressure tooling), and infrastructure (such as pipeline testing and maintenance). This model has a proven track record of performance and reliability, having been successfully deployed in major projects where it consistently delivers stable, high-pressure air under complex operational conditions.
Thanks to its oil-free lubrication system and minimal wear-prone components, the SF-10/250 requires significantly less maintenance than traditional compressors. Routine inspections—such as filter replacement and oil level checks—are recommended every 3,000 operating hours, while major overhauls are typically needed only after 15,000 to 20,000 hours, depending on operational intensity and site conditions.
Yes. The SF-10/250 (Diesel Generator) is engineered for adaptability in extreme operating conditions. For high-temperature regions, it can be equipped with upgraded air-cooling systems featuring enhanced heat dissipation. In humid or corrosive environments, options such as anti-rust coatings and sealed protective cabins are available. Contact our technical team to customize a solution for your specific environmental challenges.
