Featuring a W-type reciprocating piston structure with three-stage compression, it provides stable pressure output for manufacturing, energy and process industries where high-pressure air is required.
With optimized mechanical balance and flexible installation options, the compressor can be integrated into different industrial air supply systems.
Three-Stage High Pressure Compression
The three-stage compression configuration is designed to achieve efficient pressure increase while maintaining stable airflow output.
W-Type Balanced Structure
The six-cylinder W arrangement improves mechanical balance and reduces vibration during continuous operation.
Clean Compressed Air Design
The oil-free compression structure helps prevent lubrication oil from entering the compression chamber, supporting clean air applications.
Flexible Industrial Installation
Available in skid-mounted and other configurations, the compressor can be adapted to different site conditions.
Highlight Advantages
 |  |  |  |
| Has high efficiency, strong reliability, and high degree of automation; | Less vulnerable parts, low vibration, low noise, and easy operation and maintenance | All main and auxiliary components are skid-mounted for easy transportation, installation, and reliable operation. | The entire machine components are carefully designed |
Patent Certificates
 | A piston rod thread protective sleeve ZL 2017 2 1907021.7 | | A piston ring support device ZL 2018 2 0294776.2 | |
| A range piston ZL 2017 2 190177.0 for symmetrical balanced compressors | | Integrated long short double compartment ZL 2018 2 0294762.0 |
Whole Machine Description
The W-10/60 High Pressure Air Compressor adopts a W-type six-cylinder reciprocating piston structure with three-stage compression, developed for continuous 6 MPa compressed air supply.
The balanced cylinder arrangement improves mechanical stability during operation, while the optimized compression system supports efficient high-pressure air delivery.

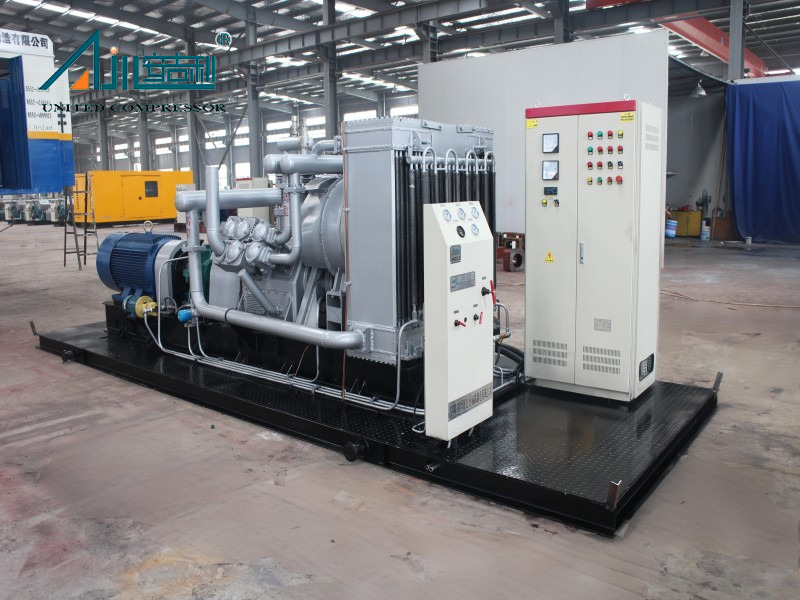

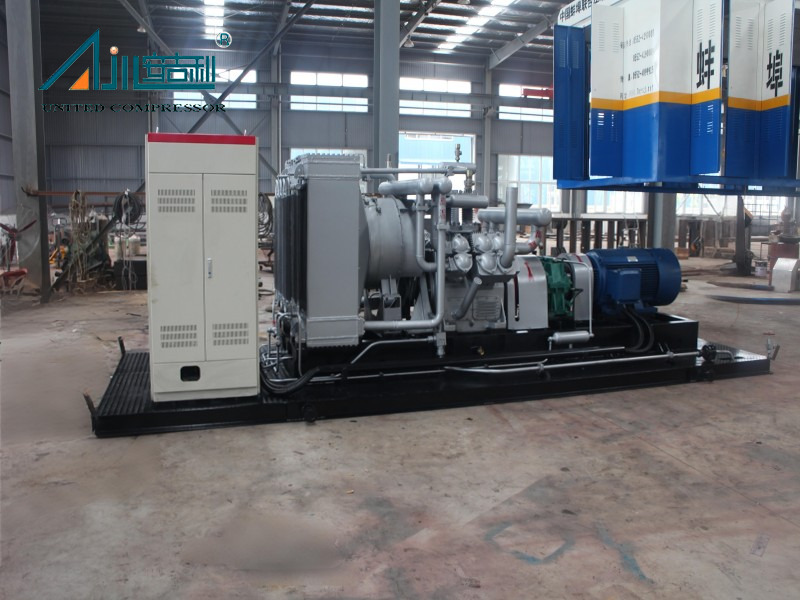

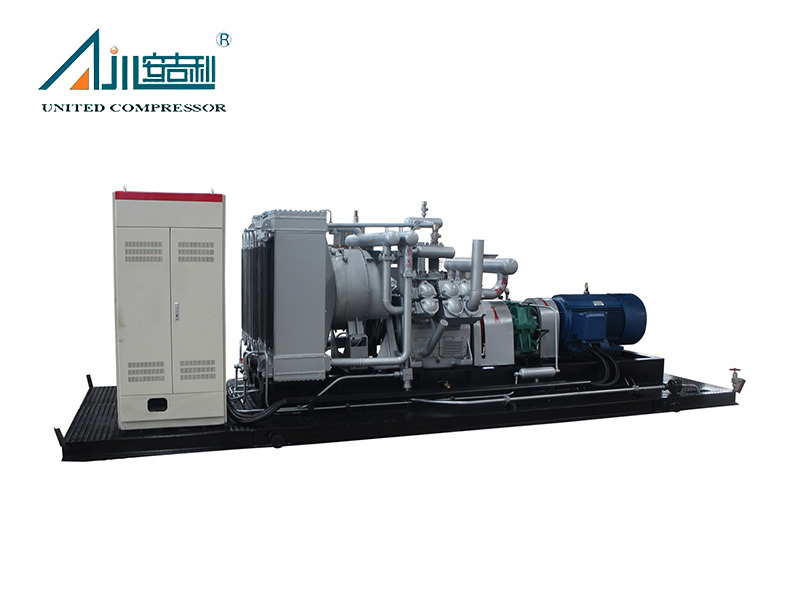

The skid-mounted unit integrates the compressor and auxiliary systems, providing a compact solution for industrial air supply applications.
 |  |
A customized non-standard compressor designed to meet specific requirements for flow rate, pressure, purity, and operating conditions.
Structural form: D-type/M-type/S-type/W-type/V-type/Z-type
Cooling method: water cooling/air cooling/mixed cooling
Installation form: fixed/mobile/pry mounted/cabin type

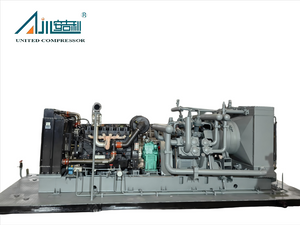

Drive mode: motor drive/diesel engine start
Transportation: sea/air/land
Packaging:
 |  |  |

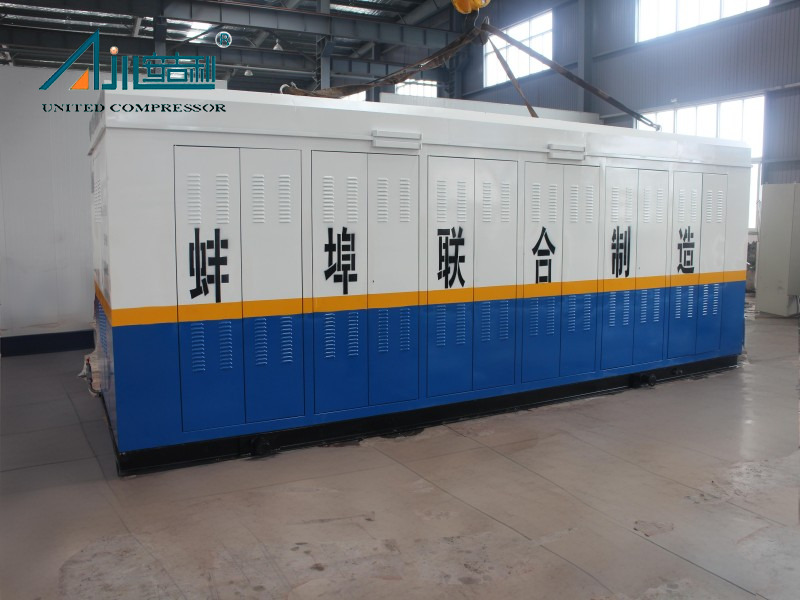

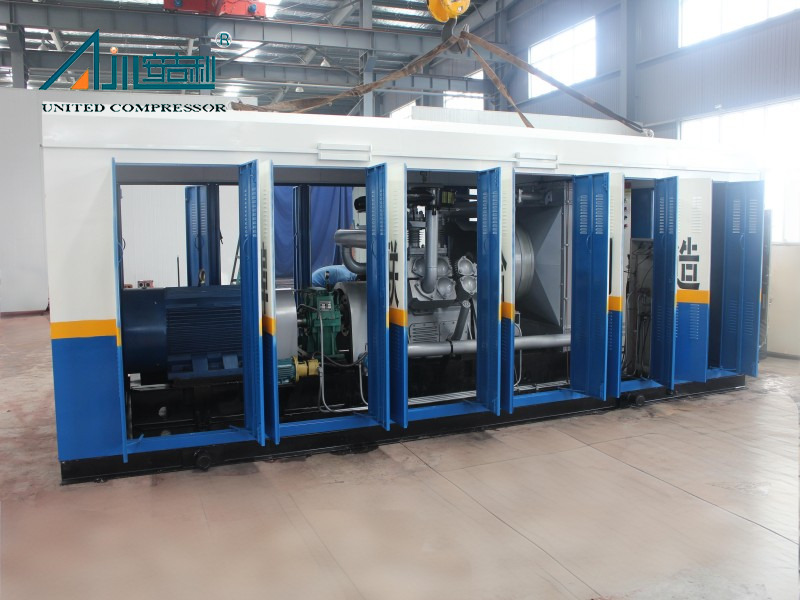

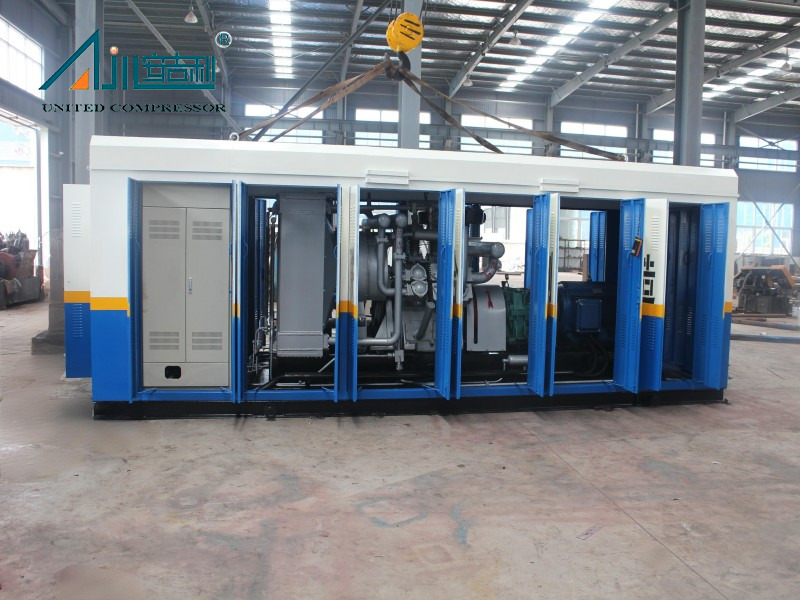

| Metal cabin | Wooden box | Soundproof cabin |
Project Case
 |  |  |
| Lanzhou petrochemical company 240000 tonsyear ethylene production capacity restoration - adding butadiene and 1-butene unloading facilities project | Alibek oilfield in Southern Kazakhstan | Procurement of Molecular Sieve Dehydration, Ethylene Glycol Regeneration and Injection Device, and Fuel Gas Skid in Akimom Gas Field |
Technical Parameter
| No. | Model | Medium | Flow rate (Nm3/h) | Inlet pressure (MPa.G) | Exhaust pressure (MPa.G) | Speed (r/min) | Motor power (kW) | Cooling method | Overall dimensions (mm) | Weights (kg) |
| 1 | SF-10/250 | Air | 600 | Atmospheric | 25.0 | 1330 | 258.5 (Diesel) | Air-cooled | 7000*2200*2200 | 8500 |
| 2 | SF-10/150 | Air | 600 | Atmospheric | 15.0 | 1330 | 258.5 (Diesel) | Air-cooled | 7000*2200*2200 | 8500 |
| 3 | SF-7.5/250 | Air | 450 | Atmospheric | 25.0 | 980 | 160 (Diesel) | Air-cooled | 6500*2200*2200 | 7000 |
| 4 | SF-7.5/150 | Air | 450 | Atmospheric | 15.0 | 980 | 132 (Diesel) | Air-cooled | 6500*2200*2200 | 7000 |
| 5 | SF-8.5/250 | Air | 510 | Atmospheric | 15.0 | 980 | 200 (Diesel) | Air-cooled | 7000*2200*2200 | 8500 |
| 6 | W-10/60 | Air | 600 | Atmospheric | 6.0 | 1330 | 132 (Diesel) | Air-cooled | 6000*2200*2200 | 7000 |
Project Case
 |  |  |
| Procurement of Molecular Sieve Dehydration, Ethylene Glycol Regeneration and Injection Device, and Fuel Gas Skid in Akimom Gas Field | Beijing Hongke Qingneng Technology Co., Ltd. associated gas compressor for Shanxi Yan'an 60000 m3 project | Zaozhuang CNG compressor project of Chengdu Shenliang Technology Co., Ltd. |
The W-10/60 high pressure air compressor is widely used in petrochemical, energy, manufacturing, and infrastructure industries. Typical applications include oilfield operations, gas processing, high-pressure tooling, and pipeline maintenance.
The W-10/60 features an oil-free lubrication design and fewer wear parts, reducing maintenance requirements. Regular inspections are recommended during operation, while service intervals depend on working conditions and usage intensity.
Yes. The W-10/60 can be customized for different operating environments, including high-temperature, humid, and corrosive conditions. Options such as enhanced cooling, anti-corrosion coating, and sealed cabins are available.
Yes. The W-10/60 includes patented designs such as piston rod protection, piston ring support, and symmetrical balance piston structures, demonstrating its reliable engineering and product innovation.
