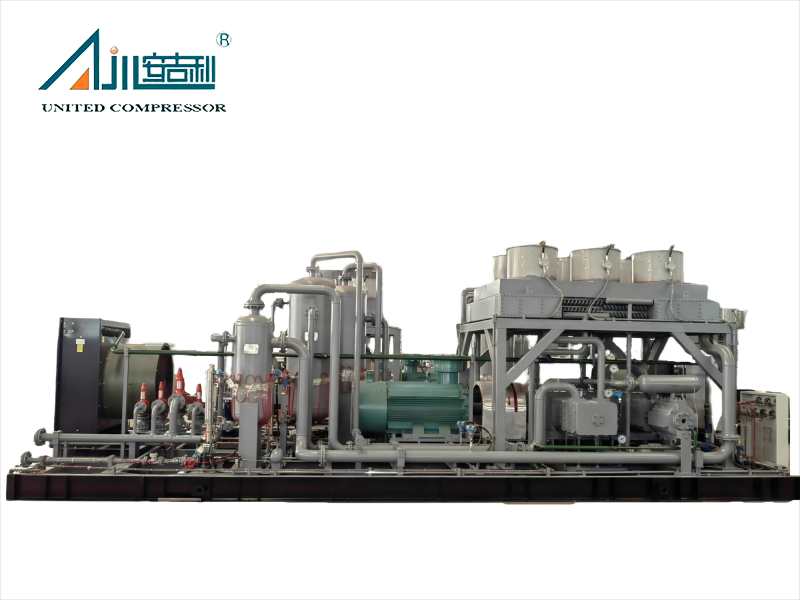

The SF-10/250 skid-mounted high-pressure air compressor is an industrial-grade reciprocating piston compressor designed for continuous and stable high-pressure air supply up to 25 MPa.G.
It is engineered for pipeline testing, pigging, gas lift operations, and other demanding industrial applications requiring reliable, oil-free compressed air.
As a factory-manufactured, skid-integrated system, the SF-10/250 offers high efficiency, fast installation, and long-term operational stability in harsh environments.
Medium: Air (100% purity)
Flow Rate: 10 m³/min (600 Nm³/h)
Inlet Condition: Atmospheric pressure & temperature
Discharge Pressure: Up to 25 MPa.G
Drive Power: 145 kW motor (diesel or electric optional)
Cooling Method: Full air-cooled design
Compression Type: Single-stage, single-acting piston compressor
Installation: Integrated skid-mounted (plug-and-play)
Designed for sustained operation at ≤25 MPa, ensuring stable output for long-duration testing and industrial processes.
All major components—including compressor, motor, piping, instrumentation, and electrical systems—are pre-installed on a single skid base, allowing commissioning within 4–6 hours with minimal on-site work.
Optimized compression design and power matching reduce long-term energy consumption by 8–12% compared with conventional models under similar operating conditions.
Heat-resistant gray cast iron cylinders
Forged steel crankshaft for high tensile strength
Low vibration and low noise operation
Designed for continuous duty in oilfields, construction sites, and industrial plants.
The SF-10/250 adopts a dedicated full air-cooling system, ensuring effective heat dissipation for both compressor cylinders and coolers:
High-speed cooling fan (1980 r/min)
Belt-driven transmission with adjustable tension
Enclosed air duct for controlled airflow
A dual lubrication system combines pressure lubrication for high-load components and splash lubrication for auxiliary parts, extending service life by approximately 30% while reducing maintenance frequency.
An independent cylinder isolation design prevents lubricating oil from entering the compression chamber.
This makes the SF-10/250 especially suitable for oil-sensitive operations, such as:
Pipeline pressure testing
Pigging operations
Gas lift systems
Industrial processes requiring clean compressed air
Pipeline pressure testing and pigging
Oilfield gas lift operations
Industrial projects requiring high-volume, high-pressure air
Infrastructure and energy engineering projects
The SF-10/250 is a custom-engineered solution, not a fixed standard model.
We provide application-specific designs based on:
Required flow rate, pressure, and air purity
Operating environment and ambient conditions
Installation type (fixed, mobile, cabin-mounted)
Drive mode (electric motor or diesel engine)
Available structural configurations include D / M / S / W / V / Z types, with air-cooled, water-cooled, or mixed cooling options.
Designed according to PED / EN standards (project-based)
Multiple patented compressor technologies
Complete factory testing before delivery
Suitable for global industrial and EPC project
Answer:
The SF-10/250 is suitable for pipeline pressure testing because it delivers stable compressed air up to 25 MPa.G, features an oil-free compression design, and operates reliably under long-duration, continuous workloads. Its skid-mounted structure allows rapid deployment on pipeline construction sites, making it ideal for hydrostatic and pneumatic testing operations.
Answer:
A skid-mounted air compressor like the SF-10/250 offers fast installation, easy transportation, and high structural stability. All major components are pre-installed on a single skid base, reducing on-site assembly time and minimizing vibration and misalignment during operation—critical advantages for oilfield and pipeline projects.
Answer:
Yes. The SF-10/250 provides high-volume, high-pressure clean air, making it suitable for pipeline pigging operations. Its consistent pressure output ensures stable pig movement, while the oil-free air design prevents contamination inside the pipeline.
Answer:
Oil-free air prevents contamination of pipelines, valves, and downstream equipment. The SF-10/250 uses an independent cylinder isolation structure to eliminate oil carryover, ensuring clean compressed air that meets the requirements of gas lift systems and sensitive oilfield equipment.
Answer:
Yes. The SF-10/250 is designed for continuous-duty operation, featuring a robust crankshaft, heat-resistant cylinders, optimized cooling, and low-vibration performance. These characteristics ensure stable operation under harsh oilfield conditions and extended runtime.
