Mode:VW-3/40
Gas composition(mol%): Air
Flow rate: 180 Nm ³/h
Inlet pressure: atmospheric pressure
Inlet temperature: normal temperature
Exhaust pressure: 4.0MPa.G
Exhaust temperature:170℃

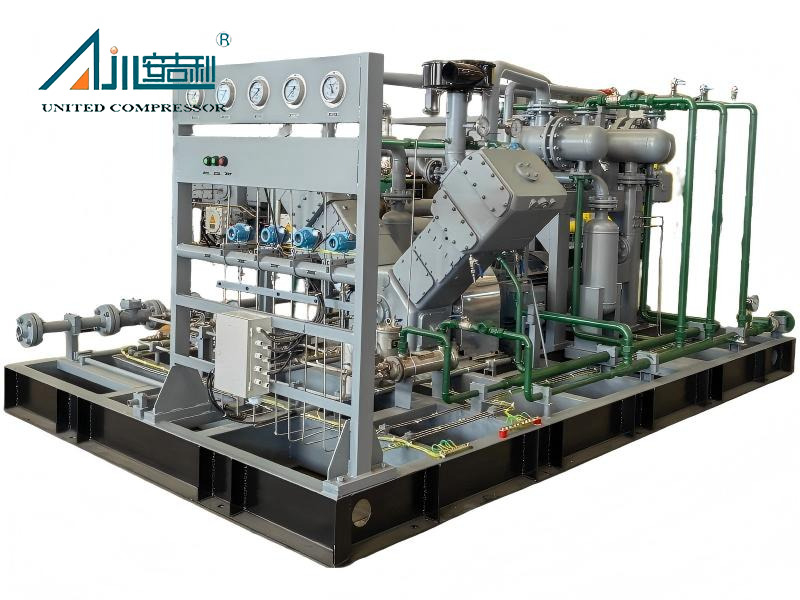

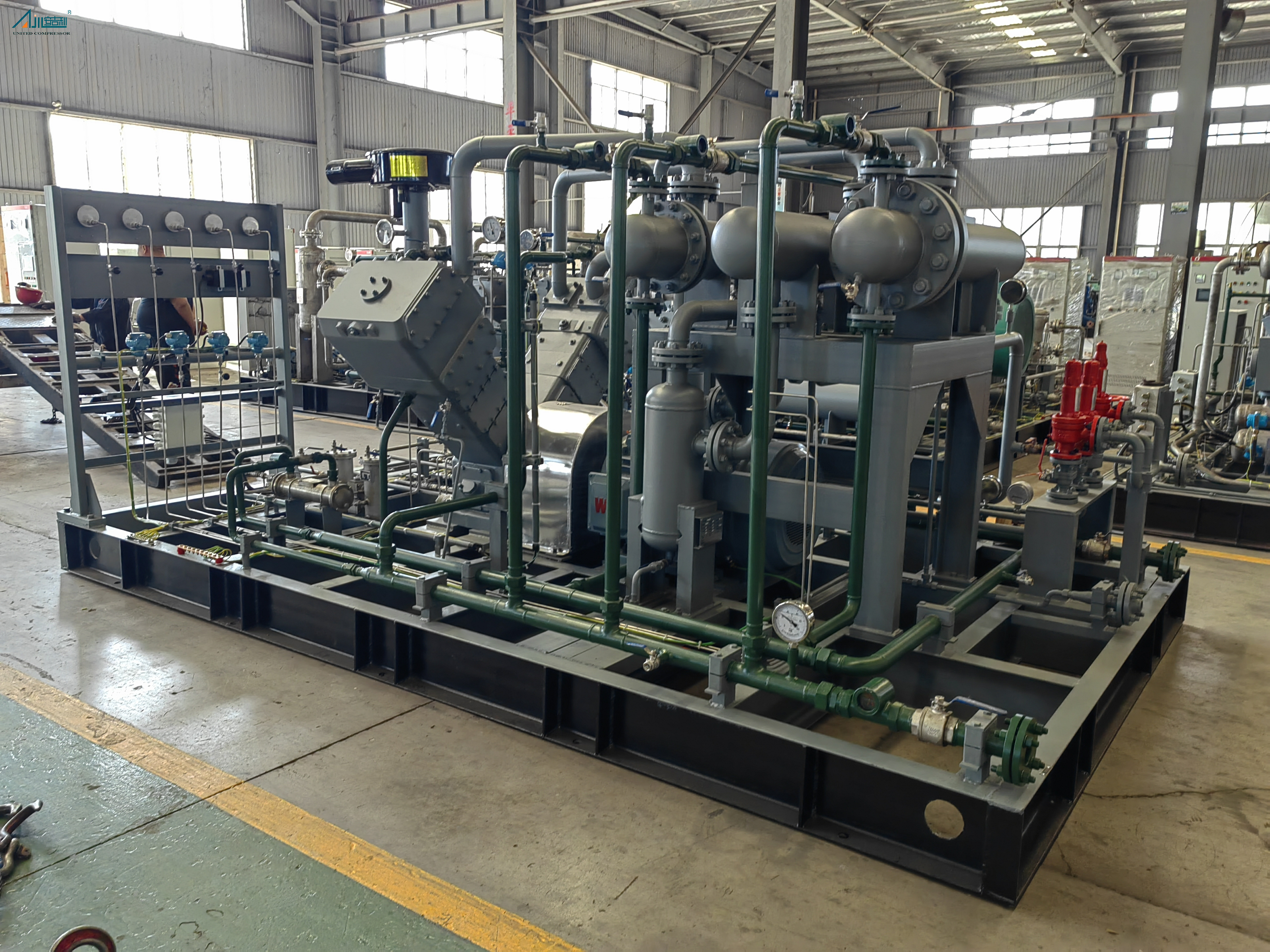

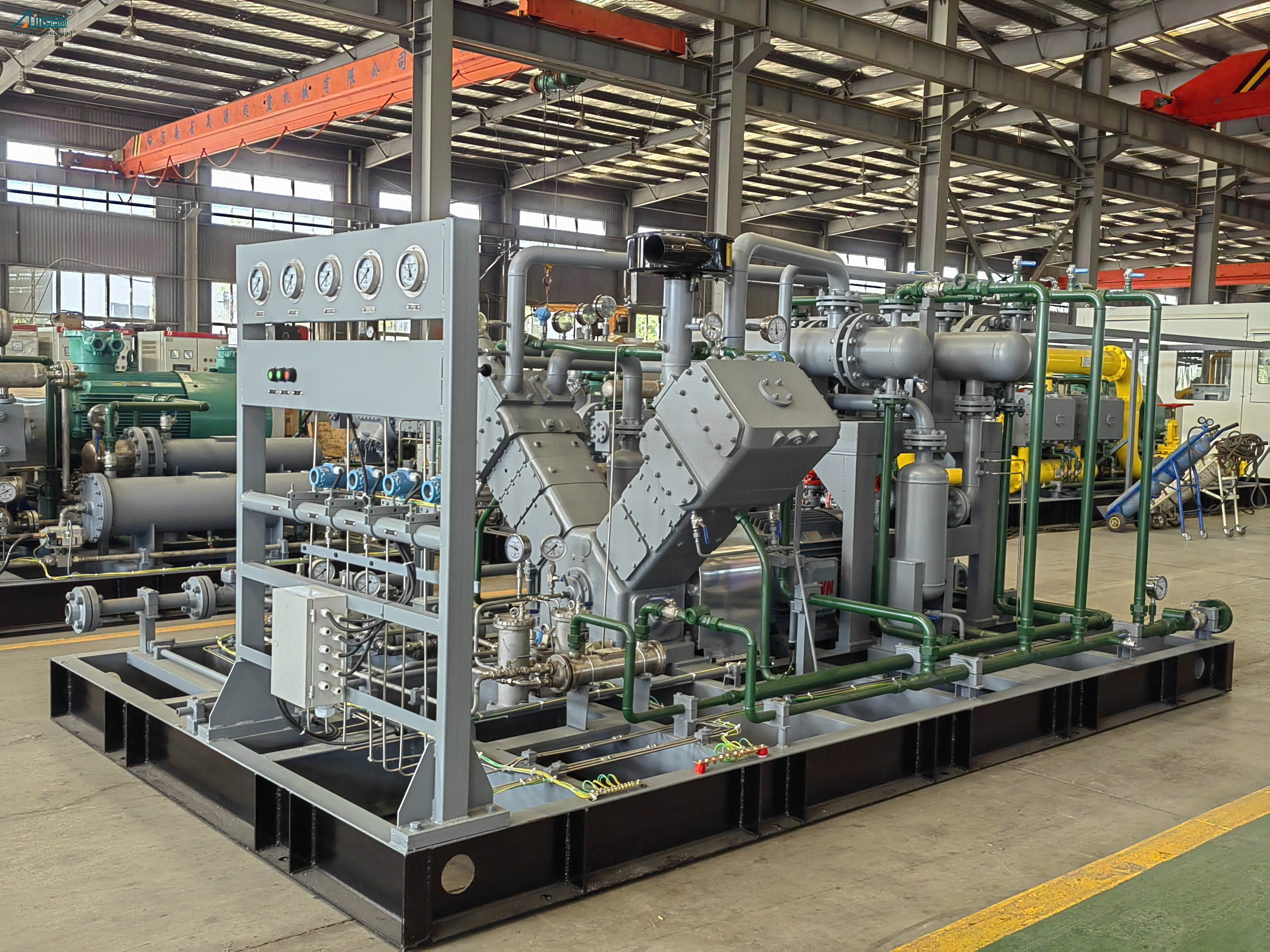

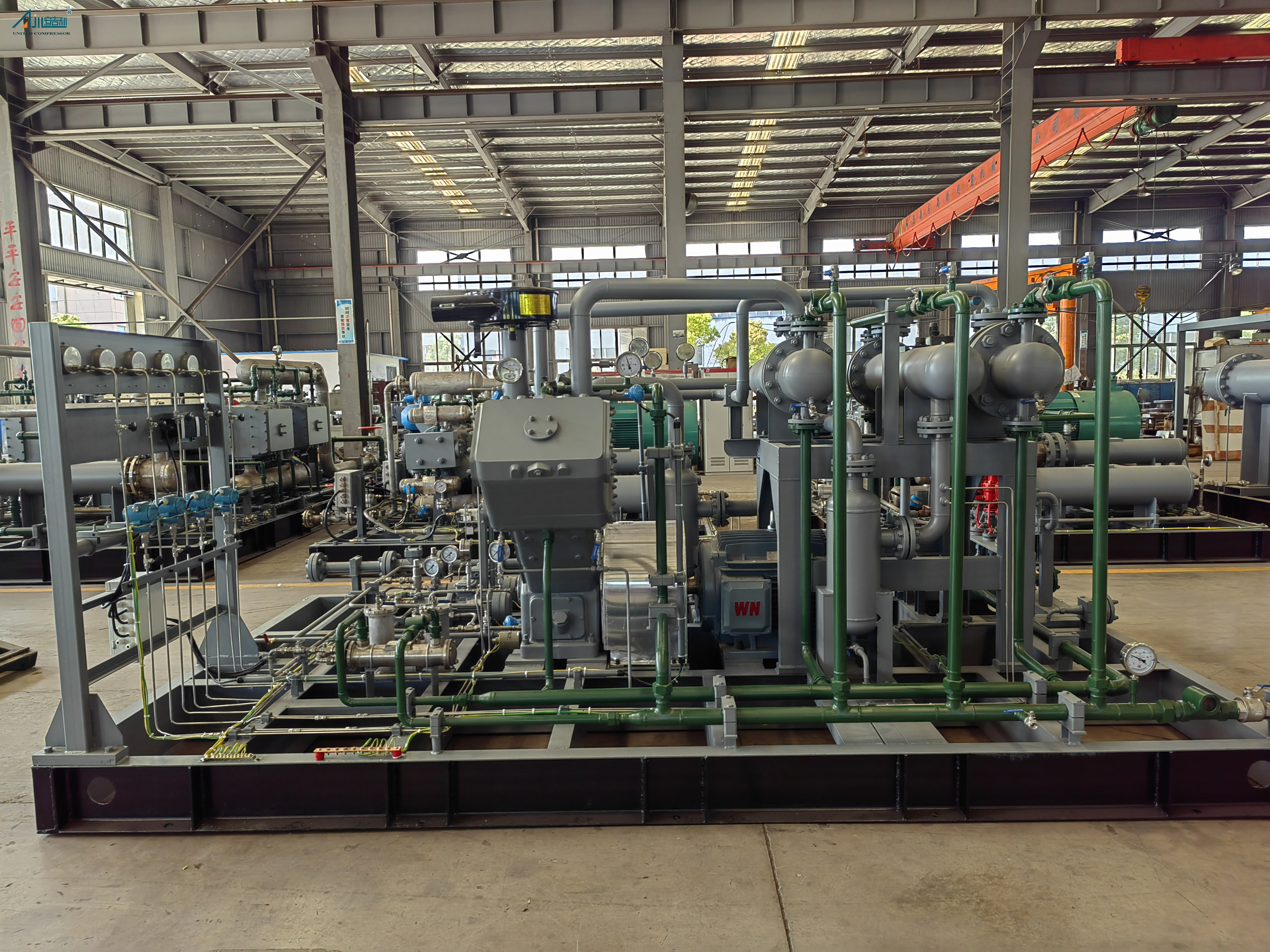

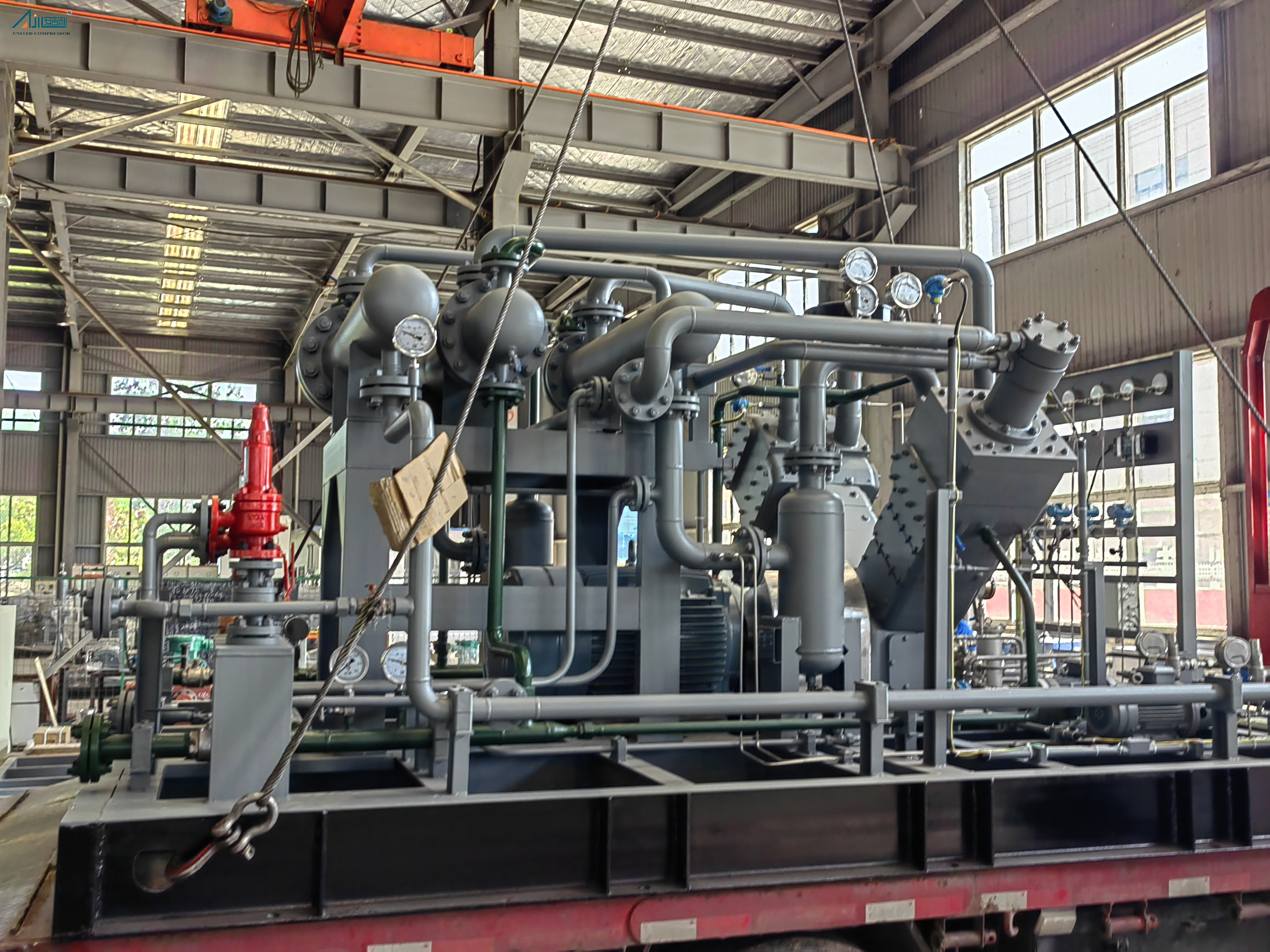

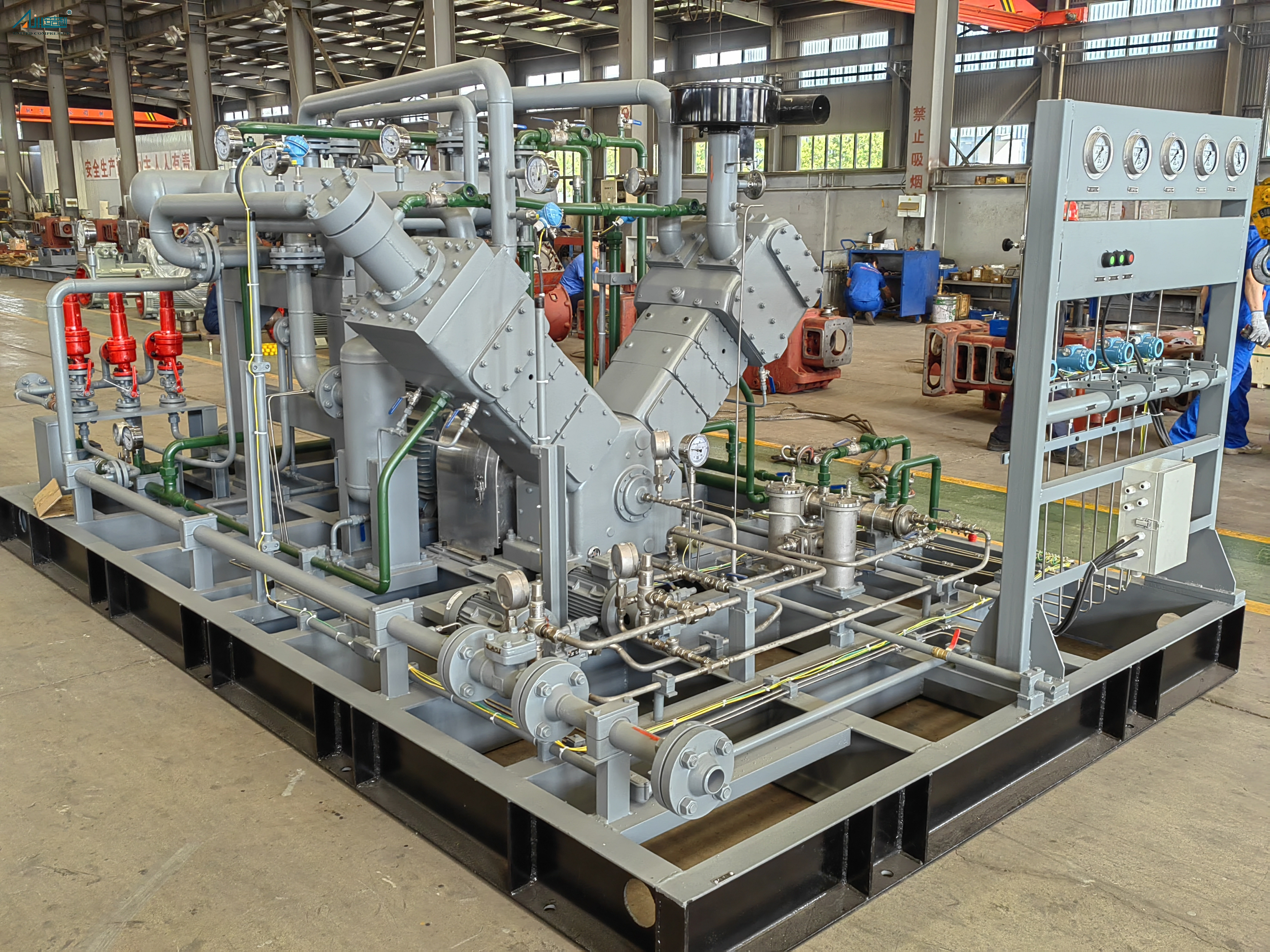

VW-3/40 Air Compressor
AJIL
| Quantity: | |
|---|---|
Overviews
VW-3/40 air compressor is made of Bengbu United Compressor Co.,Ltd. ,which adopts V type double three grades compressed oil-free water cooled. It is suitable for air,industrial gases and other special gas services.
All of equipment installed on a skid.which is easy to install,with a robust structure and customized design,the compressor provides reliable performance and long service life.
Features and Advantages
Three-stage compression design
High pressure capability
High efficiency operation
Water-cooled cylinder design
Low vibration structure
Customized according to customer requirements
Structure of the compressor:Z/V/D/M/W/S types for you to choose
Technical Specifications
Here are main technical specifications for the VW-3/40 Oil-free air compressor.
| Item | Unit | Parameter |
| Mode | VW-3/40 air compressor | |
| Struction | V type double-row three-stage,oil-free water-cooled reciprocating piston compressor | |
| Gas composition | 100% Air | |
| Flow rate | Nm3/h | 180 |
| Inlet pressure | KPa(G) | Atmospheric pressure |
| Exhaust pressure | MPa(G) | 4.0 |
| Inlet temperature | ℃ | Normal temperature |
| Exhaust temperature | ℃ | 170 ≤(After colded temperature 60) |
| Shaft power | kW | 30.5 |
| Crankshaft | r/min | 740 |
| Custom solution available based on your specific data and requirements | ||
Application
Our reciprocating piston air compressors provide stable, reliable compressed air for a wide range of industrial applications. They are widely used in Petrochemical Industry ,Environmental Protection & Energy Industry,Food & Pharmaceutical Industry,Mining & Metallurgical Industry.

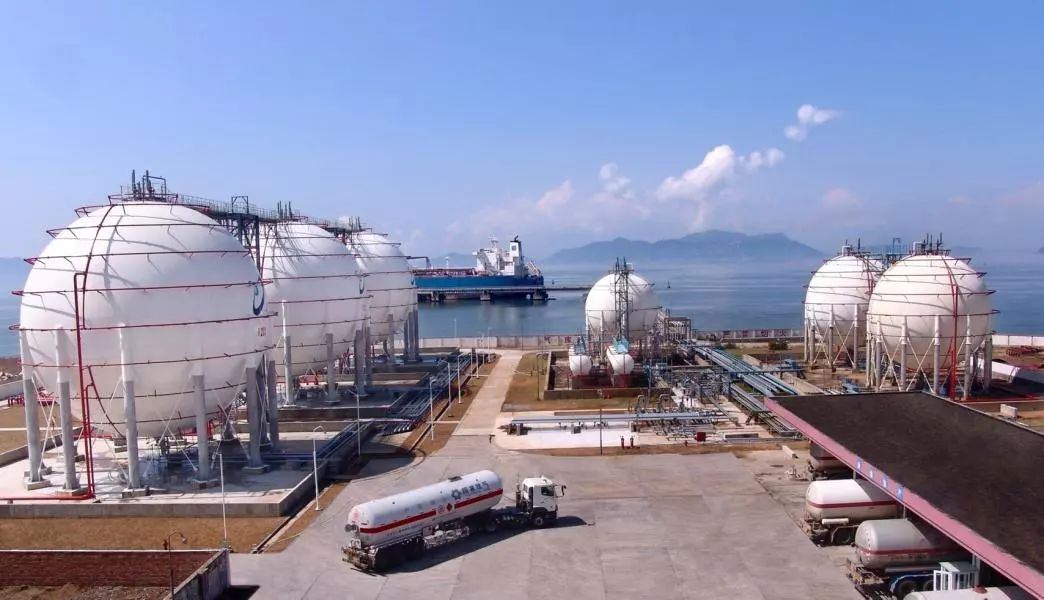

1.Petrochemical Industry
Instrument air for control valves
Pipeline purging
Pneumatic tools
Tank leakage test
Flare ignition air
Explosion-proof models available for hazardous areas
2. Environmental Protection & Energy Industry
Sewage aeration
Waste incineration valve control
Flue gas treatment
Power plant boiler soot blowing
New energy test & auxiliary pneumatic equipment.
| 3. Food & Pharmaceutical Industry
|  |
4.Mining & Metallurgical Industry
| |
Project Cases
Here are our project cases in different countries.
 |  |  |  |

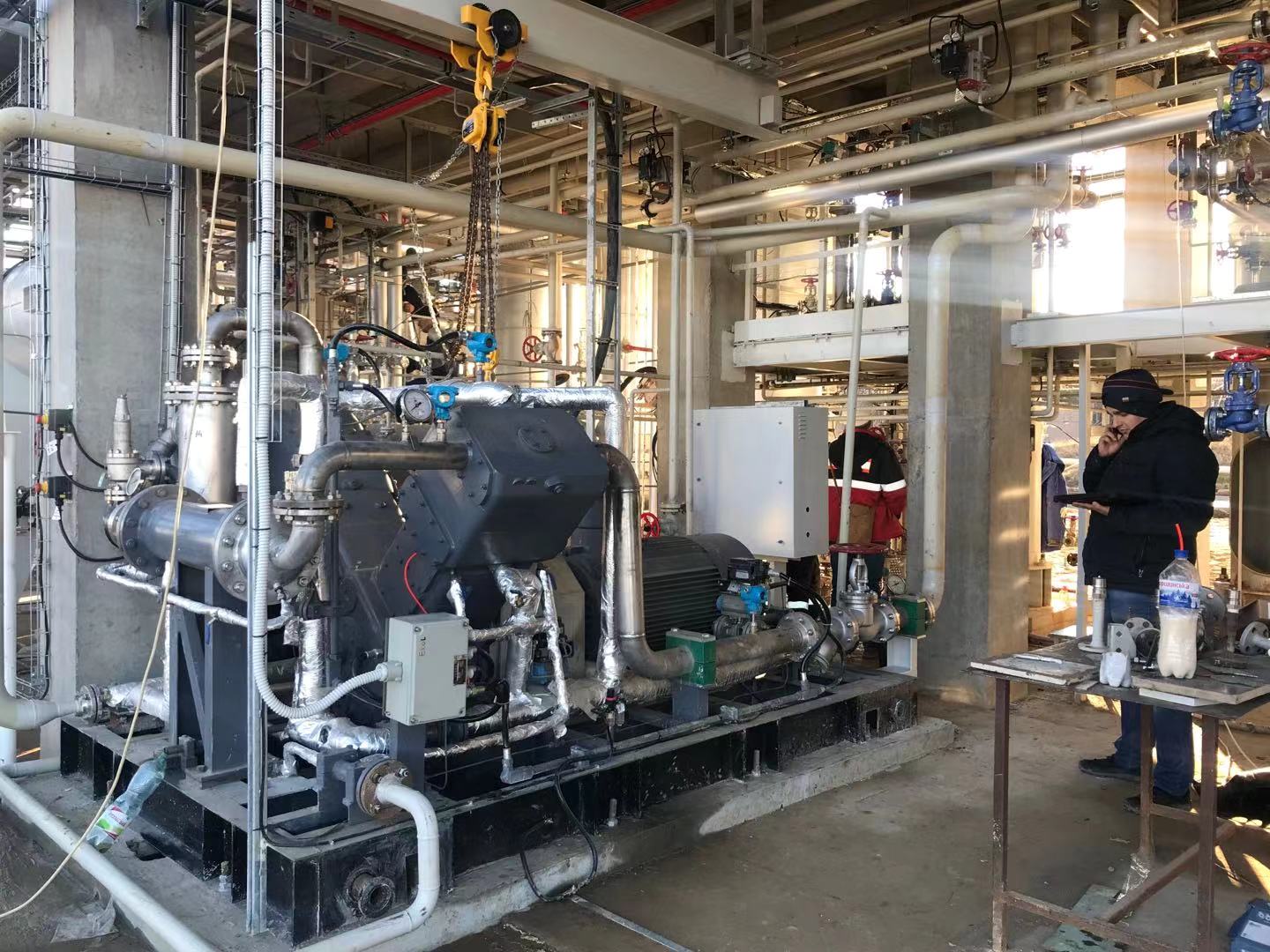

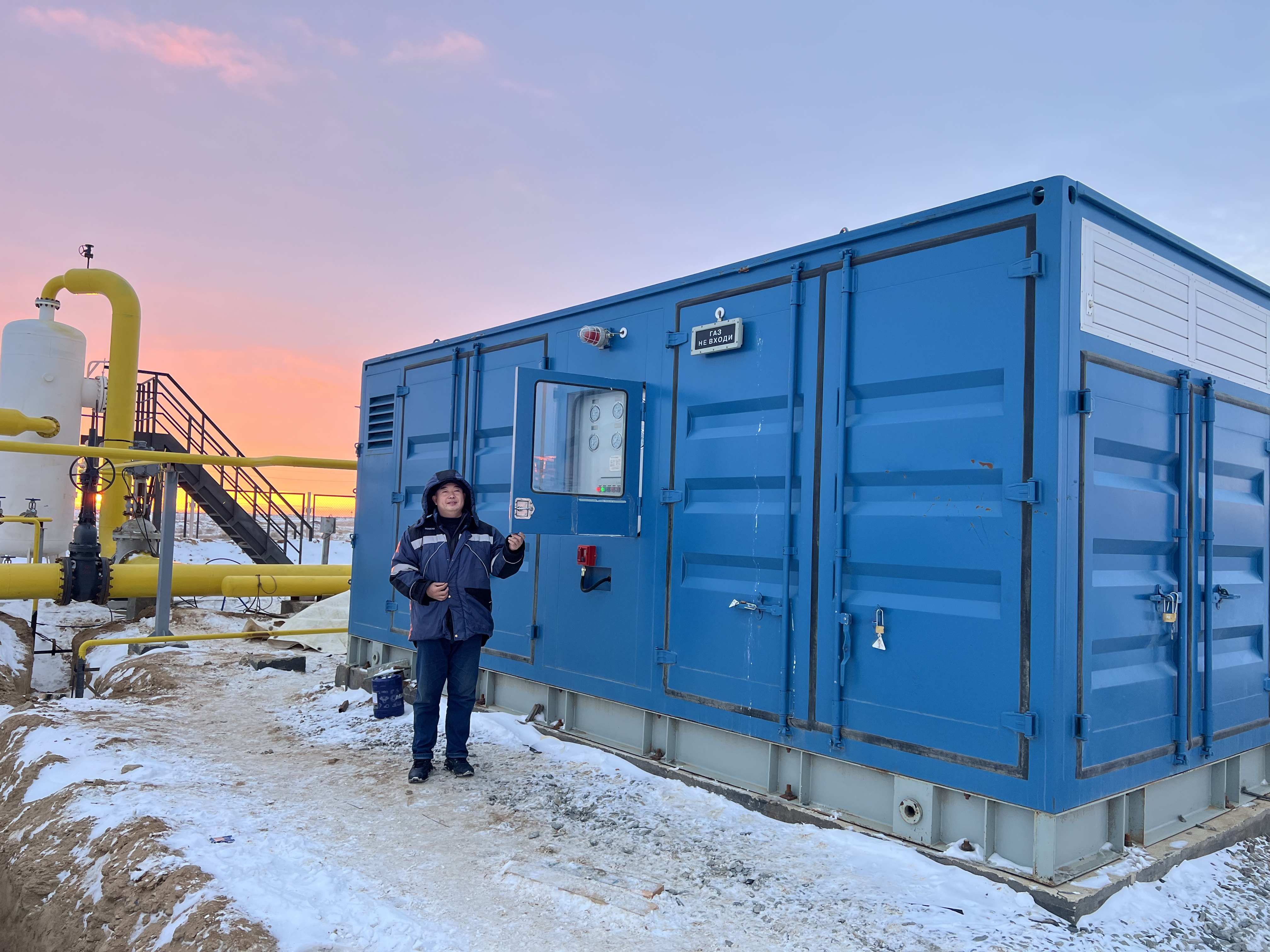

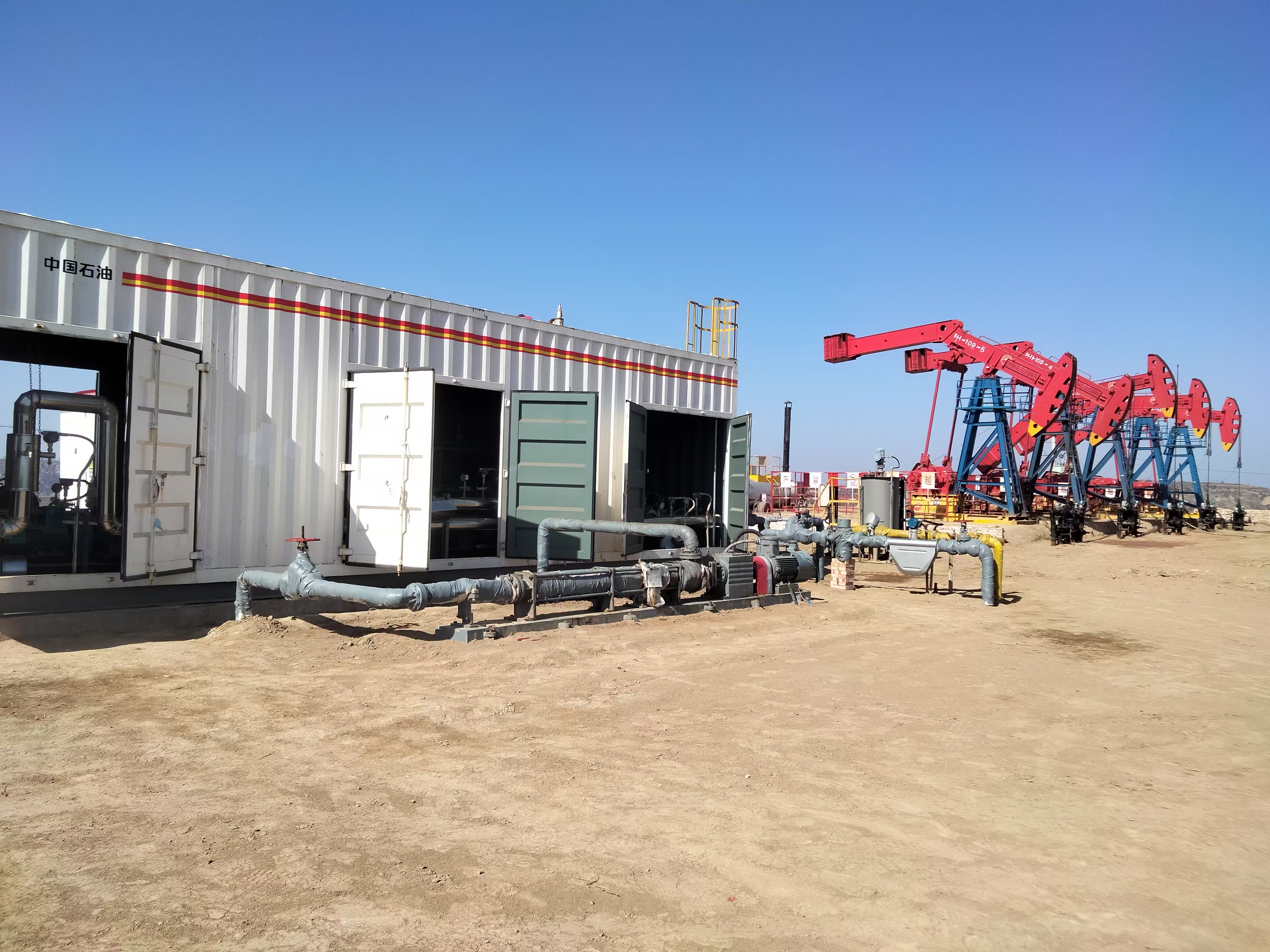

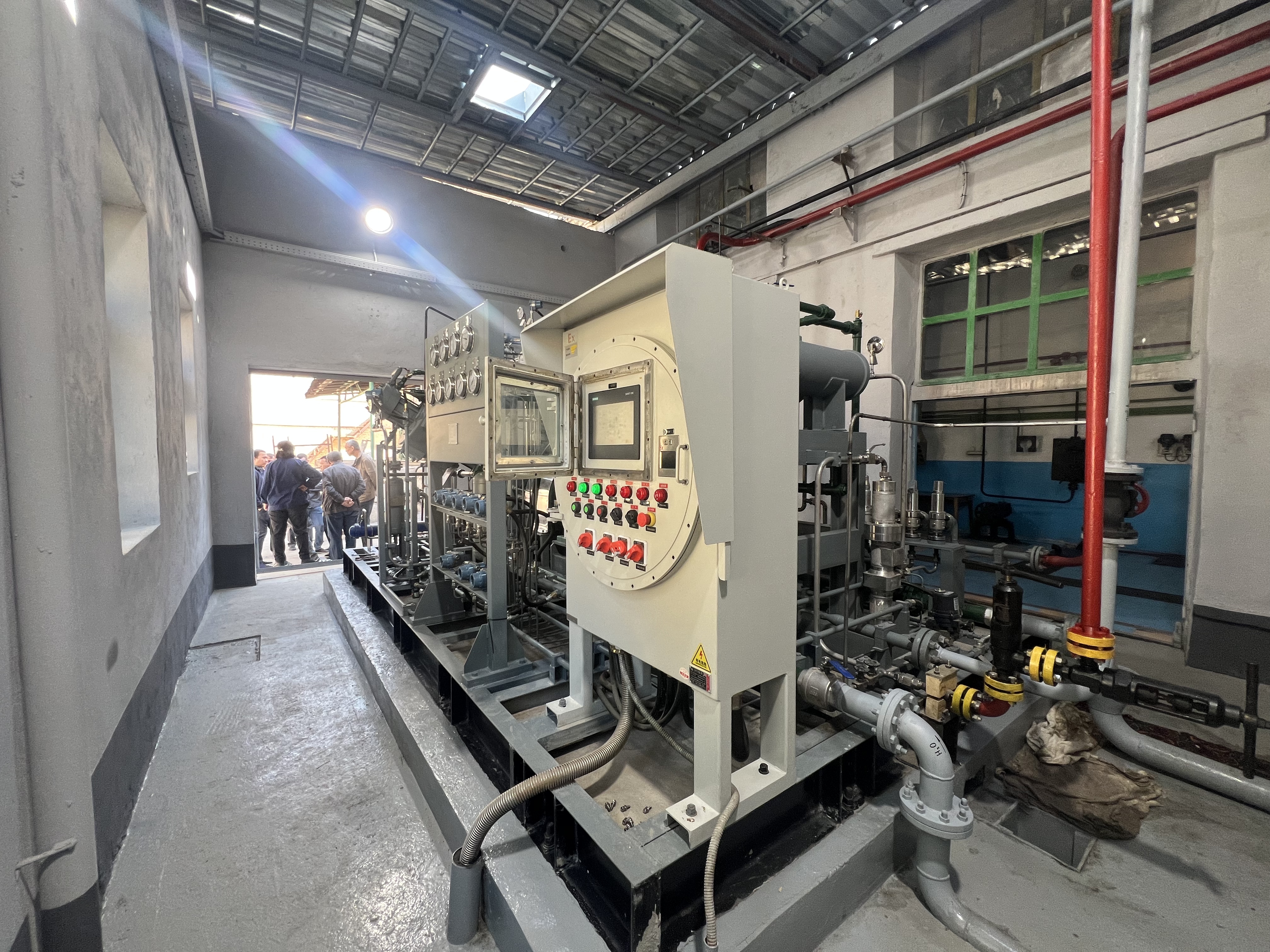

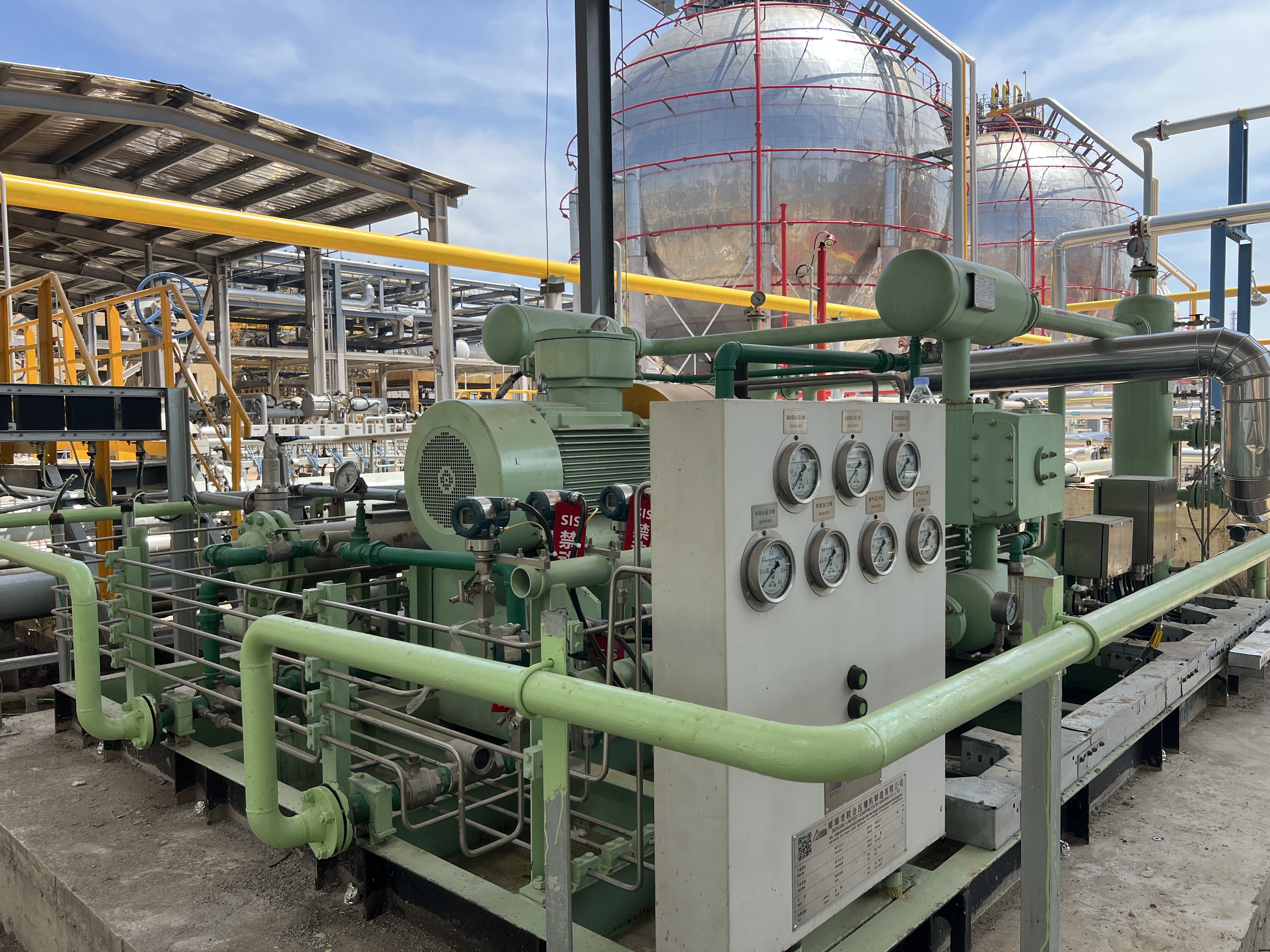

| Site photos of Baihong Chemical | W type -Natural gas -used in Uzbekistan | M Type-Associated gas-used in Russia | V Type -hydrogen- used in Ukraine |
Packaging
 |  |  |

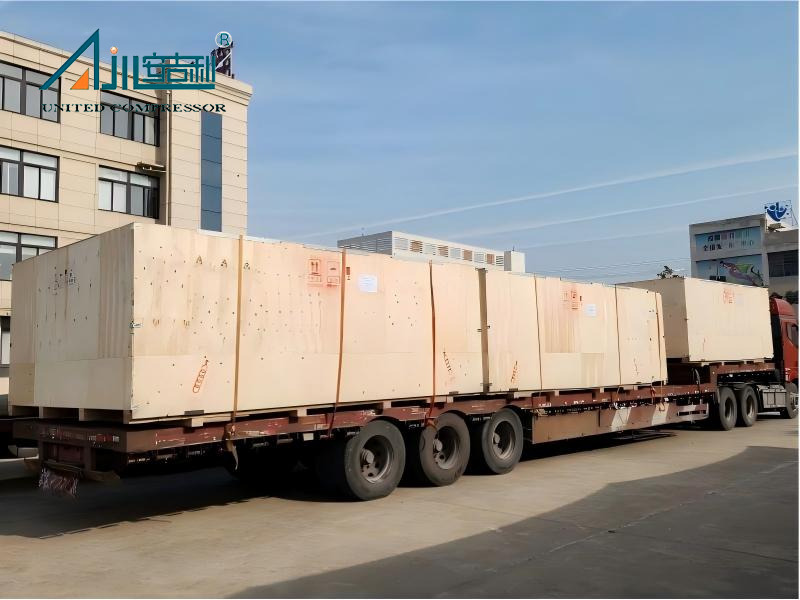

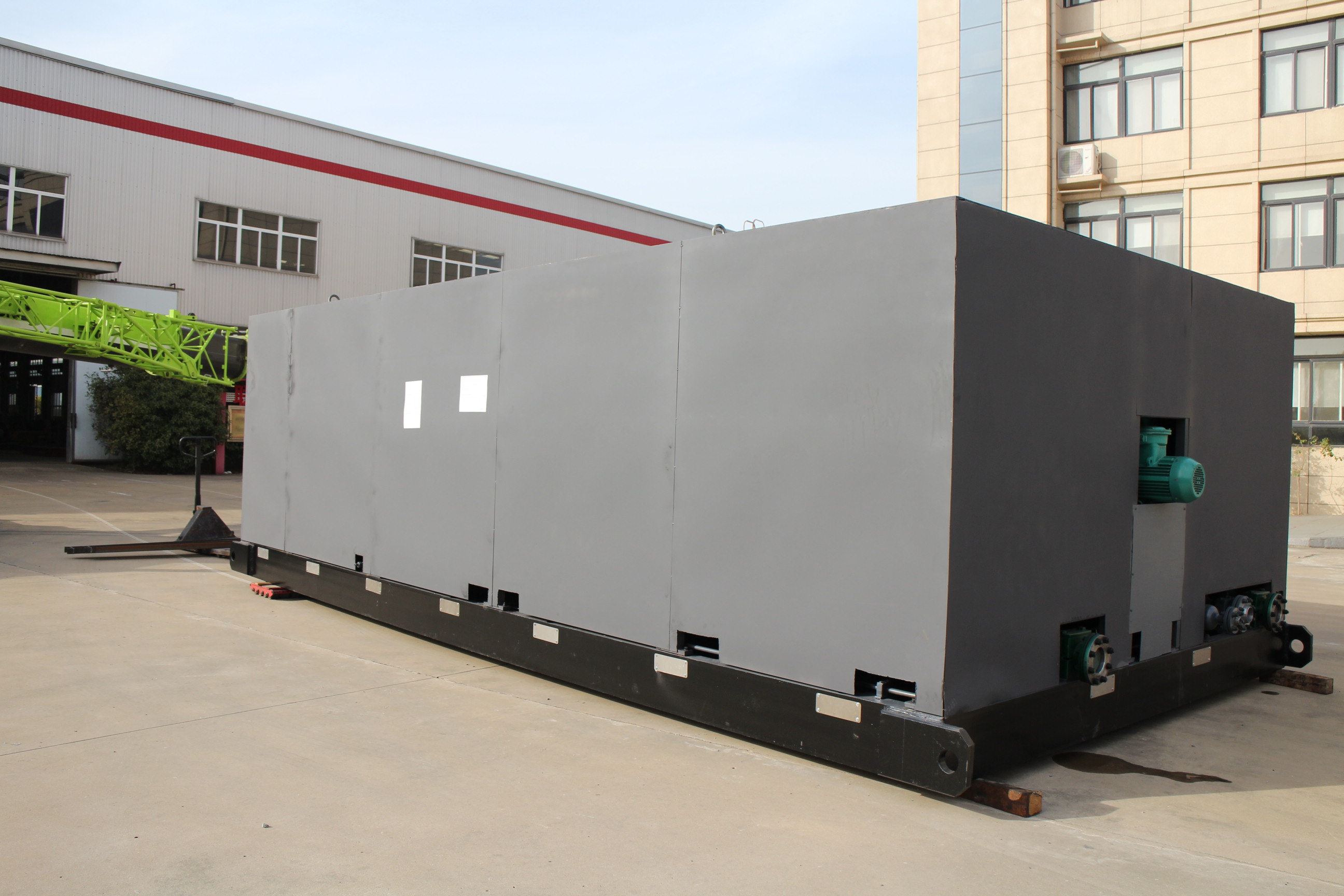

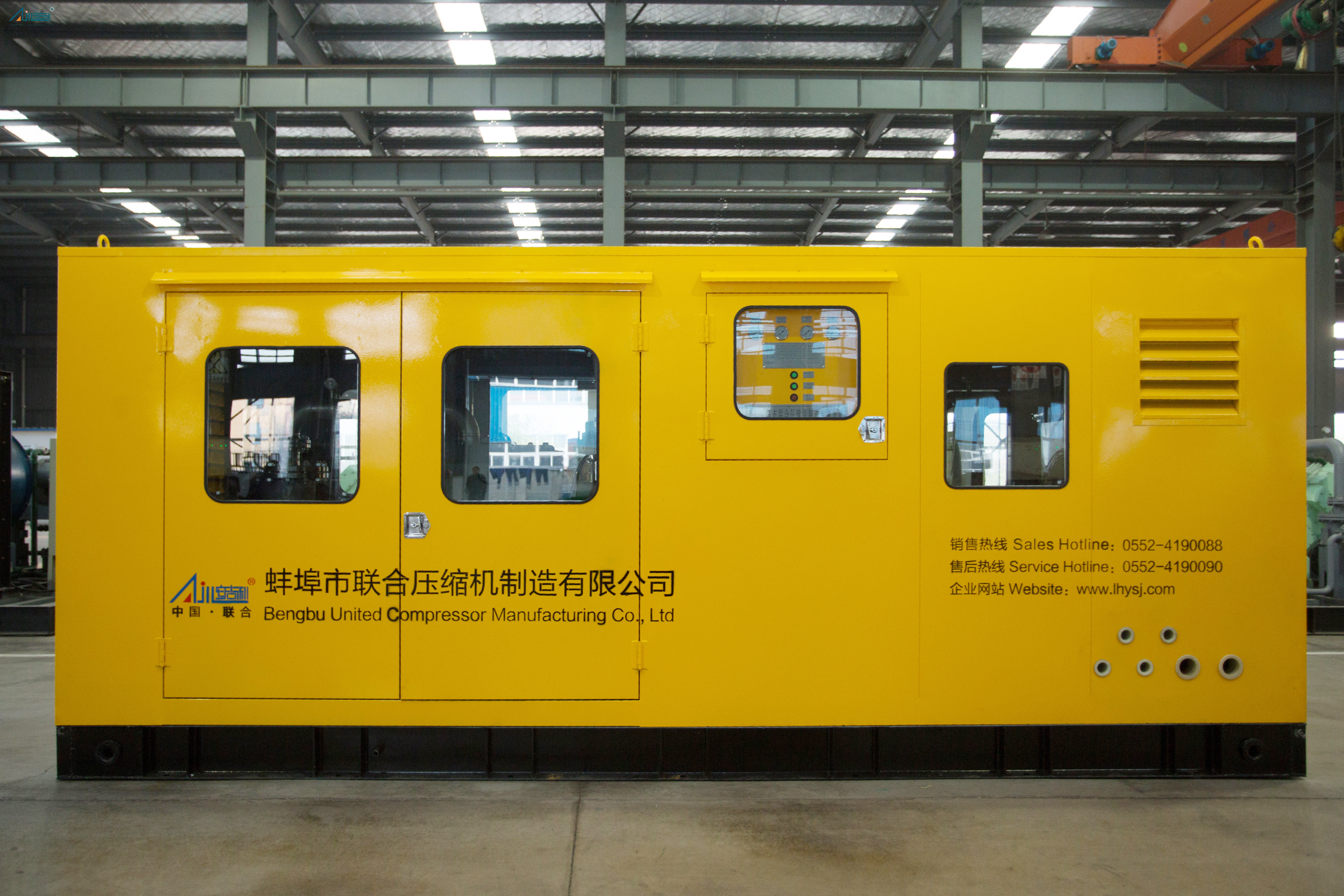

| Wooden Box | Metal Box | Soundproof Cabin |
Factory Assurance
Founded in 2002, Bengbu United Compressor Co., Ltd. specializes in the design and manufacturing of reciprocating piston compressors. We provide OEM and customized solutions for different applications.
An experienced engineering team offers free technical support before production. Strict quality control throughout the manufacturing process helps ensure stable performance and on-time delivery. We are ISO certified and hold product testing reports and utility model patents. Our compressors have been exported to India, Kazakhstan, Ukraine, Russia, Uzbekistan, Spain, Vietnam, and many other countries.
Our Certificate and partner as follws:
FAQ
Are you a factory?
Yes,we are.
How to customize the reciprocating air compressor for me?
You should offer us the core technical parameter,such as flow rate,gas media ,inlet /outlet pressure,inlet/exhaust temperature,then our professional will offer a suitable plan;
after you confirm it,we will produce for you.
How about the delivery?
30-90days,or according to your customized product.
What gases can your compressor handle?
The compressor can be customized for air,oxygen ,ammonia gas,natural gas, hydrogen, CO₂,BOG gas,associated gas,biogas,regeneration gas,Methyl chloride,Liquefied petroleum gas,propylene,nitrogen,hydrogen gas,Carbon monoxide,Trimethylamine gas, and other industrial gases.
How long about the warranty?
12months
