DWFD-2.8(1.28)/(2-10)-55 high-efficiency natural gas compressor by Bengbu United Compressor.10000~18000Nm³/d throughput, inlet 0.2–1.0MPa.G, inlet temp ≤40℃, discharge 5.5MPa.G with 90kW motor.Around 6500×2800×2700 mm, 10.5T, fit for medium & large long-distance gas transmission.
D-type balanced air-cooled oil-free reciprocating piston compressor, 2-3 stage double-acting compression. Skid-mounted design for quick installation and steady compression.
Explosion-proof cabinet with soft start, Siemens S7-200 PLC and 10-inch touch screen. RS485 interface supports remote monitoring and unmanned running. Full protection against overload, short circuit and abnormal pressure & temperature.
Few wearing parts, low vibration and noise to cut maintenance costs. Integrated skid layout and patented key parts deliver long service life.
Suitable for long-distance pipeline pressure compensation, oilfield gas injection for EOR and gas storage peak shaving.
Highlight Advantages
 |  |  |  |
| Has high efficiency, strong reliability, and high degree of automation; | Less vulnerable parts, low vibration, low noise, and easy operation and maintenance | The main and auxiliary equipment of the compressor are all installed on the sled, running smoothly and reliably. The overall sled installation is convenient for the transportation and installation of the compressor | The entire machine components are carefully designed |
Patent Certificates
 | A piston rod thread protective sleeve ZL 2017 2 1907021.7 | | A piston ring support device ZL 2018 2 0294776.2 | |
| A range piston ZL 2017 2 190177.0 for symmetrical balanced compressors | | Integrated long short double compartment ZL 2018 2 0294762.0 |
Whole Machine Description
This D-type balanced air-cooled oil-free reciprocating piston compressor features 2-row 3-stage compression with modular integrated assembly.
Gray cast iron crankcase holds lubricating oil, reserved with ports for oil filling, draining, level observation and temperature detection, fitted with external drain ball valve.
Double middle body isolates crankcase oil from cylinder to avoid medium pollution. Cylinder and cylinder head use gray cast iron or forged steel with oil-free design, axial air valves mounted on cylinder heads.
 |  |

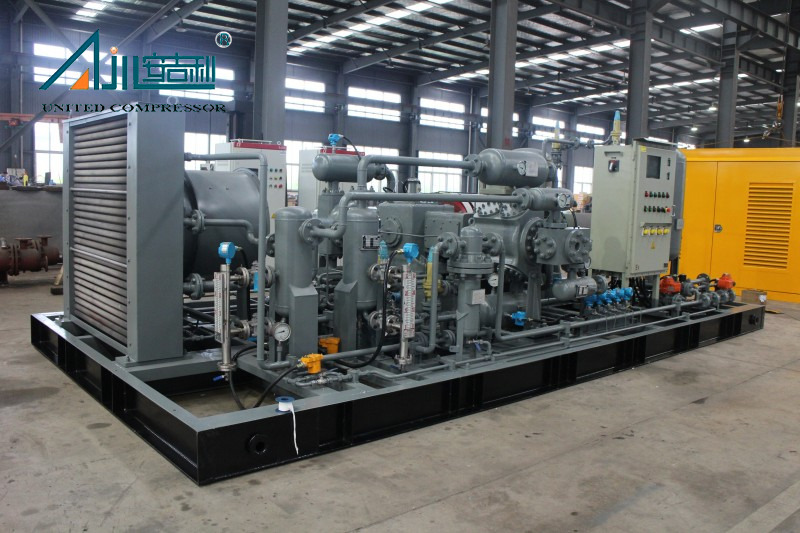

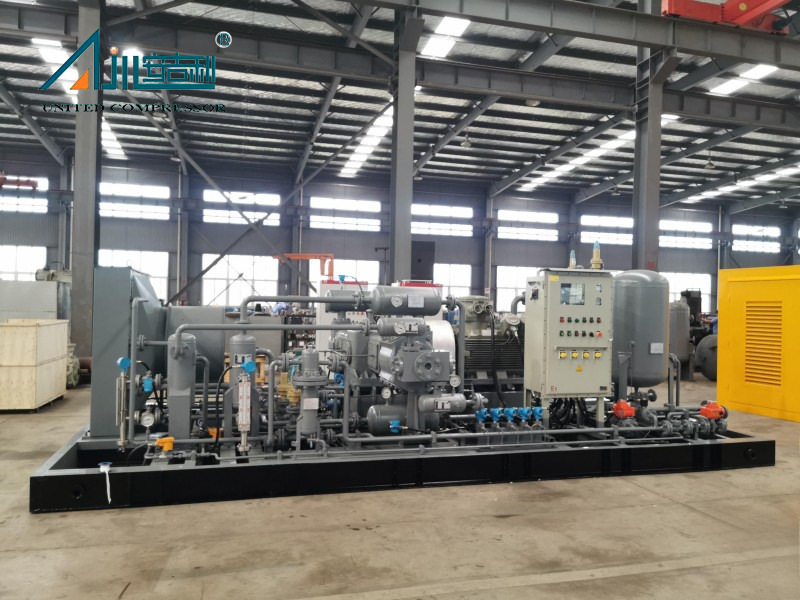

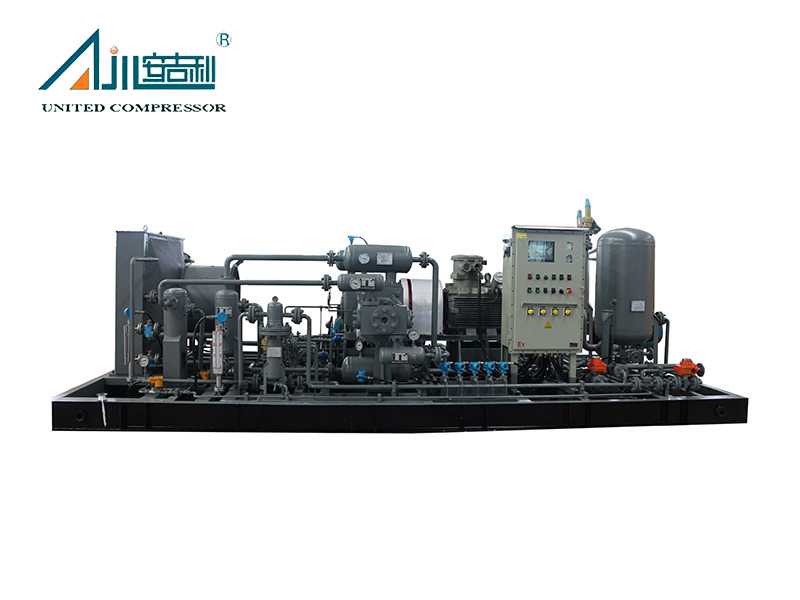

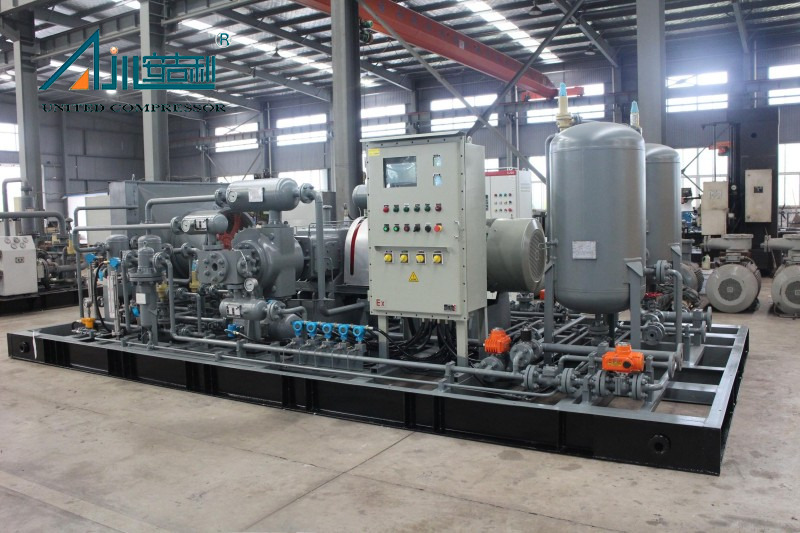

The compressor in this picture is a non-standard product. The product provides independent solutions tailored to customers' specific usage requirements (flow rate/purity/pressure, usage environment, main purpose, and customer specific requirements), from design to product customization.
Structural form: D-type/M-type/S-type/W-type/V-type/Z-type
Cooling method: water cooling/air cooling/mixed cooling
Installation form: fixed/mobile/pry mounted/cabin type
Drive mode: motor drive/diesel engine start
Transportation: sea/air/land
Packaging:
 |  |  |
| Metal cabin | Wooden box | Soundproof cabin |
Project Case
 |  |  |
| Lanzhou petrochemical company 240000 tonsyear ethylene production capacity restoration - adding butadiene and 1-butene unloading facilities project | Alibek oilfield in Southern Kazakhstan | Procurement of Molecular Sieve Dehydration, Ethylene Glycol Regeneration and Injection Device, and Fuel Gas Skid in Akimom Gas Field |
Technical Parameter
| No. | Model | Medium | Flow rate (Nm3/h) | Exhaust pressure MPa | Motor power (kW) | Cooling method | Overall dimensions (mm) | Weights (kg) | |
| 1 | VW-3.5/1-18 | Natural gas | 420 | 1.8 | 55 | Closed water coole | d 4000×1800×2200 | 5000 | |
| 2 | DF-0.4/（2～6）-250 | Natural gas | 160 | 25 | 30 | Air-cooled | 2800×1800×1500 | 3500 | |
| 3 | DFD-1.36/(30～50)-250 | Natural gas | 4167 | 25 | 315 | Air-cooled | 8500×3700×4100 | 22000 | |
| 4 | DFW-3.7/(8～12)-52 | Natural gas | 2083 | 5.2 | 200 | Air-cooled | 6000×3400×2300 | 15000 | |
| 5 | DFW-5.3/3-15 | Natural gas | 1100 | 1.5 | 90 | Air-cooled | 6500×3000×2500 | 6000 | |
| 6 | DFWD-5.7/(0. 1～0.5)-40 | Natural gas | 75～365 | 4 | 90 | Air-cooled | 7000×3400×2500 | 100000 | |
| 7 | DFWD-5/(1.5～3.6)-14.2 | Natural gas | 700 | 1.42 | 90 | Air-cooled | 5000×3200×2200 | 6500 | |
| 8 | DW-9/3-35 | Natural gas | 2000 | 3.5 | 250 | Air-cooled | 4800×4000×2000 | 13000 | |
| 9 | MFWD-7/(10～30)-35 | Natural gas | 6250 | 3.5 | 315 | Air-cooled | 6300×3200×3200 | 16000 | |
| 10 | VF-1.4/(5～7)-250 | Natural gas | 500 | 25 | 110 | Air-cooled | 5000×2400×2100 | 6800 | |
Support sea, land and air transport. Metal cabin, wooden case and soundproof cabin packaging protect the unit during delivery.
We supply operation guidance, maintenance videos and troubleshooting documents. Reach us via WhatsApp (+8618955218331), phone (+86-13955206799) and email bblhcompressor@gmail.com for urgent problems.
Multiple models for different working conditions, such as VW-3.5/1-18 and DFW-3.7/(8~12)-52 with different flow and pressure parameters.
DWFD-2.8 (1.28)/(2-10)-55 high-efficiency natural gas compressor features stable performance for global energy industries. Contact us for quotations.
