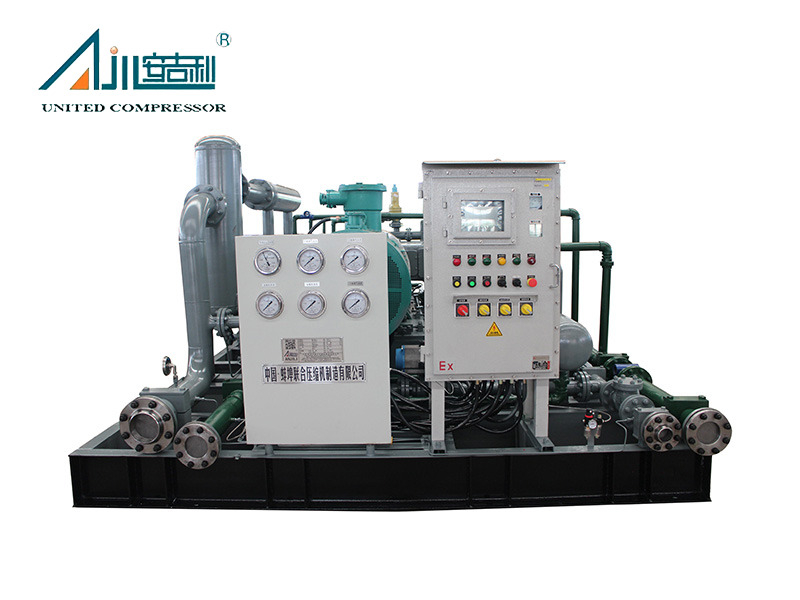

10~20KPa High-Reliability Natural Gas Compressor for Oilfields

Gas composition(mol%): N2:18%, CH4: 82%
Flow rate : 1000Nm ³/h
Inlet pressure: 10~20KPa. G;
Inlet temperature: -20~40 ℃
Exhaust pressure: 2.6MPa. G;
Main motor power: 200kW
Overall dimensions of the machine: ~5200 × 3200 × 2000 mm
Whole machine weight: ~10T
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
sharethis sharing button


Overview



This page showcases high-efficiency natural gas compressors manufactured by Bengbu United Compressor Manufacturing Co., Ltd., a leading China-based manufacturer specializing in gas compression solutions. The core products highlighted include the MW-17.4 / (0.1-0.2) -26 and MW-19.2 / (1-17)-(17-25) models, designed to meet diverse industrial needs for natural gas compression.


The MW-17.4 / (0.1-0.2) -26 Natural Gas High-efficiency Compressor stands out with its precise performance metrics: it handles a medium composition of 18% N₂ and 82% CH₄, boasting a processing capacity of 1000Nm³/h. Operating under an inlet pressure of 10~20KPa.G and inlet temperature of -20~40℃, it delivers an exhaust pressure of 2.6MPa.G, powered by a 200kW main motor. With overall dimensions of approximately 5200 × 3200 × 2000 mm and a weight of around 10T, it is engineered for stability in various settings.


Another key model, the MW-19.2 / (1-17)-(17-25) Natural Gas High-efficiency Compressor, offers a processing capacity of 19.2m³/min, operating with an inlet pressure range of 0.1~1.7MPa.G and inlet temperature of 40℃, while achieving an exhaust pressure of 1.7~25MPa.G. Equipped with a 400kW main motor, it features dimensions of roughly 8500 × 3200 × 2500 mm and a weight of 20T, making it suitable for large-scale industrial applications.


These compressors are widely utilized in urban gas pipeline systems to maintain stable supply pressure, household gas equipment (e.g., stoves and water heaters) as a CNG fuel source, CNG refueling stations for vehicle fuel supply, oil well injection to enhance crude oil recovery, and storage tank peak shaving to balance supply and demand during high-usage periods.


Features



High Efficiency and Reliability


Our natural gas compressors are designed for exceptional efficiency, reducing energy consumption while boosting operational productivity. Their robust reliability ensures continuous, stable operation under all specified conditions, minimizing downtime and keeping gas compression processes uninterrupted. With a high degree of automation, they integrate seamlessly into diverse systems, simplifying workflow management.


Easy Operation and Maintenance


Featuring fewer vulnerable parts, these compressors require less frequent replacement and repairs, lowering maintenance costs significantly. They operate with low vibration and noise, creating a more comfortable working environment. This stable performance also makes them user-friendly, even for operators with limited experience, ensuring smooth day-to-day use.


Convenient Transportation and Installation


All main and auxiliary equipment are mounted on a sled, ensuring reliable operation and simplifying transportation and installation. Whether shipped by sea, air, or land, the sled-mounted design saves time and effort during setup, making deployment efficient across different locations.


Precision-Engineered Components


The compressor body is crafted from HT250 casting, ensuring durability and a long service life. Both the cylinder and packing adopt oil-free structures, eliminating the need for oil lubrication and reducing contamination risks. Cylinder inlet and exhaust ports are arranged vertically (upward and downward) to prevent liquid hammer caused by internal liquid accumulation, enhancing operational safety. The air valve uses an internationally popular mesh structure with a stainless steel valve plate, further boosting performance and longevity.


Application Area


Natural gas compressors are used in oil and gas field development to increase gas well productivity, including natural gas transportation, oil and gas separation, wellhead pressurization, and other processes. For example, by using a compressor to boost and recover low-pressure associated gas, resource waste can be reduced. In addition, compressors are also used for gas well production and gathering in unconventional natural gas extraction such as shale gas and coalbed methane.

Natural gas compressor is the core equipment of long-distance pipelines, which ensures stable transportation of natural gas through multi-stage boosting. For example, compressor units are installed at the initial, intermediate, and final stations to compensate for pipeline pressure losses and achieve long-distance transportation.


Highlight Advantages



high efficiency operating Installation honor
Has high efficiency, strong reliability, and high degree of automation; Less vulnerable parts, low vibration, low noise, and easy operation and maintenance The main and auxiliary equipment of the compressor are all installed on the sled, running smoothly and reliably. The overall sled installation is convenient for the transportation and installation of the compressor The entire machine components are carefully designed


Patent Certificates



certificates

A piston rod thread protective sleeve ZL 2017 2 1907021.7


certificates

A piston ring support device ZL 2018 2 0294776.2

certificates

A range piston ZL 2017 2 190177.0 for symmetrical balanced compressors


certificates

Integrated long short double compartment ZL 2018 2 0294762.0


Whole Machine Description

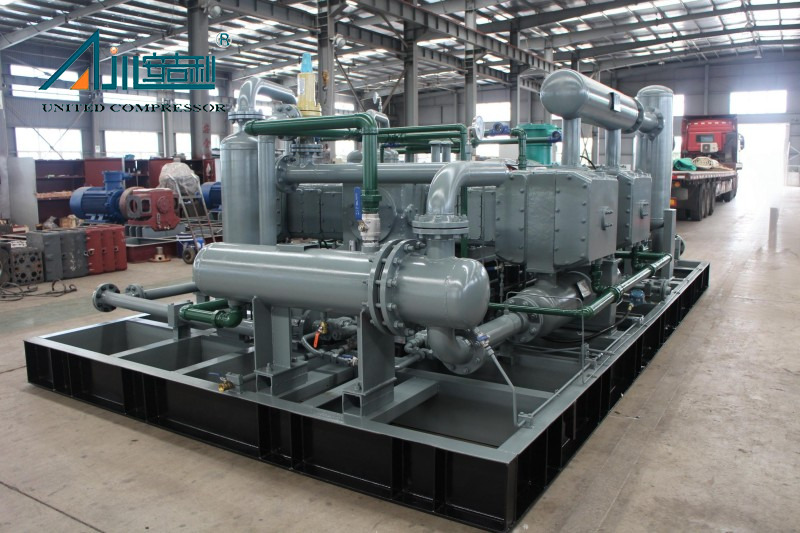

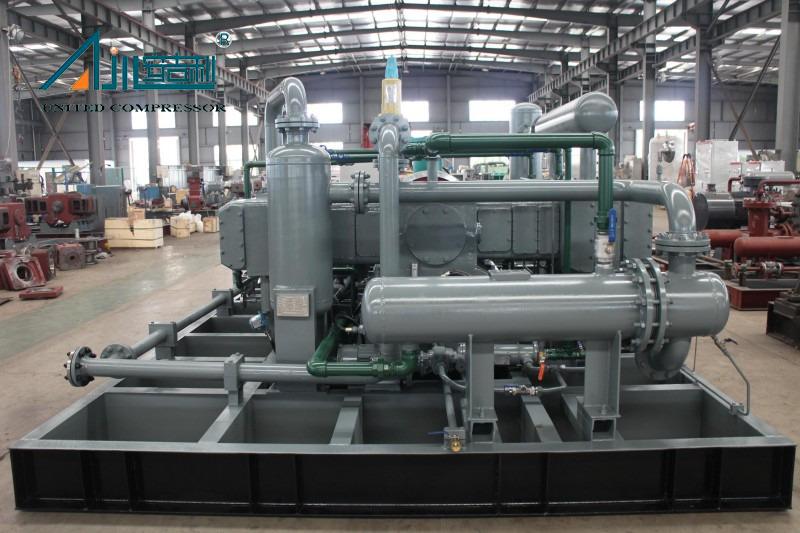

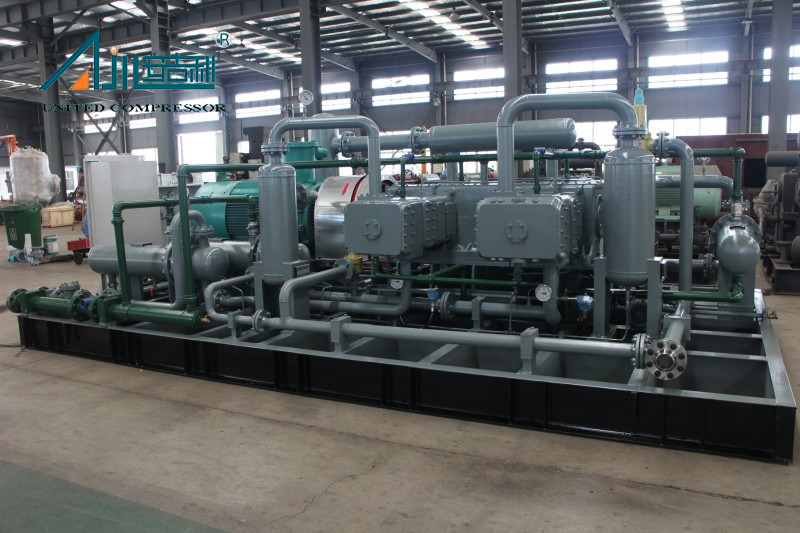

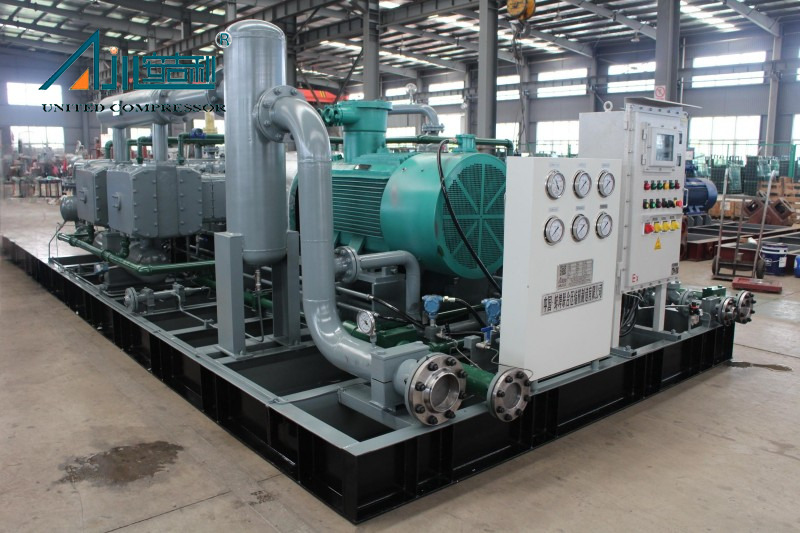

The compressor adopts D-type (symmetrical balance type), water-cooled, oil-free lubrication, reciprocating piston type, 2-row 3-stage compression, and the entire unit is supplied in a modular manner.

The compressor crankcase is made of gray cast iron and has four holes of different diameters for installing crosshead slides, bearings, and bearing seats. The lower part of the crankcase can store lubricating oil for the compressor to lubricate; The upper surface of the crankcase has an interface for installing a fuel inlet (breathing port) cover plate; In addition, the crankcase also has spare interfaces such as oil drain port, oil gauge observation port, bearing seat oil injection port, and installation oil temperature measurement port. The oil drain port of the crankcase has been connected to the outside of the compartment and is equipped with a manual ball valve for oil discharge from the crankcase.

The middle body of the compressor is a double middle body structure, ensuring that the middle body space is greater than one stroke, preventing compressor oil from entering the cylinder from the crankcase, thus ensuring that compressor oil does not contaminate the medium. The material of the compressor cylinder is gray cast iron/forged steel, and it adopts an oil-free lubrication design, which does not require oil lubrication. The cylinder head material is gray cast iron/forged steel, and the air valves are arranged axially on the cylinder head.


DW 6.74 (3.3) / 0.7 (5-12) -12 Hydrogen Compressor DW 6.74 (3.3) / 0.7 (5-12) -12 Hydrogen Compressor


The compressor in this picture is a non-standard product. The product provides independent solutions tailored to customers' specific usage requirements (flow rate/purity/pressure, usage environment, main purpose, and customer specific requirements), from design to product customization.


  • Structural form: D-type/M-type/S-type/W-type/V-type/Z-type

  • Cooling method: water cooling/air cooling/mixed cooling

  • Installation form: fixed/mobile/pry mounted/cabin type

  • Drive mode: motor drive/diesel engine start

  • Transportation: sea/air/land

  • Packaging:

    Metal cabin
    Wooden box
    Soundproof cabin
    Metal cabin Wooden box
    Soundproof cabin


Technical Parameter



No. Model Medium Flow rate
(Nm3/h)
Exhaust pressure
  MPa
Motor power
(kW)
Cooling method Overall dimensions
    (mm)
Weights
(kg)
1 VW-3.5/1-18 Natural gas 420 1.8 55 Closed water coole d 4000×1800×2200 5000
2 DF-0.4/(2~6)-250 Natural gas 160 25 30 Air-cooled 2800×1800×1500 3500
3 DFD-1.36/(30~50)-250 Natural gas 4167 25 315 Air-cooled 8500×3700×4100 22000
4 DFW-3.7/(8~12)-52 Natural gas 2083 5.2 200 Air-cooled 6000×3400×2300 15000
5 DFW-5.3/3-15 Natural gas 1100 1.5 90 Air-cooled 6500×3000×2500 6000
6 DFWD-5.7/(0. 1~0.5)-40 Natural gas 75~365 4 90 Air-cooled 7000×3400×2500 100000
7 DFWD-5/(1.5~3.6)-14.2 Natural gas 700 1.42 90 Air-cooled 5000×3200×2200 6500
8 DW-9/3-35 Natural gas 2000 3.5 250 Air-cooled 4800×4000×2000 13000
9 MFWD-7/(10~30)-35 Natural gas 6250 3.5 315 Air-cooled 6300×3200×3200 16000
10 VF-1.4/(5~7)-250 Natural gas 500 25 110 Air-cooled 5000×2400×2100 6800
11 VF-2.2/(0.5~0.7)-60 Natural gas 180 6 45 Air-cooled 6000×2500×2400 8000
12 VWF-1.65/(25~35)-50 Natural gas 2500 5 90 Air-cooled 4500×2500×2100 5500
13 VWF-11/(0.5~2)-14 Natural gas 1000 1.4 160 Air-cooled 5200×2000×2200 6000
14 VWF-13.6/(0.05~0.2)-6 Natural gas 800 0.6 90 Air-cooled 5000×2200×2200 6000
15 VWF-8/(0.6~3)-12 Natural gas 1900 1.2 132 Air-cooled 5800×2300×2450 7800
16 VWF-9/0.05-14 Natural gas 500 1.4 90 Air-cooled 3800×2000×1600 3500
17 DFW-15.9/(0.4~1)-16 Natural gas 1330 1.6 250 Mixed cooling 5000×3400×2000 12000
18 VWFD-7.5/(0.5~1)-3 Natural gas 20000 0.3 45 Mixed cooling 4000×2300×2300 400
19 MFWD-6.0/(25~45)-45 Natural gas 20000~36000 4.5 250 Mixed cooling 6500×3000×3200 17000
20 DW-2.8/(16~25)-50 Natural gas 2500 5.0 160 Water-cooled 4300×3000×1600 7000
21 DW-3/15-52 Natural gas 2550 5.2 185 Water-cooled 3800×3400×2300 9000
22 DW-4.9/(1.5~2.5)-22 Natural gas 700 2.2 110 Water-cooled 3800×2700×1800 6000
23 DW-6.9/(7~15)-20 Natural gas 4000 2.0 160 Water-cooled 3600×2300×1600 4500
24 DW-1.92/2.5-22 Natural gas 320 2.2 45 Water-cooled 3200×3000×1700 3000
25 DW-7.6/1.5-25 Natural gas 1000 2.5 160 Water-cooled 5200×3200×2200 10000
26 DWD-8/4-10 Natural gas 2100 1.0 110 Water-cooled 5800×3300×2300 8800
27 MW-19.2/(1~17)-(17~25) Natural gas 2000 1.7~2.5 400 Water-cooled 7200×3600×2100 21000
28 VW-8.4/(2~4)-20 Natural gas 1500 2 185 Water-cooled 5500×2200×2700 6000
29 VW-9. 1/(0.05~0. 1)-5型 Natural gas 500 0.5 55 Water-cooled 3500×2200×1800 5000
30 ZW-1.6/(35~52)-(39~56) Natural gas 4000 3.9~5.6 37 Water-cooled 3200×1700×1800 2500


Project Case

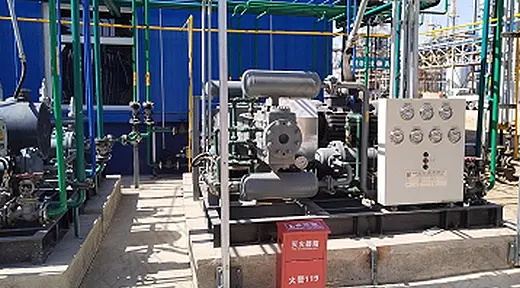

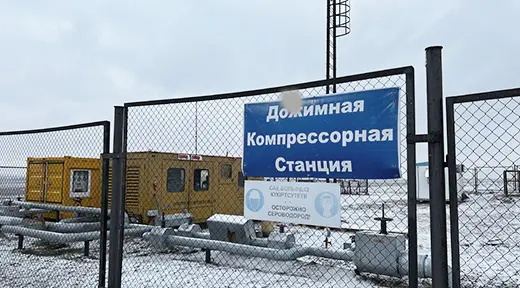

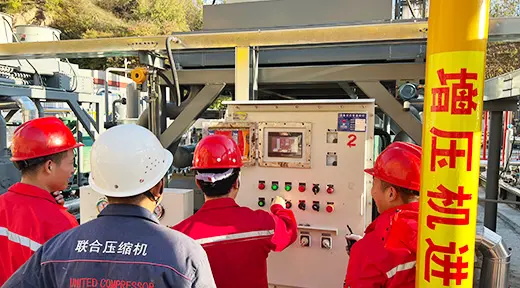

Alibek oilfield in Southern Kazakhstan Ningxia Zhongneng new materials engineering Beijing Hongke Qingneng Technology Co., Ltd. associated gas compressor for Shanxi Yanan 60000 m3 project
Alibek oilfield in Southern Kazakhstan Ningxia Zhongneng new materials engineering Beijing Hongke Qingneng Technology Co., Ltd. associated gas compressor for Shanxi Yan'an 60000 m3 project


FAQ


What are the main applications of these compressors?


These natural gas compressors are versatile across industries: they maintain pressure in urban gas pipelines, serve as fuel sources for household equipment (e.g., stoves), supply fuel at CNG refueling stations, enhance crude oil recovery via oil well injection, and support storage tank peak shaving to balance supply and demand during high-usage periods. They also play a role in oil and gas field development (e.g., low-pressure associated gas recovery) and long-distance pipeline transportation (via multi-stage boosting).


Can the compressors be customized for specific needs?


Yes, all compressors are non-standard products offering tailored solutions based on customer requirements, including flow rate, gas purity, pressure, operating environment, and purpose. Customization options cover structural forms (D-type, M-type, S-type, W-type, V-type, Z-type), cooling methods (water cooling, air cooling, mixed cooling), installation forms (fixed, mobile, skid-mounted, cabin-type), and drive modes (motor-driven, diesel engine-started).


What cooling methods are available?


We offer multiple cooling options: water cooling, air cooling, and mixed cooling. Customers can select the method best suited to their operating environment to ensure optimal performance.


How are the compressors transported and packaged?


Transportation is flexible, with options for sea, air, or land shipping. Packaging choices include metal cabins, wooden boxes, and soundproof cabins, ensuring the equipment remains protected during transit.


What materials are used in the compressor body?


The body is made from HT250 casting, a high-strength material known for withstanding the rigors of long-term operation and varying working conditions, ensuring durability and reliability.


These compressors, backed by our expertise, are designed to meet the evolving needs of the natural gas industry, combining performance, durability, and flexibility for diverse applications.
