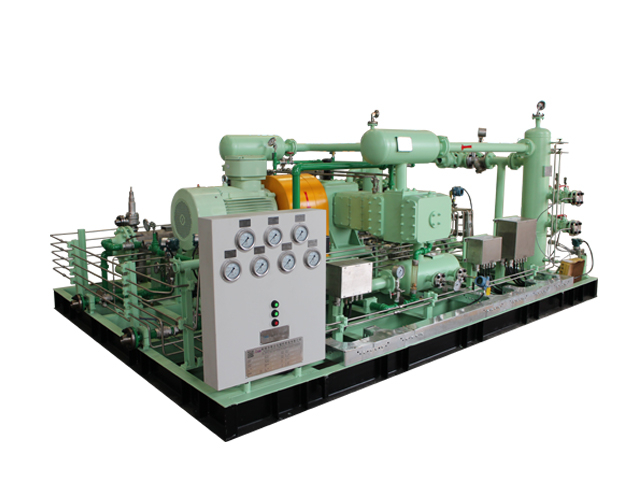

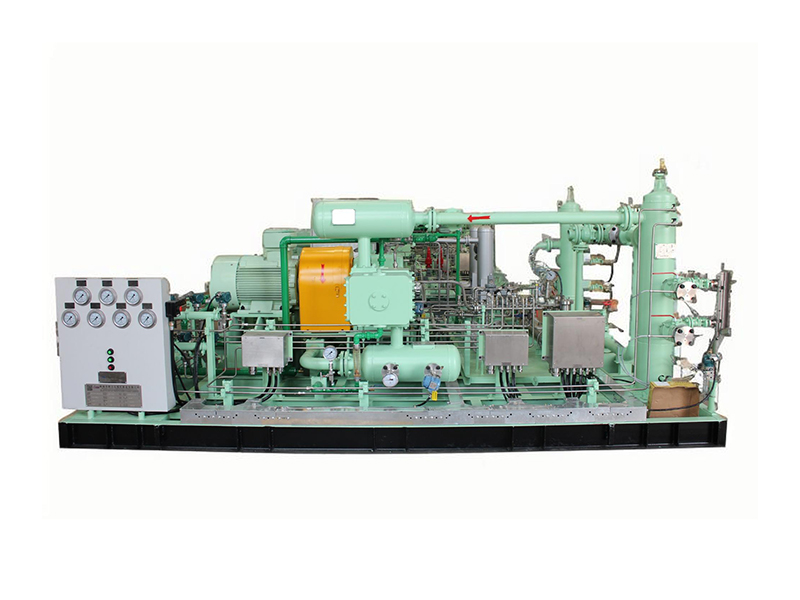

Product Description: DW-2.6,(0.5–2.8)-(2.5–4.8) Butane Gas Compressor
The DW-2.6 Butane Gas Compressor is a high-performance, oil-free reciprocating compressor designed for stable and efficient compression of butane gas. It features a rated flow capacity of 2.6 m³/min, with an inlet pressure range of 0.05 to 0.28 MPa and a discharge pressure range of 0.25 to 0.48 MPa. This model is particularly suitable for applications such as gas recovery, bottling, or storage transfer.
The compressor adopts a 100% oil-free structure, ensuring that the gas remains uncontaminated throughout the compression process. This is especially important for hydrocarbon gases like butane, where purity and operational safety are critical. The water-cooled cooling system allows reliable thermal control during long-term continuous operation.

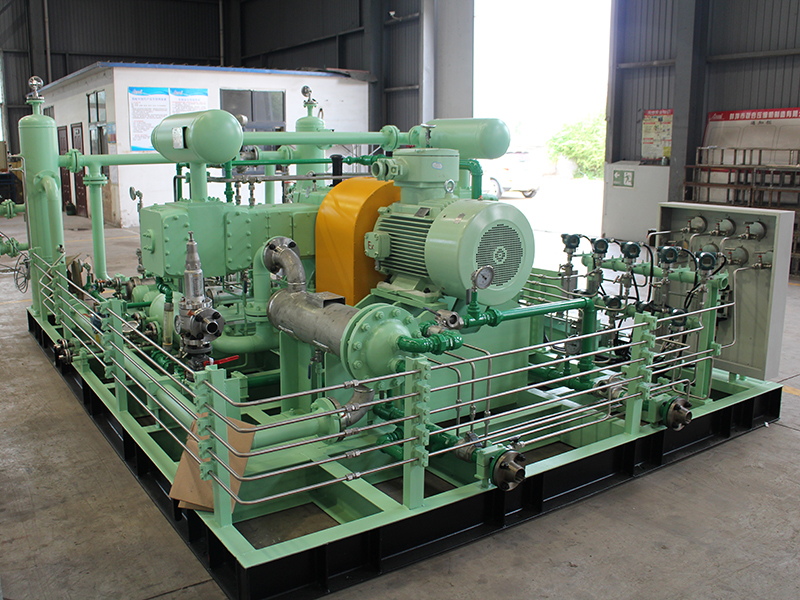

The unit is mounted on a compact skid structure, offering quick on-site setup and simplified maintenance. Key components are manufactured using wear-resistant materials to ensure durability under varying loads. The system also includes PLC-based control for easy monitoring of key operational parameters and alarm feedback.
Key Features:
Flow capacity: 2.6 m³/min
Suction pressure: 0.05–0.28 MPa
Discharge pressure: 0.25–0.48 MPa
100% oil-free compression
Water-cooled for efficient heat management
Compact skid-mounted design
PLC control system with status monitoring
