Bulk LPG transfer requires maximizing liquid yield while recovering residual vapor without causing costly terminal delays. At large terminals, slow product transfers trap trucks and railcars at the loading rack. This bottleneck racks up expensive demurrage charges and disrupts sensitive supply chains. Operators lose critical revenue when slow product transfers hold up transport networks.
To eliminate these hurdles, the procurement landscape is undergoing a massive shift. Plant managers are actively moving away from stick-built, component-level engineering. They now prioritize pre-packaged, factory-tested solutions to drastically reduce site-integration risks and accelerate deployment. Assembling discrete valves, pipes, and motors in the field invites unpredictable weather delays and inconsistent craftsmanship.
This article provides an objective framework for evaluating, specifying, and integrating a modern compression system. We explore the mechanical advantages of positive displacement technology for demanding vapor recovery tasks. You will learn how to navigate explosion-proof compliance and establish a reliable setup for bulk facilities and high-volume gas stations.

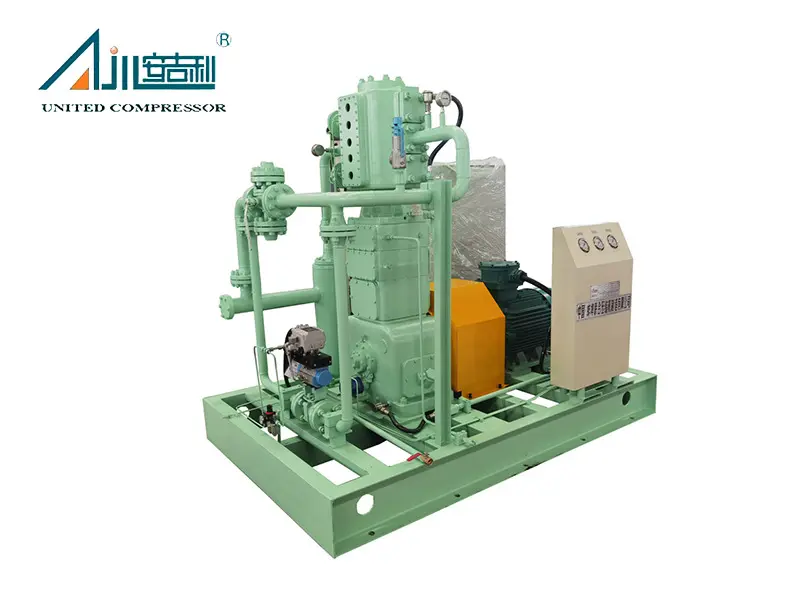

A true packaged system establishes clear physical and operational boundaries. You must know exactly what arrives on your site to prevent scope gaps between vendors. A standard turnkey unit typically includes several core components mounted on a single, rigid structural base.
When you choose a factory-tested skid mounted solution, you eliminate severe on-site risks. Stick-built systems require extensive field welding. Field welds often require costly non-destructive testing, such as X-ray inspections. They also suffer from frequent piping misalignment and multi-vendor integration delays. Factory assembly guarantees perfect alignment using precision jigs. Quality control happens in a controlled environment before the unit ever ships.
Modular designs also transform footprint and scalability planning. Multi-site bulk distribution terminals benefit heavily from standardized layouts. You can replicate the exact same concrete foundation pad across different geographical locations. This consistency simplifies operator training, as every terminal looks and functions identically. It also streamlines spare parts inventory across your entire network.
You will inevitably pay an upfront premium for a turnkey skid compared to buying bare components. However, this higher initial capital expenditure directly translates into massive operational savings. You eliminate expensive, specialized field labor rates. You drastically reduce operational downtime during the commissioning phase. Factory integration ensures the system runs correctly on day one without last-minute troubleshooting.
Handling liquefied petroleum gas presents unique thermodynamic and mechanical challenges. Pressures fluctuate wildly during transfer operations due to ambient temperature changes and varying tank levels. A piston compressor delivers unparalleled performance under these volatile conditions. Its positive displacement mechanism ensures consistent volumetric flow regardless of downstream resistance. It pushes through high differential pressures effortlessly. This mechanical advantage keeps product moving steadily when centrifugal pumps or alternative technologies might cavitate or stall.
Vapor recovery economics ultimately drive terminal profitability. Liquid transfer alone leaves thousands of gallons of valuable product behind as pressurized vapor. Piston technology efficiently evacuates these residual vapors from railcars and transport trucks. The unit creates a pressure differential. It pulls vapor from the transport vessel, compresses it, and pushes it back into the storage tank. This exact process translates trapped residual gas into recoverable, sellable product, paying for the equipment over time.
Engineers must choose carefully between mechanical and hydraulic drive options. Traditional mechanical crank-driven units dominate the industry. They offer straightforward maintenance, familiar crankcase lubrication, and proven historical reliability. Hydraulic configurations use pressurized fluid to stroke the pistons back and forth.
Compare the two drive options carefully. Mechanical drives offer excellent energy efficiency for continuous duty cycles. Hydraulic drives often run much quieter and provide smooth, inherently variable speed control. However, hydraulic systems introduce fluid maintenance complexities and potential leak points. Consider your facility's noise restrictions and expected daily duty cycle before selecting a drive type.
Drive Technology Comparison
| Drive Configuration | Energy Efficiency | Acoustic Profile | Operational Reliability |
|---|---|---|---|
| Mechanical Crank-Driven | High (Direct mechanical linkage) | Moderate to High | Excellent for continuous duty |
| Hydraulic Actuated | Moderate (Energy loss in fluid transfer) | Low (Fewer mechanical knocks) | Good (Requires strict fluid maintenance) |
Safety dictates every single design decision in hazardous environments. You must verify strict explosion-proof credentialing before authorizing any purchase. Look for ATEX or IECEx certifications specifically rated for Zone 1 or Zone 2 hazardous areas. These global standards cover electric motors, control panels, junction boxes, and all skid wiring. Non-compliant electrical components invite catastrophic ignition risks when handling flammable gases.
Material compatibility extends far beyond standard commercial propane. A versatile LPG compressor must confidently handle mixed-stream NGLs, pure propane, and varying grades of butane. Engineers must specify compatible process valves, mechanical seals, and O-rings. Incompatible elastomers swell, blister, or degrade rapidly when exposed to heavier hydrocarbons. This chemical degradation causes severe gas leaks and triggers costly unplanned shutdowns.
Vibration control demands heavy-duty structural integrity. Reciprocating forces generate intense kinetic energy during operation. The structural base must possess enough mass and rigidity to absorb this constant vibration. Flimsy channel-iron frames transfer shaking directly into the connected process piping. This continuous movement causes pipeline fatigue, loosens flange bolts, and ultimately leads to critical weld failures.
Liquid slugging destroys compressor cylinders instantly because liquids are incompressible. You must implement robust liquid protection systems on the skid.
The knock-out trap catches stray liquid droplets before they enter the compression chamber. The float switches cut power instantly if liquid levels rise dangerously high.
Many procurement teams deeply misunderstand the "plug-and-play" label. A pre-packaged system still requires rigorous site preparation. You cannot drop a heavy, vibrating machine onto uncompacted gravel or thin asphalt. You must mount the skid on a perfectly leveled, poured concrete foundation. Industry standards often dictate foundation mass should weigh three to five times the equipment's total weight to adequately dampen operational vibration. Poor civil engineering undermines the most sophisticated mechanical designs.
Routine maintenance remains an unavoidable reality for any reciprocating machine. These units consume wear parts regularly due to friction. Piston rings, rod packing, and gas valves require scheduled replacement to maintain peak volumetric efficiency. You should evaluate skids prioritizing open serviceability. Technicians need easy wrench access to the compressor head and cylinders. They should never have to disassemble surrounding process piping just to reach internal wear components. A well-designed LPG piston compressor for bulk distribution provides ample physical clearance for routine service.
Digital integration presents another critical implementation hurdle. You must seamlessly connect the skid's local control panel to your facility's central telemetry network. Modern distribution terminals rely on sophisticated SCADA or Distributed Control Systems (DCS) for remote monitoring. Wiring these communication protocols requires specialized automation engineers. You must ensure the local PLC supports standard industrial protocols like Modbus RTU, Modbus TCP/IP, or Ethernet/IP to avoid communication bottlenecks.
Accurate equipment sizing requires precise, real-world application data. You must provide vendors with highly specific operating parameters to avoid costly misapplications. Define your absolute minimum and maximum inlet pressures accurately. State your required discharge pressures based on downstream tank resistance. Specify the target flow rate or capacity in Actual Cubic Feet per Minute (ACFM) or cubic meters per hour. Always detail the exact gas composition, including any expected impurities. A generic specification inevitably leads to an undersized or severely overpowered machine.
Evaluate potential vendors based heavily on their deep engineering support capabilities. A top-tier manufacturer provides custom Piping and Instrumentation Diagrams (P&ID) long before metal is cut. They supply precise 3D CAD models to help your team finalize site planning and piping runs. They also deliver comprehensive Factory Acceptance Testing (FAT) documentation. This critical paperwork proves the gas compressor meets all performance guarantees, vibration baselines, and temperature limits before shipping.
Your immediate next action is creating a standardized Request for Quote (RFQ) to send to your shortlisted vendors.
This structured approach forces vendors to provide comparable, transparent bids, eliminating hidden costs and vague promises.
A: Custom packaged systems usually require 16 to 24 weeks for delivery. Bare compressors ship faster, often within 8 weeks. However, engineering the base, piping, and explosion-proof controls adds significant manufacturing time. Global supply chain constraints for specialized valves and ATEX-certified electrical components can also extend these timelines.
A: Yes. A single unit performs both functions seamlessly when equipped with a four-way flow-reversing valve. This specialized valve alters the flow direction without changing the piping connections. It allows operators to push liquid during the initial transfer and then immediately switch to evacuating residual vapor.
A: Replacement intervals depend heavily on duty cycles and gas cleanliness. Continuous heavy-duty applications may require new rings every 8,000 to 10,000 operating hours. Intermittent terminal operations often see rings last up to 15,000 hours. Filtering out pipe scale and particulates significantly extends ring lifespan.
A: No. It eliminates the need for extensive field design engineering and complex mechanical assembly. However, you still need on-site engineers for commissioning. Professionals must oversee the concrete foundation pouring, electrical telemetry integration, and final safety hook-up procedures before startup.
