Managing Boil-Off Gas (BOG) at extreme cryogenic temperatures near -160°C presents a critical operational bottleneck. Modern terminals face constant challenges to capture these vapors efficiently. It requires robust engineering to prevent immense energy loss. Selecting the right gas compressor dictates reliquefaction efficiency and strict safety compliance. Equipment failures here can lead to hazardous pressure buildups. Operators must rapidly balance thermodynamic limits against mechanical constraints.
For variable flow rates, a reliable BOG gas piston compressor for LNG handling often becomes the industry standard. However, successful deployment demands a rigorous evaluation of material metallurgy. You will discover how to navigate these precise technical requirements. We will explore ways to mitigate installation risks and manage operational expenses effectively. You can then ensure long-term stability across your cryogenic processes.
Liquefied Natural Gas (LNG) storage presents an unavoidable thermodynamic reality. Storage tanks and connecting pipelines constantly absorb ambient heat. This constant heat ingress causes the cryogenic liquid to boil. The resulting vapor must leave the tank safely. Otherwise, internal pressure will escalate beyond safe design limits. Facilities must recover this vapor continuously. Recovery prevents valuable product loss and eliminates dangerous flaring events.

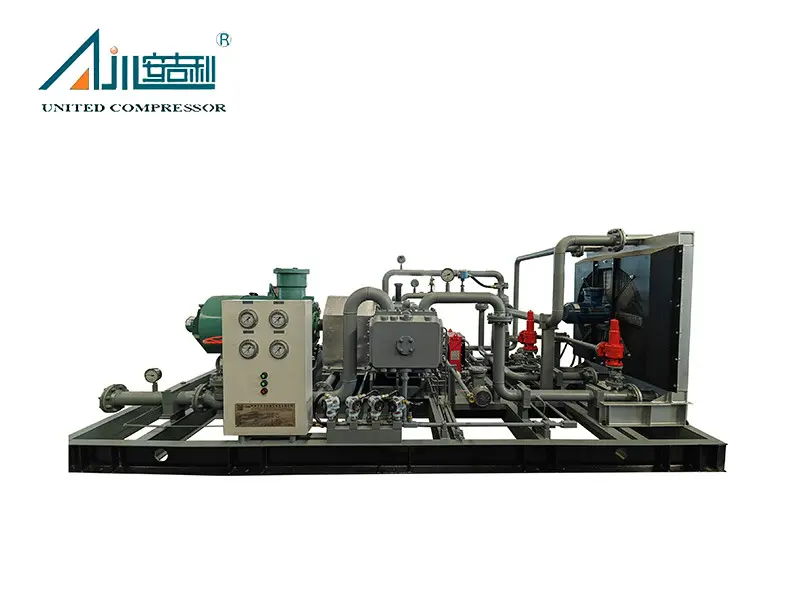

You need a highly dependable BOG compressor to extract these vapors. The machine draws gas from the tank and boosts its pressure. Operators then route this pressurized gas to reliquefaction plants. Alternatively, they inject it directly into high-pressure gas grids. A successful equipment deployment relies on several non-negotiable success criteria.
Operating realities add further complexity. Suction temperatures frequently hover at or below -150°C. Conventional metals become dangerously brittle under these conditions. The equipment must absorb severe thermal shock safely. A warm machine taking in sudden cryogenic gas experiences rapid dimensional changes. Engineers must design the compressor block to handle this stress without structural degradation.
Best Practice: Always implement a controlled, gradual cooldown sequence. Introduce cold vapors slowly before initiating full-load operations. This prevents catastrophic internal cracking.
Engineers typically evaluate two primary technology categories for vapor recovery. They look at reciprocating (piston) technologies and dynamic (centrifugal) technologies. Both methods offer distinct advantages for specific operational envelopes. Centrifugal units handle massive, steady flow rates beautifully. They operate smoothly and require smaller physical foundations. However, terminal operations rarely offer perfectly steady conditions.
Piston units rely on positive displacement. A piston moves inside a cylinder to reduce volume and increase pressure. This mechanical action delivers specific operational advantages. We must understand exactly where the positive displacement approach objectively wins.
We must remain objective and acknowledge inherent skepticism. A reciprocating machine possesses a larger physical footprint. The alternating mechanical motion generates heavy pulsation. Engineers must design complex dampening systems to protect surrounding pipework. Furthermore, reciprocating systems contain significantly more moving parts. This mechanical complexity directly impacts lifecycle maintenance schedules.
Technology Comparison Chart
| Evaluation Criteria | Reciprocating (Piston) | Dynamic (Centrifugal) |
|---|---|---|
| Flow Flexibility (Turndown) | Excellent (Can drop to 10% capacity) | Limited (Surge risks at low flow) |
| Pressure Capability | Very High (Ideal for grid injection) | Moderate (Requires many stages) |
| Physical Footprint | Large | Compact |
| Pulsation Management | Mandatory Dampers Required | Not Applicable (Smooth Flow) |
| Maintenance Frequency | Higher (Wear parts replace often) | Lower (Fewer rubbing parts) |
Common Mistake: Do not select a dynamic unit for terminals experiencing wild daily temperature swings. Low flow conditions will quickly push a centrifugal machine into a dangerous surge state.
Cryogenic environments destroy standard industrial equipment. You cannot use ordinary carbon steel components. Carbon steel undergoes a ductile-to-brittle transition when exposed to extreme cold. It shatters under minimal mechanical stress. Therefore, rigorous material science dictates every engineering decision. Manufacturers must utilize specific grades of austenitic stainless steel. Alloys like 304L or 316L maintain their structural toughness at absolute minimum operating temperatures.
Handling low temperature gas demands an entirely oil-free design. Lubricated cylinders pose a catastrophic risk to LNG handling systems. Liquid oil instantly freezes solid upon contacting cryogenic vapors. Frozen oil debris will rapidly destroy delicate downstream heat exchangers. It completely blocks narrow cooling passages. Therefore, non-lubricated sealing technology is absolutely mandatory.
Engineers achieve oil-free compression through specialized polymer blends. They utilize Polytetrafluoroethylene (PTFE) rings filled with bronze, carbon, or glass fibers. These composite piston rings provide internal dry lubrication. They seal the cold gas without introducing external fluids. Specialized packing cases further ensure volatile vapors never escape the compression chamber.
Uneven thermal contraction creates another critical evaluation dimension. A massive metal cylinder shrinks when exposed to cryogenic temperatures. However, it does not shrink evenly. The suction side experiences colder temperatures than the discharge side. A poorly designed piston will bind inside a distorted cylinder. The design must feature exact internal clearances. These clearances accommodate aggressive thermal shifting during both cool-down and warm-up phases.
Industry standards enforce these safety parameters. You must evaluate equipment against API 618 guidelines. This framework governs reciprocating compressors for hazardous petroleum and gas services. Local hazardous area certifications also apply. Look for comprehensive ATEX or IECEx approvals. These certifications verify the machine will not ignite explosive vapor mixtures.
Installing a massive positive displacement machine requires serious civil engineering. You cannot place these units on standard concrete slabs. The reciprocating mass generates massive unbalanced shaking forces. These dynamic forces will crack weak foundations quickly. Engineers must pour dedicated, isolated concrete blocks. The concrete mass usually needs to weigh three to five times more than the machine itself.
Acoustical and pulsation analysis is equally critical. API 618 Design Approach 2 or 3 is usually mandatory. Engineers use advanced software to model the entire piping system. They simulate how gas pressure waves travel through the pipes. Without proper pulsation bottles and orifice plates, these waves vibrate pipelines violently. Severe vibration eventually leads to catastrophic pipe rupture.
We must remain transparent about operational maintenance realities. A piston compressor contains highly stressed wearing parts. Valves, piston rings, and rider bands have finite lifespans. They rub continuously against metal surfaces. Dry nitrogen purge systems further accelerate this wear. You must evaluate vendors based on guaranteed Mean Time Between Failures (MTBF). Do not accept theoretical performance charts. Demand actual MTBF data recorded under real cryogenic conditions.
Maintenance events require system downtime. You cannot stop extracting vapor during these events. Therefore, the industry relies on an N+1 redundancy logic. Facilities install one primary machine and one identical standby unit. This ensures uninterrupted vapor extraction. The standby unit takes over seamlessly while technicians replace valves on the primary machine. This redundancy prevents dangerous tank pressurization and costly emergency flaring.
Procurement teams often rely on basic flow and pressure metrics. This approach guarantees long-term operational failure. You must adopt an outcome-based specifying strategy. The machine will encounter a massive temperature envelope over its lifespan. Startup conditions might involve warm ambient gas. Normal operations involve extreme cryogenic vapors. Require vendors to provide verified performance data across this entire spectrum. The machine must perform reliably during worst-case warm vapor scenarios.
Vendor experience requires aggressive verification. Do not accept general natural gas processing experience. Pipeline compressors operate in vastly different conditions. Recommend asking vendors for verifiable reference cases. They must show successful deployments specifically in onshore receiving terminals. Peak-shaving plants also serve as excellent reference sites. These facilities mirror the exact thermal shocks your equipment will endure.
You need a rigid framework for your Request for Quotation (RFQ). Capital expenditure (CAPEX) represents only a fraction of the total financial commitment. You must heavily weight lifecycle operational expenses (OPEX). Factor in the expected frequency of valve replacements. Calculate the cost of replacement PTFE rings over a twenty-year lifespan.
Finally, mandate rigorous Factory Acceptance Testing (FAT). The vendor must prove the machine works before shipping it. Standard air testing proves nothing. Demand FAT execution using cryogenic liquid nitrogen. Liquid nitrogen testing safely simulates the extreme thermal contraction the machine will face on site. If the vendor refuses cryogenic testing, immediately remove them from your shortlist.
Specifying vapor recovery equipment requires intense technical scrutiny. Success is less about base compression capability. It is entirely about extreme-temperature reliability and variable-load flexibility. Piston units deliver the exact operational flexibility modern terminals demand.
You must prioritize precise metallurgy and oil-free sealing technologies. These features protect your downstream assets from freezing and contamination. Never underestimate the importance of dynamic foundation planning and pulsation analysis. Overlooking these steps guarantees dangerous system vibrations.
Procurement and engineering teams must align strictly. Enforce API 618 compliance across all vendor proposals. Prioritize lifecycle maintenance evaluations over initial purchase prices. Demand cryogenic testing before delivery. Following these stringent steps ensures a safe, highly efficient terminal operation.
A: These machines routinely handle suction temperatures dropping to -160°C. Their exact thermal limit depends entirely on cylinder metallurgy. Manufacturers utilize specific austenitic stainless steel grades, like 316L, to prevent cold embrittlement. Standard carbon steel would shatter under these extreme cryogenic conditions.
A: Oil-free designs prevent catastrophic system blockages. If lubricated cylinders are used, volatile gas carries microscopic oil droplets downstream. This oil instantly freezes solid inside cryogenic heat exchangers. Frozen oil debris destroys cooling efficiency and requires massive facility shutdowns to clean.
A: Centrifugal units struggle with low flows and often require bypass valves to avoid dangerous surge conditions. Conversely, reciprocating units utilize stepless capacity control systems or variable speed drives. This mechanical advantage allows them to handle highly fluctuating tank vapor volumes efficiently.
