ZW-1.8/(8~13)-15
ANJILI
| Quantity: | |
|---|---|

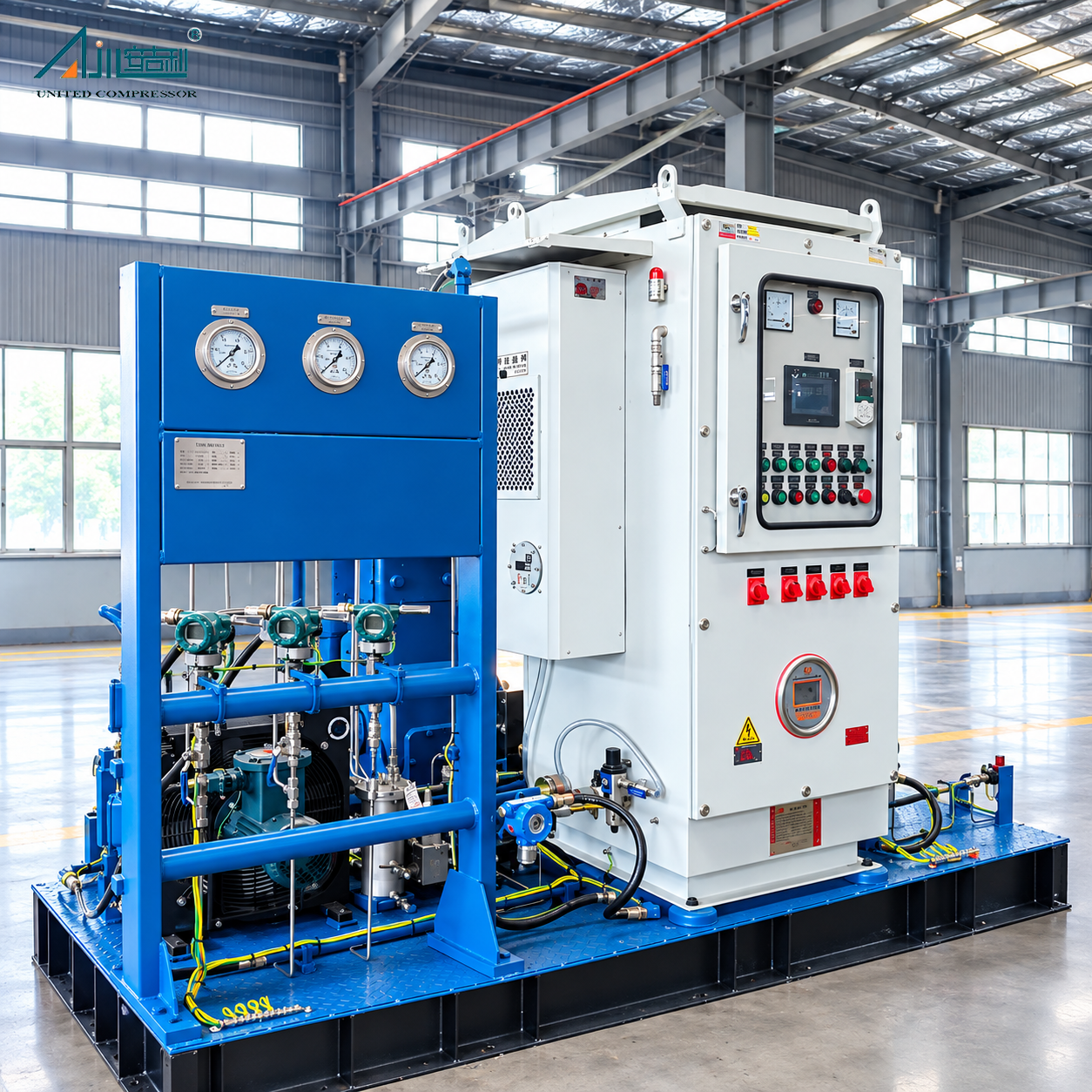

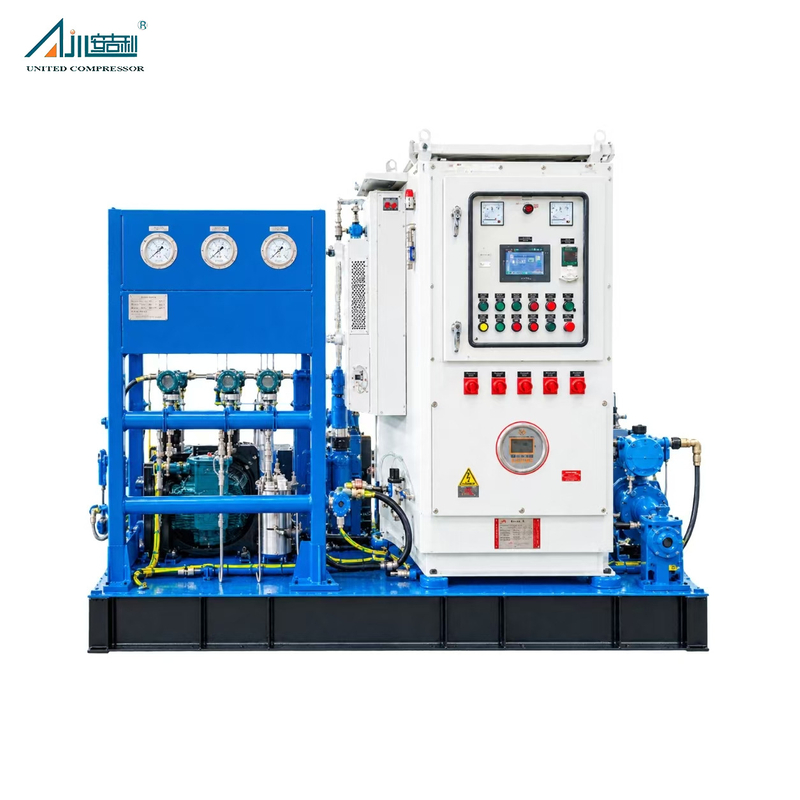

The ZW-1.8/(8~13)-15 propane gas compressor is a compact industrial gas compressor designed for propane gas compression applications requiring an inlet pressure of 8–13 bar(g) and a discharge pressure of 15 bar(g).
With a nominal gas flow rate of approximately 1.8 m³/min, a capacity of approximately 2,250 kg/h, and a 30 kW main motor, this compressor is suitable for industrial propane gas handling and compression systems where stable pressure boosting and reliable continuous operation are required.
The complete compressor package has approximate dimensions of 3,000 × 2,000 × 2,000 mm and a total weight of approximately 3.5 tonnes.
| Parameter | Specification |
|---|---|
| Compressor Model | ZW-1.8/(8~13)-15 |
| Gas Medium | Propane Gas |
| Gas Composition | Propane, composition to be confirmed |
| Flow Rate | 1.8 m³/min |
| Capacity | Approx. 2,250 kg/h |
| Inlet Pressure | 8–13 bar(g) |
| Discharge Pressure | 15 bar(g) |
| Main Motor Power | 30 kW |
| Overall Dimensions | Approx. 3,000 × 2,000 × 2,000 mm |
| Total Weight | Approx. 3.5 tonnes |
We can offer technical parameter for you
Structural form: D-type/M-type/S-type/W-type/V-type/Z-type
Cooling method: water cooling/air cooling/mixed cooling
Installation form: fixed/mobile/pry mounted/cabin type
Drive mode: motor drive/diesel engine start
Transportation: sea/air/land
Packaging as follows:
 |  |  |
| Metal cabin | Wooden box | Soundproof cabin |
Project Case
 |  |  |
| Lanzhou petrochemical company 240000 tonsyear ethylene production capacity restoration - adding butadiene and 1-butene unloading facilities project | Alibek oilfield in Southern Kazakhstan | Procurement of Molecular Sieve Dehydration, Ethylene Glycol Regeneration and Injection Device, and Fuel Gas Skid in Akimom Gas Field |
The ZW-1.8/(8~13)-15 can be considered for propane gas compression applications such as:
Propane gas transfer systems
Propane gas pressure boosting
LPG-related industrial gas systems
Propane storage and handling systems
Gas filling and transfer facilities
Industrial gas compression systems
Gas recovery and circulation systems
Process gas compression
FAQ
This model is specified for propane gas. Final compressor suitability should be confirmed based on the actual gas composition and operating conditions.
The specified inlet pressure range is 8–13 bar(g).
The specified discharge pressure is 15 bar(g).
The nominal flow rate provided for this model is approximately 1.8 m³/min, with a stated capacity of approximately 2,250 kg/h.
The specified main motor power is 30 kW. Motor voltage, frequency, protection class and hazardous-area requirements should be confirmed according to the installation location.
Yes. Compressor selection and package configuration can be adjusted according to gas composition, flow rate, inlet pressure, discharge pressure, temperature, electrical requirements and installation conditions.
Technical documentation such as GA drawings, P&IDs, datasheets and other project documents can be provided according to the agreed scope.
To receive a technical quotation, please provide:
Gas: Propane gas
Flow rate: ______ m³/min or kg/h
Inlet pressure: ______ bar(g)
Discharge pressure: ______ bar(g)
Inlet temperature: ______ °C
Gas composition: Upload file
Motor voltage: ______ V
Frequency: ______ Hz
Installation location: ______
Required standard: ______
Project quantity: ______ sets
