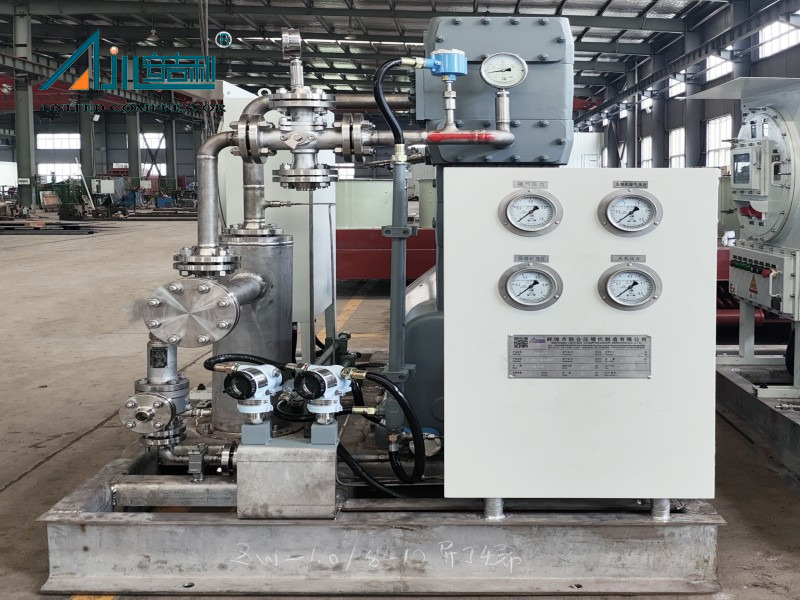

The ZW-1.0/8-10 Isobutylene Compressor is a high-performance industrial equipment designed for efficient handling of liquefied petroleum gas (LPG) and other low-boiling, volatile substances. Manufactured by Bengbu United Compressor, this compressor stands out for its reliability, versatility, and tailored functionality, making it a top choice for various industrial applications.
At its core, the ZW-1.0/8-10 Isobutylene Compressor delivers a processing capacity of 1m³/min, operating with an inlet pressure of 0.8MPa.G and an inlet temperature of ≤40℃, while achieving an exhaust pressure of 1MPa.G—all powered by a 15kW main motor. Its compact design, with overall dimensions of ~1650 × 650 × 1050mm and total weight of ~650KG, ensures easy integration into existing setups without sacrificing performance.
This compressor is widely used in LPG storage and distribution stations, mixing stations, gasification plants, canning facilities, and automobile refueling stations, catering to both large, medium, and small-scale operations. Beyond LPG, it excels in liquid transportation and residual gas recovery for substances like propane, butane, butene, and even variant models can handle propylene and liquid ammonia, making it a versatile asset across chemical and energy sectors.
The ZW-1.0/8-10 is engineered for peak efficiency, with a high degree of automation that reduces manual intervention and minimizes errors. Its oil-free lubrication design is a standout feature: it prevents compressor oil from mixing with the processed medium (e.g., isobutylene, LPG), ensuring pure gas/liquid output that meets strict industry standards for product quality and safety. The D-type symmetrical balance structure further enhances efficiency by reducing vibration and balancing operational stress, extending the lifespan of key components like pistons and cylinders.
Design Advantages
High safety standards
Customized materials and sealing
Stable and continuous operation
Operators benefit from the ZW-1.0/8-10’s simplified design, which reduces the number of wearable parts and lowers maintenance frequency. This cuts maintenance costs and minimizes downtime, keeping industrial processes running smoothly. The compressor operates at low vibration and noise levels (below industry averages for similar equipment), creating a safer, more comfortable working environment for on-site personnel. Routine tasks—such as filter checks and oil level inspections—are streamlined, with easy access to critical parts, ensuring even non-specialized operators can perform basic upkeep.
To adapt to varied industrial requirements, the ZW-1.0/8-10 offers extensive customization options:
• Structural forms: Choose from D-type (standard), M-type, S-type, W-type, V-type, or Z-type configurations to match site space and layout.
• Cooling methods: Select air-cooled (standard), water-cooled, or mixed cooling systems based on local climate and cooling efficiency needs.
• Installation types: Opt for fixed, mobile, skid-mounted, or cabin-type setups, adapting to stationary facilities (e.g., LPG storage stations) or mobile on-site projects (e.g., temporary chemical transport).
• Drive modes: The standard motor-driven system can be replaced with a diesel engine, depending on power availability at remote sites.
Suitable for butane, isobutane, butadiene, isoprene
Designed for toxic and corrosive gases
Strict material and sealing selection
Given its focus on LPG and low-boiling substances, the ZW-1.0/8-10 includes safety-centric design elements. The double middle body structure prevents oil from entering the cylinder, eliminating the risk of oil contamination that could lead to combustion or medium degradation. The cylinder and cylinder head—crafted from gray cast iron or forged steel—are pressure-resistant and corrosion-proof, withstanding the chemical properties of volatile media like isobutylene or propane. For hazardous environments, explosion-proof modifications (e.g., explosion-proof motors, pressure relief valves) are available as an option.
Chemical Gas Applications
Mixed Butane / Isobutane / n-Pentane
Vinyl Chloride / Chloromethane
Ethylene Oxide / Propylene Oxide
Dimethylamine
The ZW-1.0/8-10 Isobutylene Compressor is widely used in sectors focused on LPG and volatile substance handling, with key applications including:
• LPG Storage & Distribution Stations: Facilitates loading, unloading, and pouring of LPG, as well as residual gas recovery to minimize waste and ensure safety.
• LPG Mixing Stations: Provides stable compression for blending LPG with other gases (e.g., propane), maintaining consistent mixture ratios for residential or industrial use.
• Gasification Plants & Canning Facilities: Supports the gasification of liquid LPG and the canning of compressed gases into cylinders for retail (e.g., camping fuel) or industrial applications.
• Automobile Refueling Stations: Supplies compressed LPG to fuel vehicles, with adjustable pressure settings to match different vehicle engine requirements.
 | A piston rod thread protective sleeve ZL 2017 2 1907021.7 | | A piston ring support device ZL 2018 2 0294776.2 | |
| A range piston ZL 2017 2 190177.0 for symmetrical balanced compressors | | Integrated long short double compartment ZL 2018 2 0294762.0 |
| |

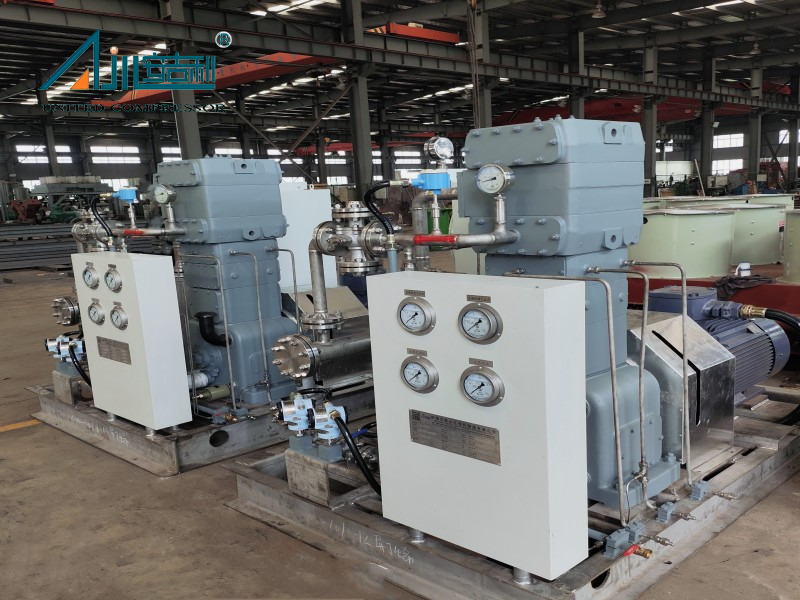

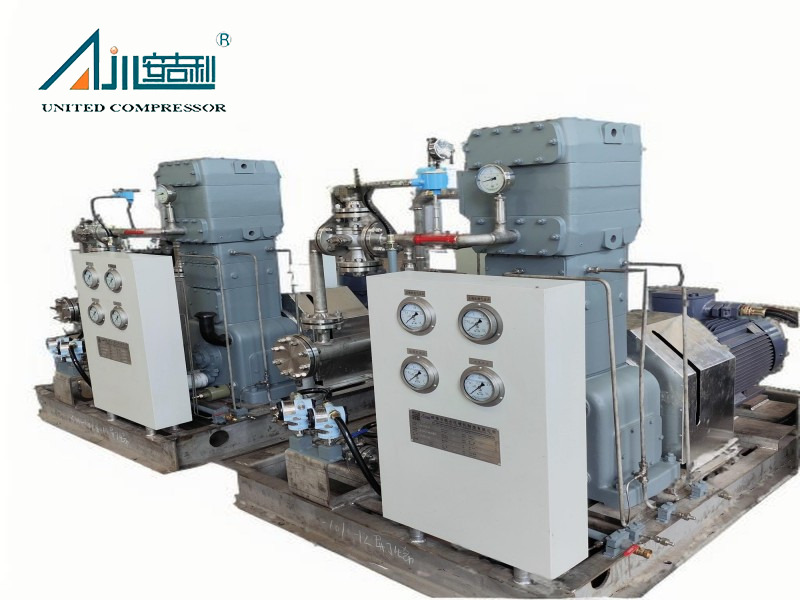

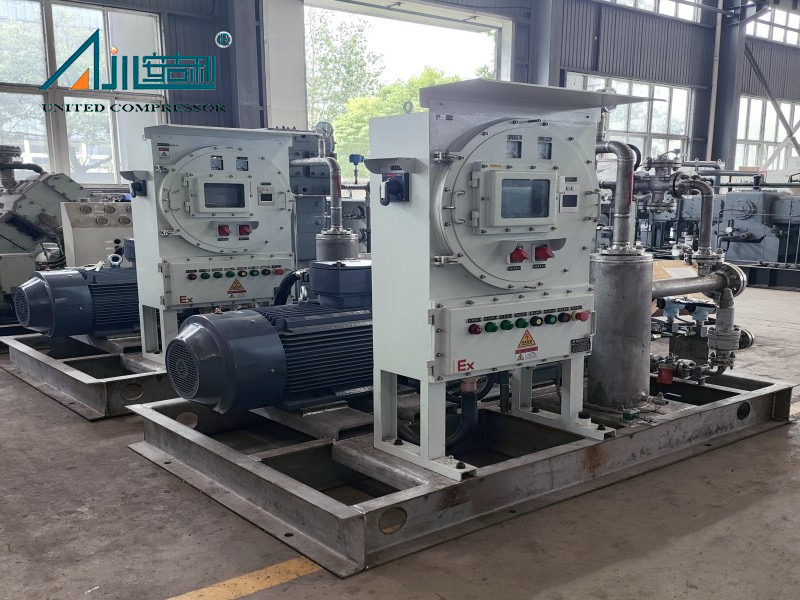

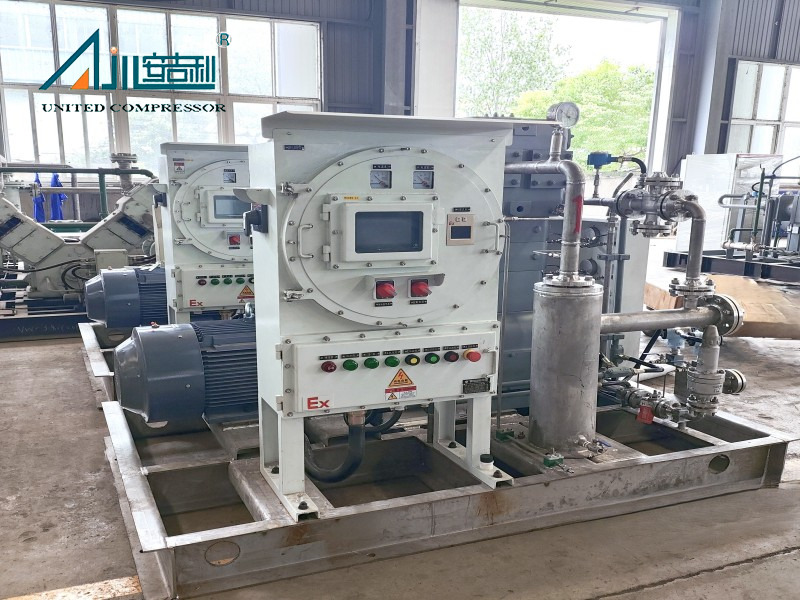

The compressor in this picture is a non-standard product. The product provides independent solutions tailored to customers' specific usage requirements (flow rate/purity/pressure, usage environment, main purpose, and customer specific requirements), from design to product customization.
Structural form: D-type/M-type/S-type/W-type/V-type/Z-type
Cooling method: water cooling/air cooling/mixed cooling
Installation form: fixed/mobile/pry mounted/cabin type
Drive mode: motor drive/diesel engine start
Transportation: sea/air/land
Packaging:
 |  |  |
| Metal cabin | Wooden box | Soundproof cabin |
| No. | Model | Medium | Flow rate (Nm3/h) | Exhaust pressure MPa（G) |  Motor power(kW) | oling meth | Overall dimensions (mm) | Weights (kg) | |
| 1 | ZW-0.8/（4.5～15）-（12.5～23） | Industrial ammonia | 0.8 | 1.25～2.3 | 15 | Air-cooled | 1650×650×1050 | 550 | |
| 2 | ZW-0.8/10-16 | Isobutane | 0.8 | 1.6 | 11 | Air-cooled | 1650×650×1150 | 450 | |
| 3 | ZW-0.8/10-16 | Liquefied gas | 0.8 | 1.6 | 11 | Air-cooled | 1750×900×1250 | 1200 | |
| 4 | ZW-0.8/16-24 | Ammonia gas | 0.8 | 2.4 | 15 | Air-cooled | 1800×950×1250 | 1300 | |
| 5 | ZW-1.0/（1～10）-（5～14） | Methylene chloride | 1.0 | 0.5～1.4 | 15 | Air-cooled | 1700×850×1050 | 600 | |
| 6 | ZW-1.0/（1～6）-（4～9） | Dimethylamine | 1.0 | 0.4～0.9 | 15 | Air-cooled | 1700×850×1050 | 600 | |
| 7 | ZW-1. 1/10-15 | Ammonia gas | 1.1 | 1.5 | 15 | Air-cooled | 1700×850×1100 | 700 | |
| 8 | ZW-1. 1/10-16 | Liquefied gas | 1.1 | 1.6 | 15 | Air-cooled | 1800×950×1250 | 1300 | |
| 9 | ZW-1. 1/16-24 | Ammonia gas | 1.1 | 2.4 | 22 | Air-cooled | 1650×850×1050 | 750 | |
| 10 | ZW-1. 1/16-24 | Ammonia gas | 1.1 | 2.4 | 22 | Air-cooled | 1850×950×1300 | 1400 | |
| 11 | ZW-1.5/10-16 | Liquefied gas | 1.5 | 1.6 | 22 | Air-cooled | 1850×950×1300 | 1400 | |
| 12 | ZW-1.5/16-24 | Ammonia gas | 1.5 | 2.4 | 30 | Air-cooled | 1900×980×1300 | 1500 | |
| 13 | ZW-2.0/10-16 | Isobutylene | 2.0 | 1.6 | 36 | Air-cooled | 1900×900×1200 | 900 | |
| 14 | ZW-3.0/10-16 | Liquefied gas | 3.0 | 1.6 | 45 | Air-cooled | 2200×1400×1750 | 2000 | |
| 15 | DW-3.0/10-15 | Ammonia gas | 3.0 | 1～1.5 | 45 | Water-coole | d3200×2200×1700 | 3500 | |
| 16 | PW-2.2/(3.98～14.6)-(7.5～18. 1) | Ammonia gas | 2.2 | 0.75～1.8 | 30 | Water-cooled | 2300×1500×1800 | 2500 | |
| 17 | VW-6.0/10-16 | Liquefied gas | 6.0 | 1.6 | 75 | Water-coole | d 2800×1700×1700 | 3000 | |
| 18 | VW-8.0/10-16 | Liquefied gas | 8.0 | 1.6 | 110 | Water-coole | d 2800×1800×1800 | 4500 | |
| 19 | ZW-0.5/（3.5～5.8）-（7.2～9.5） | Methylamine | 0.5 | 0.72～0.95 | 7.5 | Water-cooled | 1650×700×1100 | 700 | |
| 20 | ZW-0.8/（0～3.5）-（3～6.5） | Vinyl chloride | 0.8 | 0.3～0.65 | 11 | Water-cooled | 1650×650×1150 | 650 | |
| 21 | ZW-0.8/(2～15)-20 | Propane | 0.8 | 2.0 | 22 | Water-coole | d 3000×1800×2400 | 3500 | |
| 22 | ZW-0.8/3-8 | n-Butane | 0.8 | 0.3～0.8 | 11 | Water-cooled | 1650×850×1050 | 600 | |
| 23 | ZW-1.0/3-6 | Pentane | 1.0 | 0.3～0.6 | 11 | Water-cooled | 1700×850×1050 | 650 | |
| 24 | ZW-1. 1/10-16 | Propane | 1.1 | 1.6 | 18.5 | Water-cooled | 1700×650×1100 | 600 | |
| 25 | ZW-1. 1/7-14 | Propane | 1.1 | 0.7～1.4 | 15 | Water-cooled | 1700×650×1100 | 600 | |
| 26 | ZW-1.5/10-16 | Propylene | 1.5 | 11.6 | 22 | Water-coole | d 2200×1600×1600 | 1500 | |
| 27 | ZW-1.5/16-24 | Propylene | 1.5 | 2.4 | 30 | Water-coole | d 2300×1600×1650 | 1500 | |
| 28 | ZW-2.0/10-16 | Liquefied gas | 2.0 | 1.6 | 30 | Water-cooled | 1900×980×1300 | 1500 | |
| 29 | ZW-2.0/16-24 | Liquefied gas | 2.0 | 2.4 | 37 | Water-cooled | 1900×100×1350 | 1600 | |
| 30 | ZW-3.0/7-12 | Liquefied gas | 3.0 | 1.2 | 45 | Water-coole | d 2200×1000×1200 | 1600 | |
The ZW-1.0/8-10 is primarily designed for isobutylene and LPG. It also efficiently processes other low-boiling, volatile substances including propane, butane, and butene. For specialized needs, variant models can handle propylene and liquid ammonia, with customization available to match specific medium properties (e.g., boiling point, chemical reactivity).
Yes. The ZW-1.0/8-10’s standard compact design (~1650 × 650 × 1050 mm) is already optimized for small spaces, but clients can further select slim structural forms (e.g., V-type or Z-type) or wall-mounted installation to maximize space efficiency. Cabin-type packaging can also integrate the compressor into a compact, enclosed unit for indoor facilities like urban LPG stations.
The ZW-1.0/8-10 requires minimal maintenance. We recommend routine checks (e.g., lubricating oil level inspection, air filter cleaning) every 300 operating hours. For comprehensive maintenance (e.g., component replacement, pressure calibration), a 1000 operating hours schedule is suggested. Intervals can be adjusted based on usage intensity and environmental conditions (e.g., dusty or high-humidity sites may require more frequent checks).
The standard model includes basic safety features, but explosion-proof modifications are available as a customization option. These modifications—including explosion-proof motors, spark-resistant components, and pressure relief valves—ensure compliance with safety standards for handling flammable media (e.g., LPG, isobutylene) in hazardous environments. Clients can request explosion-proof certification (e.g., ATEX, IECEx) based on regional requirements.
