The VF-0.32/(30-200)-250 V-type high-pressure CNG reciprocating compressor from Bengbu United Compressor offers steady natural gas pressurization.
It runs 600–1800 Nm³/h flow, 3–20 MPa.G inlet and 25 MPa.G discharge pressure with a 90kW energy-saving motor to cut operating costs.
Suitable for CNG pipeline boosting, chemical, pharmaceutical, food and machinery processing, its modular build fits standard and customized working conditions.
This V-type CNG compressor adopts an oil-free structure to keep gas clean for food and pharmaceutical use. Balanced layout cuts vibration and noise, lessens wearing parts and maintenance costs.
Full automatic control supports real-time monitoring of pressure, temperature and flow. All core parts are easy to reach for quick inspection and repair.

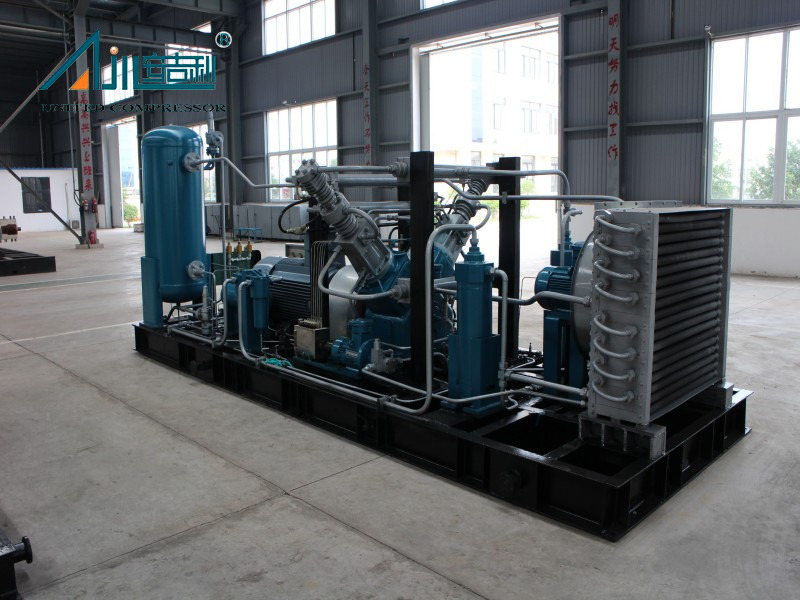

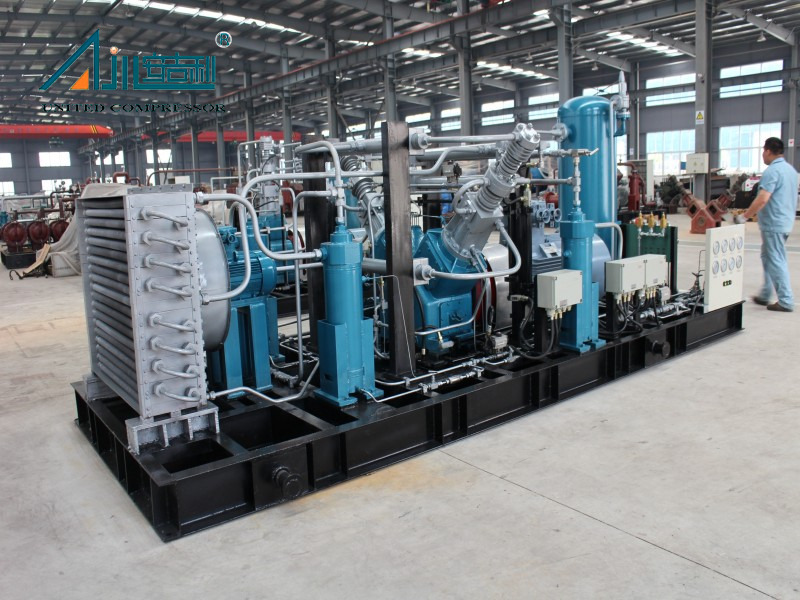

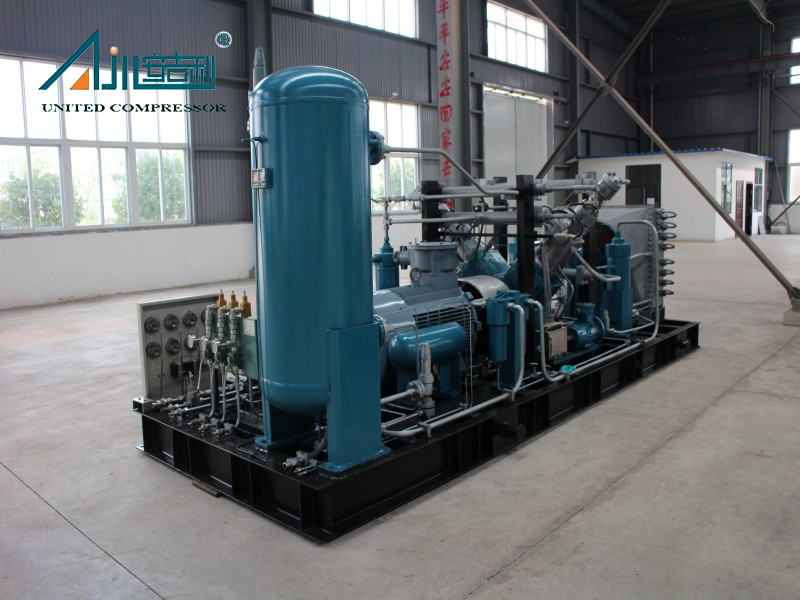

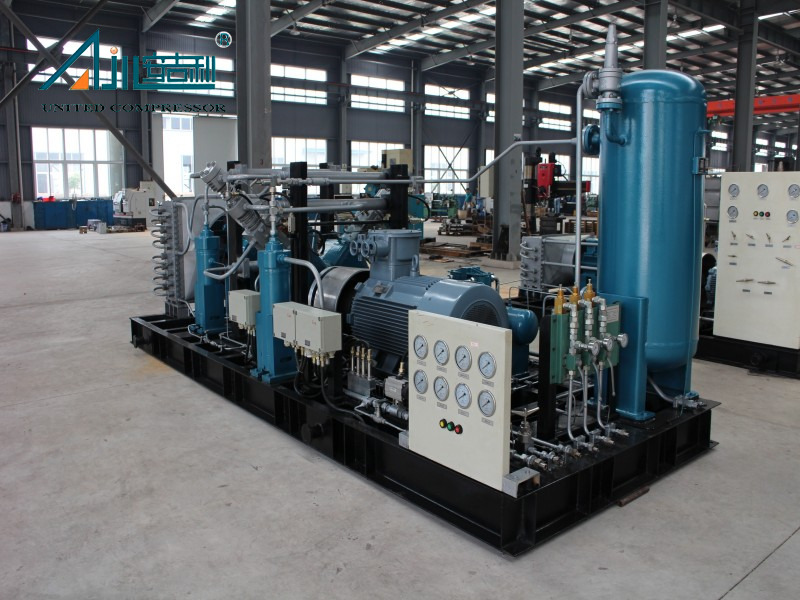

Complete pre-assembled skid unit simplifies transport and on-site installation. Size ~6500×2200×2200 mm, weight ~6.5 tons, ideal for limited-space and remote working sites.
Equipped with three exclusive patented parts for longer service life. High-strength cast iron crankcase and double middle body effectively isolate lubricant to avoid gas contamination.
Application Area
Mainly used for boosting and transporting natural gas that flows into the pipeline network It can also be used for stirring in the pharmaceutical and brewing industries, pressurized transportation of gases in the chemical industry, blow molding of bottles in the food industry, and dust removal of parts in the machine manufacturing industry.
Highlight Advantages
 |  |  |  |
| Has high efficiency, strong reliability, and high degree of automation; | Less vulnerable parts, low vibration, low noise, and easy operation and maintenance | The main and auxiliary equipment of the compressor are all installed on the sled, running smoothly and reliably. The overall sled installation is convenient for the transportation and installation of the compressor | The entire machine components are carefully designed |
Patent Certificates
 | A piston rod thread protective sleeve ZL 2017 2 1907021.7 | | A piston ring support device ZL 2018 2 0294776.2 | |
| A range piston ZL 2017 2 190177.0 for symmetrical balanced compressors | | Integrated long short double compartment ZL 2018 2 0294762.0 |
Whole Machine Description
This is a V-type water-cooled oil-free reciprocating piston compressor with 2-row 3-stage compression and modular integrated structure.
The gray cast iron crankcase comes with complete reserved ports for oil filling, draining, observation and temperature detection, with an external manual ball valve for easy oil replacement.
Built with a double middle body structure, it thoroughly isolates lubricating oil to guarantee pollution-free gas delivery. The gray cast iron/forged steel cylinder and cylinder head adopt oil-free design, with axial air valves for stable and efficient compression performance.
 |  |

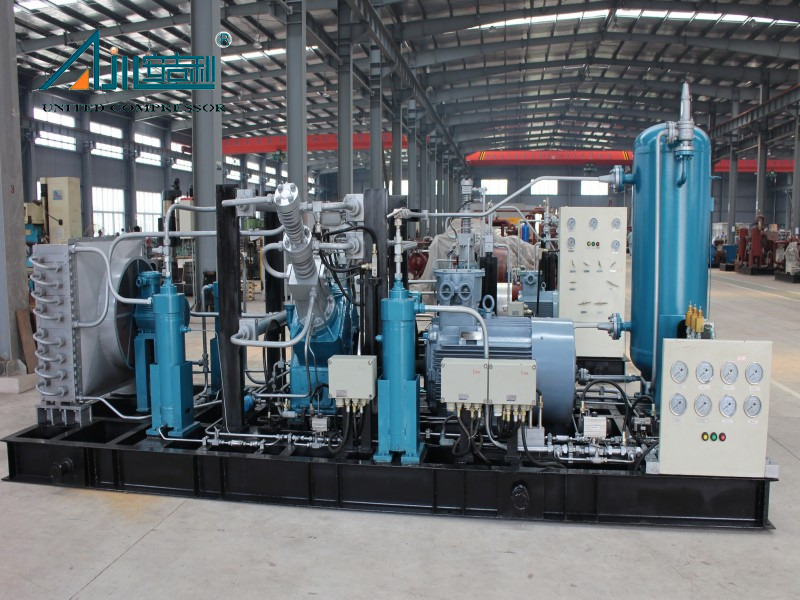

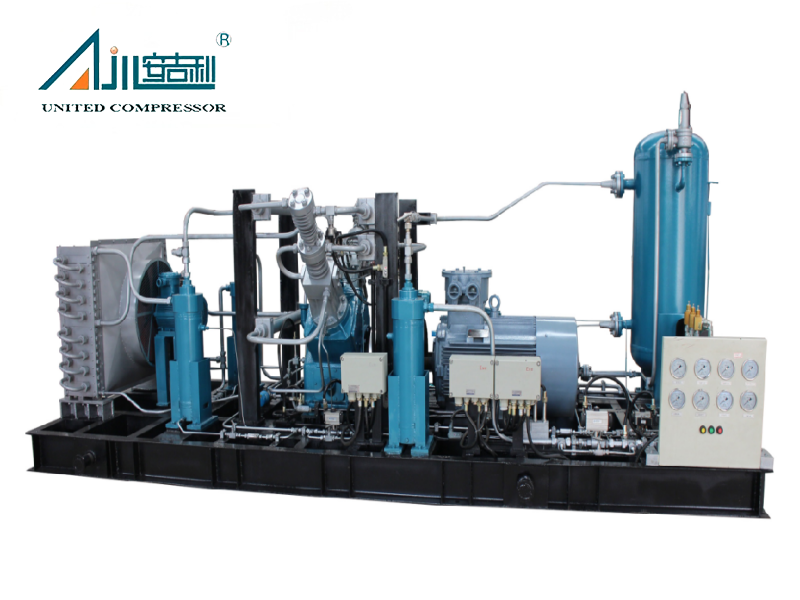

The compressor in this picture is a non-standard product. The product provides independent solutions tailored to customers' specific usage requirements (flow rate/purity/pressure, usage environment, main purpose, and customer specific requirements), from design to product customization.
Structural form: D-type/M-type/S-type/W-type/V-type/Z-type
Cooling method: water cooling/air cooling/mixed cooling
Installation form: fixed/mobile/pry mounted/cabin type
Drive mode: motor drive/diesel engine start
Transportation: sea/air/land
Packaging:
 |  |  |
| Metal cabin | Wooden box | Soundproof cabin |
Project Case
 |  |  |
| Lanzhou petrochemical company 240000 tonsyear ethylene production capacity restoration - adding butadiene and 1-butene unloading facilities project | Alibek oilfield in Southern Kazakhstan | Procurement of Molecular Sieve Dehydration, Ethylene Glycol Regeneration and Injection Device, and Fuel Gas Skid in Akimom Gas Field |
Technical Parameter
| No. | Model | Medium | Flow rate (Nm3/h) | Exhaust pressure MPa （G) | Motor power (kW) | Cooling method | Overall dimensions (mm) | Weights (kg) |
| 1 | VF（D）-0.32/(30-200)-250 | Natural gas | 1500 | 25 | 75 | Air-cooled | 5538*2350*2438 | 9.5 |
| 2 | VF(D)-0.26/(30-200)-250 | Natural gas | 1000 | 25 | 55 | 5538*2350*2438 | 9.5 | |
| 3 | ZFD-0. 1/(30-200)-250 | Natural gas | 500 | 25 | 37 | 6500*2350*2450 | 5.5 | |
| 4 | DFD-3[0.28]/(2-4)[25-200]-250 | Natural gas | 1300 | 25 | 75 | 4050*3450*2100 | 12.5 | |
| 5 | MF-4/(7-11)-250 | Natural gas | 1900-2880 | ~ | 355 | Air-cooled or water-cooled | 6250*3200*3400 | 18 |
| 6 | DF-2/(10-15)-250 | Natural gas | 1320-1920 | ~ | 250 | 6000*3200*3400 | 16 | |
| 7 | MF-3.2/(8-16)-250 | Natural gas | 1700-3260 | ~ | 355 | 6250*3200*3400 | 18 | |
| 8 | MF-2.5/(14-25)-250 | Natural gas | 2250-3900 | ~ | 355 | 6450*3200*3400 | 20 | |
| 9 | DF-1.55/(15-25)-250 | Natural gas | 1500-2400 | ~ | 280 | 600*3200*3400 | 16 | |
| 10 | DF-1.45/(20-35)-250 | Natural gas | 1800-3100 | ~ | 280 | 6050*3200*3400 | 16 | |
| 11 | MF-2/(20-30)-250 | Natural gas | 2500-3700 | ~ | 355 | 6250*3200*3400 | 20 | |
| 12 | MF-1.8/(25-40)-250 | Natural gas | 2800-4400 | ~ | 355 | 6250*3200*3400 | 18 | |
| 13 | MF-1.35/(30-45)-250 | Natural gas | 2500-3700 | ~ | 315 | 6000*3200*3400 | 18 | |
| 14 | DF-1.3/(8-16)-250 | Natural gas | 700-1320 | ~ | 160 | 6000*3200*3400 | 18 | |
| 15 | MF-1.5/(40-60)-250 | Natural gas | 3700-5500 | ~ | 355 | 6250*3200*3400 | 16 | |
| 16 | MF-1.3/(50-85)-250 | Natural gas | 3900-6700 | ~ | 355 | 6250*3200*3400 | 18 |
Project Case
 |  |  |
| Zaozhuang CNG compressor project of Chengdu Shenliang Technology Co., Ltd. | Beijing Hongke Qingneng Technology Co., Ltd. associated gas compressor for Shanxi Yan'an 60000 m3 project | Lanzhou petrochemical company 240000 tonsyear ethylene production capacity restoration - adding butadiene and 1-butene unloading facilities project |
This V-type oil-free CNG compressor fits various industries. It serves natural gas pipeline boosting, chemical pressurization, pharmaceutical/brewing stirring, food blow molding and mechanical dust removal. Its oil-free structure guarantees high gas purity.
Yes. Customizable items cover flow, pressure, structure, cooling type, installation form and driving mode to match different working conditions.
The VF-0.32/(30-200)-250 adopts air cooling as standard. Water cooling can be customized for special site environments.
