Gas composition (mol%): Hydrogen
Nominal volumetric flow rate: 25.2m3/min
Inlet pressure: 0.15~0.17MPa. G;
Inlet temperature: 70 ℃
Exhaust pressure: 1MPa. G;
Main motor power: 315kW
Overall dimensions of the machine: ~7200 × 3000 × 2000 mm
Whole machine weight: ~15T
| Quantity: | |
|---|---|
The MW-25.2/(1.5-1.7)-10 Hydrogen Compressor is designed for reliable hydrogen compression in energy, industrial, and transportation applications. Manufactured by Bengbu United Compressor, it provides stable performance for hydrogen power generation, energy storage, heating systems, and fuel cell vehicle projects.
The MW-25.2/(1.5-1.7)-10 hydrogen compressor provides a flow rate of 25.2 m³/min, with an inlet pressure of 0.15–0.17 MPa.G and discharge pressure up to 1 MPa.G. Driven by a 315 kW motor, it delivers stable and efficient hydrogen compression for continuous industrial operation.
With dimensions of 7200 × 3000 × 2000 mm and a weight of about 15T, the MW-25.2/(1.5-1.7)-10 features a water-cooled system for effective heat control and reliable long-term operation.
The MW-25.2/(1.5-1.7)-10 hydrogen compressor features optimized design, stable operation, and fewer wear parts, reducing maintenance requirements and improving service life.
The compressor is designed for low vibration and noise operation, ensuring stable performance and flexible installation in different industrial environments.
Customized options are available, including compressor structure, cooling method, installation type, drive mode, and packaging solutions to meet different application requirements.
The MW-25.2/(1.5-1.7)-10 integrates patented designs, including piston rod protection and piston ring support technologies, improving reliability and operational performance.
Highlight Advantages
 |  |  |  |
| Has high efficiency, strong reliability, and high degree of automation; | Less vulnerable parts, low vibration, low noise, and easy operation and maintenance | All main and auxiliary components are skid-mounted for easy transportation, installation, and reliable operation. | The entire machine components are carefully designed |
Patent Certificates
 | A piston rod thread protective sleeve ZL 2017 2 1907021.7 | | A piston ring support device ZL 2018 2 0294776.2 | |
| A range piston ZL 2017 2 190177.0 for symmetrical balanced compressors | | Integrated long short double compartment ZL 2018 2 0294762.0 |
Whole Machine Description

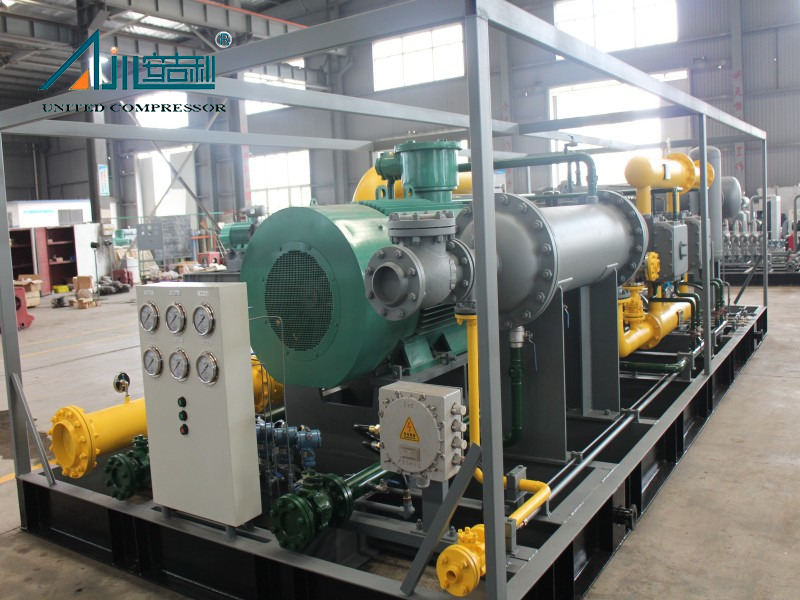

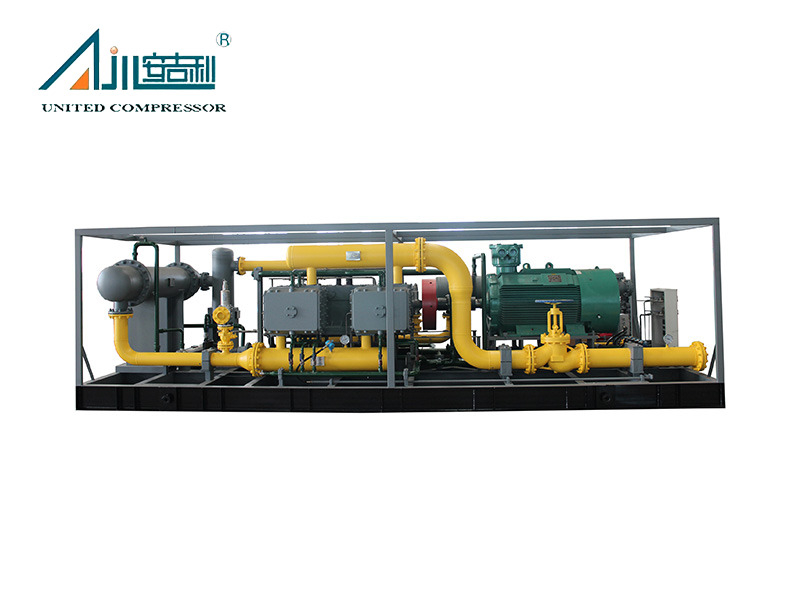

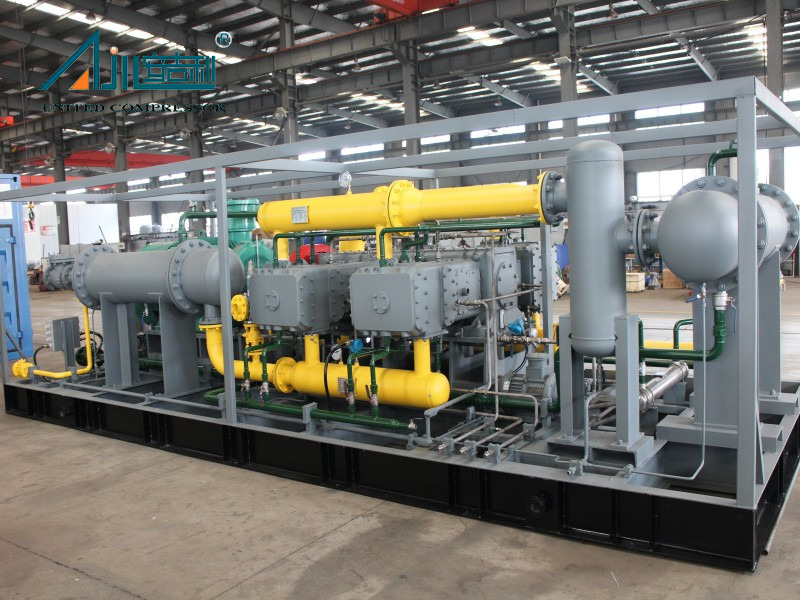

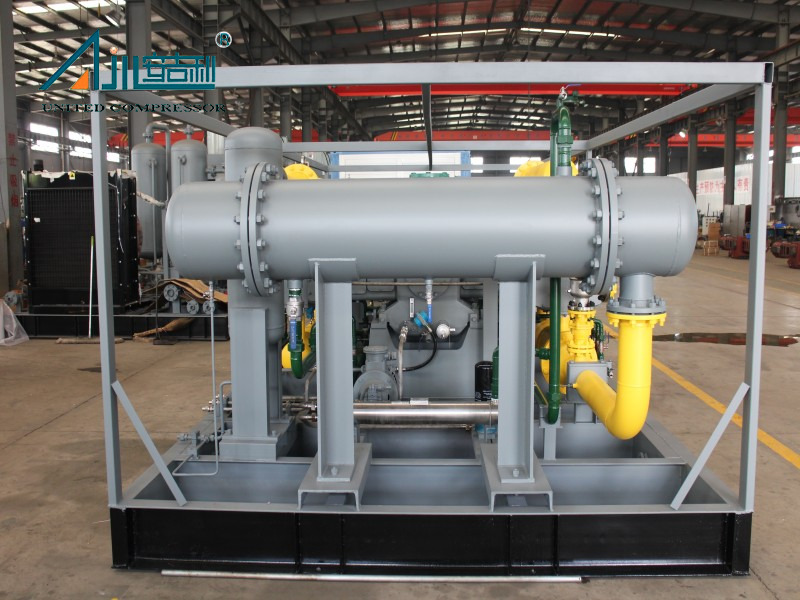

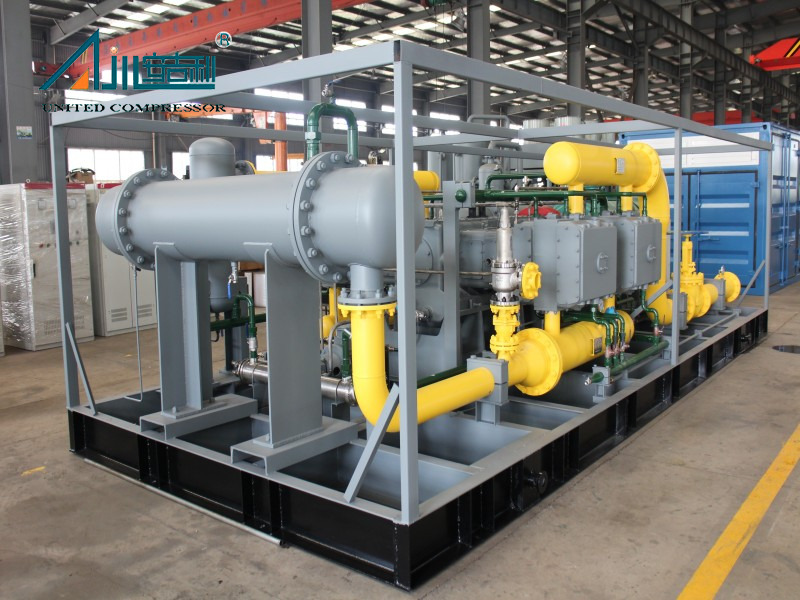

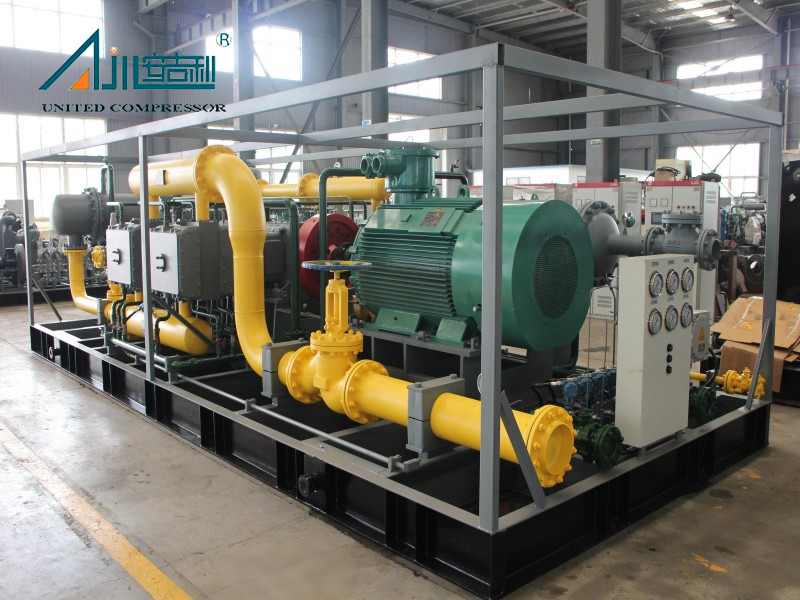

The MW-25.2/(1.5-1.7)-10 Hydrogen Compressor is a modular reciprocating piston compressor designed for hydrogen compression applications. The complete unit integrates the compressor body, motor, cooling system, lubrication system, piping, and control components into a compact structure.
Featuring a D-type balanced design, water-cooled system, oil-free lubrication, and three-stage compression, the compressor provides stable operation, clean hydrogen compression, and reliable performance for continuous industrial use.
 |  |
A customized non-standard compressor designed to meet specific requirements for flow rate, pressure, purity, and operating conditions.
Structural form: D-type/M-type/S-type/W-type/V-type/Z-type
Cooling method: water cooling/air cooling/mixed cooling
Installation form: fixed/mobile/pry mounted/cabin type
Drive mode: motor drive/diesel engine start
Transportation: sea/air/land
Packaging:
 |  |  |
| Metal cabin | Wooden box | Soundproof cabin |
Project Case
 |  |  |
| Lanzhou petrochemical company 240000 tonsyear ethylene production capacity restoration - adding butadiene and 1-butene unloading facilities project | Alibek oilfield in Southern Kazakhstan | Procurement of Molecular Sieve Dehydration, Ethylene Glycol Regeneration and Injection Device, and Fuel Gas Skid in Akimom Gas Field |
Technical Parameter
| No. | Model | Medium | Flow rate (Nm3/h) | Exhaust pressure (MPa.G) | Motor power (kW) | Cooling method | Overall dimensions (mm) | Weights (kg) | |
| 1 | DW-1.6/(8～12)-120 | Hydrogen | 800 | 12 | 160 | Water-cooled | 5800×3000×2300 | 8500 | |
| 2 | DW-1.8/15-30 | Hydrogen | 1500 | 3.0 | 75 | Water-cooled | 3200×3000×1850 | 5800 | |
| 3 | DW-6.74(3.3)/0.7(5～12)-12 | Hydrogen | 600 | 1.2 | 90 | Water-cooled | 5000×3200×2100 | 8000 | |
| 4 | DW-17.9/(4～5)-6.5 | Hydrogen | 1270 | 0.65 | 132 | Water-cooled | 3500×3000×2300 | 8000 | |
| 5 | DW-1.8/15-30 | Hydrogen | 1500 | 3.0 | 75 | Water-cooled | 3200×3000×1850 | 5800 | |
| 6 | DW-9.55/0.03-16 | Hydrogen | 515 | 1.6 | 90 | Water-cooled | 3500×3200×2500 | 6500 | |
| 7 | DW-96.5/（ 15～23 ）-（ 21~29） | Hydrogen | 4500 | 2. 1～2.9 | 185 | Water-cooled | 5000×3000×2500 | 12000 | |
| 8 | DW-48/（ 15～23 ）-（ 21~29） | Hydrogen | 2642～4500 | 2. 1～2.9 | 55 | Water-cooled | 4000×2700×2300 | 6000 | |
| 9 | D-0.57/16-200 | Hydrogen | 500 | 20 | 75 | Water-cooled | 5800×3200×2350 | 9000 | |
| 10 | ZW-0. 18/15-22 | Hydrogen | 150 | 2.2 | 11 | Water-cooled | 2200×1600×1700 | 2000 | |
The compressor is suitable for hydrogen power generation, energy storage, hydrogen heating, and fuel cell applications. It provides reliable high-purity hydrogen compression for industrial processes requiring stable high-pressure hydrogen supply.
The MW-25.2/(1.5-1.7)-10 requires routine maintenance, including lubricating oil checks, cooling system inspection, and monitoring of pressure and temperature conditions. Maintenance guidelines are provided to ensure reliable operation.
Yes. Bengbu United Compressor provides customized solutions based on flow rate, pressure, purity, application conditions, and operating environment. Options include structural design, cooling systems, and drive modes.
The compressor meets international quality and safety standards, supported by multiple patents and certifications. For detailed documentation, customers can contact the manufacturer directly for compliance reports tailored to their region or industry.
The compressor supports sea, air, and land transportation with customized packaging options for different operating conditions.
The MW-25.2/(1.5-1.7)-10 Hydrogen Compressor supports sea, air, and land transportation with customized packaging options. Designed for reliable hydrogen compression, it provides flexible configurations and stable performance for hydrogen energy applications.
