ZW-1.0/16-24 Liquefied Gas Compressor for Ammonia and LPG Applications
The ZW-1.0/16-24 Liquefied Gas Compressor is a reciprocating piston compressor developed for the transfer and recovery of low-boiling volatile gases.
Designed for liquefied gas applications, this compressor is suitable for ammonia, propane, butane, butene, and similar gas media. It is commonly used in gas delivery, storage transfer, loading and unloading, pressure boosting, and residual gas recovery processes.
The compressor provides a flow capacity of 1.0 m³/min, with an inlet pressure of 1.6 MPa.G and a discharge pressure of 2.4 MPa.G. Equipped with an 18.5kW motor, it offers stable compression performance for industrial gas handling systems.
With a compact structure of approximately 1300 × 800 × 1050 mm and a weight of around 500 kg, the ZW-1.0/16-24 is suitable for projects requiring convenient installation and efficient equipment layout.
Designed for Low-Boiling Volatile Media
The compressor is developed for liquefied gases with high volatility, including ammonia, propane, butane, and butene.
Reciprocating Piston Compression
The reciprocating piston structure provides continuous gas displacement and stable pressure increase during transfer and recovery operations.
Compact Installation Design
With an overall dimension of approximately 1300 × 800 × 1050 mm and a total weight of around 500 kg, the compressor is convenient for equipment layout and installation.
Multi-Application Capability
The compressor can be applied in different liquefied gas systems, including storage, transportation, redistribution, and residual gas recovery.
Application
The ZW-1.0/16-24 Liquefied Gas Compressor is mainly used in:
• Ammonia gas transfer systems
• LPG storage and redistribution facilities
• Propane and butane delivery systems
• Butene handling processes
• Liquefied gas loading and unloading stations
• Residual gas recovery applications
• Chemical and industrial gas processing systems
Patent Certificates
 | A piston rod thread protective sleeve ZL 2017 2 1907021.7 | | A piston ring support device ZL 2018 2 0294776.2 | |
| A range piston ZL 2017 2 190177.0 for symmetrical balanced compressors | | Integrated long short double compartment ZL 2018 2 0294762.0 |
Working Principle
The ZW-1.0/16-24 operates through a reciprocating piston compression cycle.
During the suction process, the piston movement creates a pressure difference, allowing liquefied gas vapor to enter the cylinder.
During compression, the piston reduces the cylinder volume and increases the gas pressure.
After reaching the required pressure, the compressed gas is discharged through the outlet valve and transferred to the downstream system.
This repeated cycle enables continuous gas delivery and pressure control for liquefied gas applications.
 |  |

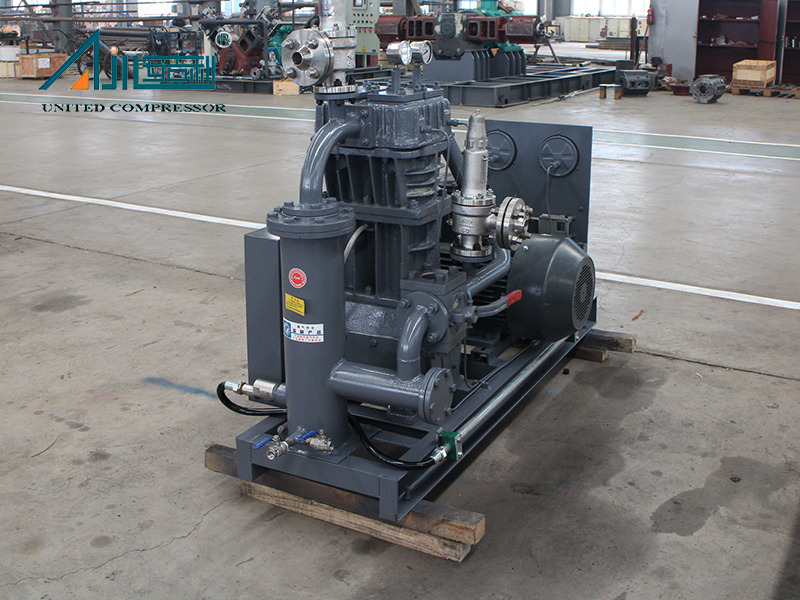

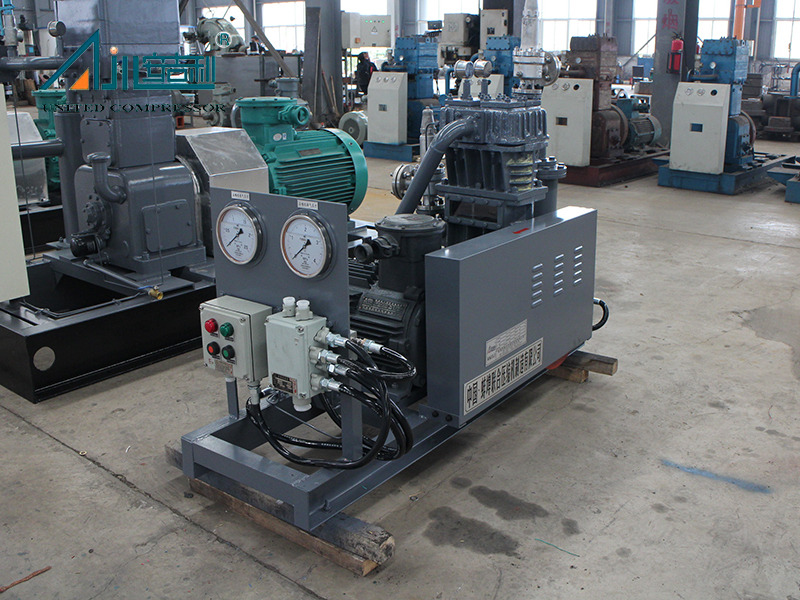

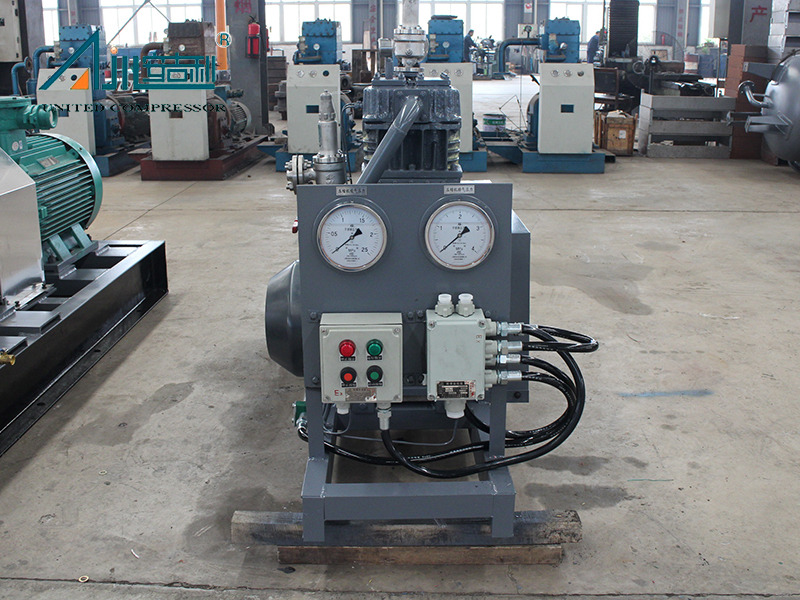

The compressor in this picture is a non-standard product. The product provides independent solutions tailored to customers' specific usage requirements (flow rate/purity/pressure, usage environment, main purpose, and customer specific requirements), from design to product customization.
Structural form: D-type/M-type/S-type/W-type/V-type/Z-type
Cooling method: water cooling/air cooling/mixed cooling
Installation form: fixed/mobile/pry mounted/cabin type
Drive mode: motor drive/diesel engine start
Transportation: sea/air/land
Packaging:
 |  |  |
| Metal cabin | Wooden box | Soundproof cabin |
Project Case
 |  |  |
| Lanzhou petrochemical company 240000 tonsyear ethylene production capacity restoration - adding butadiene and 1-butene unloading facilities project | Alibek oilfield in Southern Kazakhstan | Procurement of Molecular Sieve Dehydration, Ethylene Glycol Regeneration and Injection Device, and Fuel Gas Skid in Akimom Gas Field |
Technical Parameter
| No. | Model | Medium | Flow rate (Nm3/h) | Exhaust pressure MPa（G) | Motor power (kW) | oling meth | Overall dimensions (mm) | Weights (kg) | |
| 1 | ZW-0.8/（4.5～15）-（12.5～23） | Industrial ammonia | 0.8 | 1.25～2.3 | 15 | Air-cooled | 1650×650×1050 | 550 | |
| 2 | ZW-0.8/10-16 | Isobutane | 0.8 | 1.6 | 11 | Air-cooled | 1650×650×1150 | 450 | |
| 3 | ZW-0.8/10-16 | Liquefied gas | 0.8 | 1.6 | 11 | Air-cooled | 1750×900×1250 | 1200 | |
| 4 | ZW-0.8/16-24 | Ammonia gas | 0.8 | 2.4 | 15 | Air-cooled | 1800×950×1250 | 1300 | |
| 5 | ZW-1.0/（1～10）-（5～14） | Methylene chloride | 1.0 | 0.5～1.4 | 15 | Air-cooled | 1700×850×1050 | 600 | |
| 6 | ZW-1.0/（1～6）-（4～9） | Dimethylamine | 1.0 | 0.4～0.9 | 15 | Air-cooled | 1700×850×1050 | 600 | |
| 7 | ZW-1. 1/10-15 | Ammonia gas | 1.1 | 1.5 | 15 | Air-cooled | 1700×850×1100 | 700 | |
| 8 | ZW-1. 1/10-16 | Liquefied gas | 1.1 | 1.6 | 15 | Air-cooled | 1800×950×1250 | 1300 | |
| 9 | ZW-1. 1/16-24 | Ammonia gas | 1.1 | 2.4 | 22 | Air-cooled | 1650×850×1050 | 750 | |
| 10 | ZW-1. 1/16-24 | Ammonia gas | 1.1 | 2.4 | 22 | Air-cooled | 1850×950×1300 | 1400 | |
Project Case
 |  |  |

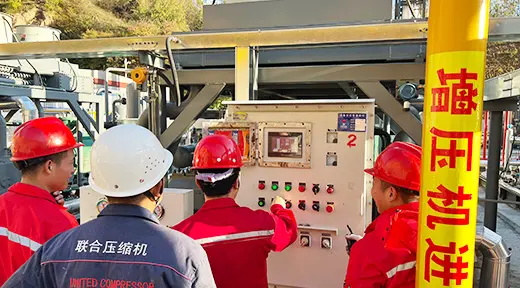

| Procurement of Molecular Sieve Dehydration, Ethylene Glycol Regeneration and Injection Device, and Fuel Gas Skid in Akimom Gas Field | Lanzhou petrochemical company 240000 tonsyear ethylene production capacity restoration - adding butadiene and 1-butene unloading facilities project | Beijing Hongke Qingneng Technology Co., Ltd. associated gas compressor for Shanxi Yan'an 60000 m3 project |
The compressor is designed for ammonia, propane, butane, butene, and other low-boiling volatile gas applications.
The standard configuration has an inlet pressure of 1.6 MPa.G and a discharge pressure of 2.4 MPa.G.
The compressor provides a flow capacity of 1.0 m³/min.
It is mainly used for liquefied gas transfer, LPG redistribution, loading and unloading, pressure boosting, and residual gas recovery.
